Upgraded 48"(1200mm) Manual Acrylic Light Box Plastic PVC Bending Machine Heater, 0.04" – 0.24"(1mm - 6mm) Thickness
ราคาต่อชิ้น
COP 3,084,884
/ชิ้น
ส่วนลดขายส่ง
จำนวน
ส่วนลด
ราคาต่อหน่วย
1
0%
COP 3,084,884
ค่าใช้จ่ายรวม
COP 3,084,884
จำนวน
/ชิ้น
1
Upgraded 48"(1200mm) Manual Acrylic Light Box Plastic PVC Bending Machine Heater, 0.04" – 0.24"(1mm - 6mm) Thickness

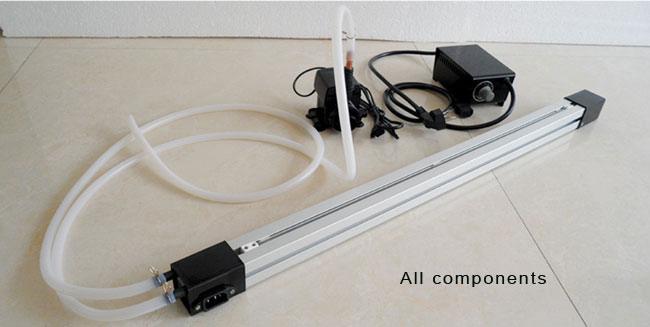

Description:
Processing Material: Acrylic, Plastic, PVC, Plexiglass.
The acrylic bending machine heater can bend all kinds of plastic sheet. If the thickness of acrylic sheet is beyond 6mm, you can use two heaters heat the top and bottom of the sheet at the same time, or you need to cut a slot on the sheet.
You can also use many acrylic bender heaters to heat more bents at the same time.
Acrylic bending machine upgrade introduction:

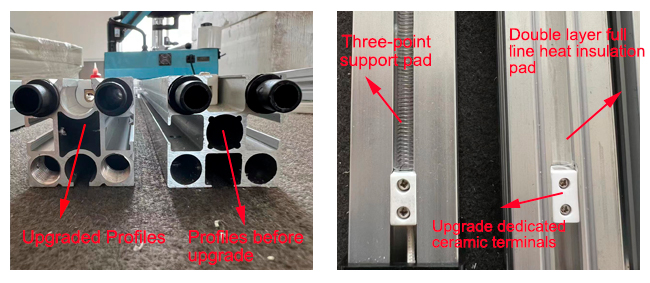

1. The main profile is upgraded to a high-strength special profile (Picture 1).
Advantages: The bending strength is twice that of the original profile, which effectively reduces the deformation probability and stone of the main profile during transportation and use.
British tube breakage rate.
2. The three-point heating tube support pad is upgraded to a "double-layer full-line heat insulation pad" (picture 2). Advantages: energy saving and high efficiency, improve the overall.
The heat conduction from the heating pipe to the main profile is double-blocked, which effectively reduces the temperature rise rate of the cooling water, and the double-layer heat insulation pad prevents.
The vibration effect is better, and the damage rate of the heating pipe is greatly reduced.

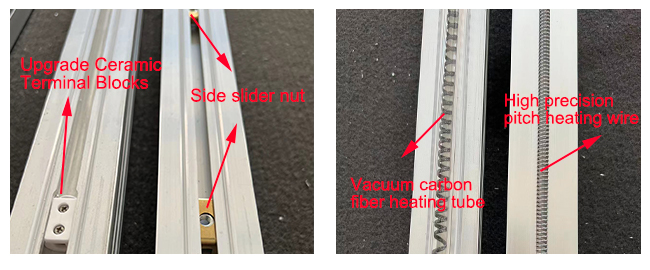

3. M5 slider nuts (picture 3) are pre-installed on both sides of the main body of the heater to facilitate the connection of "fixed distance and fixed angle brackets".
Advantages: Customers can purchase and install single-sided or double-sided fixed-distance and fixed-angle brackets according to their needs.
4. The heating wire is upgraded to a high-precision pitch heating wire (Picture 4).
Advantage: More consistent temperature at all locations along the entire heating bath.
5. Special ceramic terminals (picture 2, picture 3).
Advantages: The terminal slides smoothly in the U-groove of the main profile, which can offset part of the expansion and contraction of the heating wire when heated, and the terminal and the top surface of the main profile.
Flat, exquisite and beautiful appearance, more stable conductive connection, better heat dissipation.
Feature
• Reasonable design, small size, compact structure and beautiful appearance;
• Heat even and temperature adjustable;
• With circulating cooling water system on both sides of heating pipe;
• Power supply joint and waterpipe joint are at the same end;
• The body is made of special aluminum extrusions.
Advantage
• Portable, small occupation, low consumption and reliable operation;
• Light and practical with low cost, value-priced;
• Circulating cooling water system can make sure other parts (no heating is required) won’t get thermal deformation.
• Free plugging and unplugging, easy to storage and assembles to worktable very conveniently;
• Straight appearance, the effective heating length is 1220mm (48").
Benefit
• Low consumption, low cost;
• Can be assembled to a hot bending machine or used alone;
• Save space, light and practical;
• Can bend all kinds of plastic sheet.
Sepcification
| Model | ABM-BT-1200-PLUS |
| Maximum Bending Width | 48"(1200mm) |
| Power | 1500W |
| Power Supply | AC 100-120V/60Hz; AC 220-240V/50Hz |
| Heating Slot Width | 0.31" (8mm) |
| Heating Thickness | 0.04" – 0.24"(1mm - 6mm) |
| Heater Size | 1.8'' x 1.8'' x 58.3''(45 x 45 x 1480mm) |
| Box packing Size | 61" x 8.27" x 5.1"(1550×210×130 mm) |
| Gross Weight | 13.67lb(6.2kg) |
| Water outlet material | |
 |
 |
| The copycat are using the copper water outlet, the bronze looks really good and I think everyone think copper part will be better than others, but you should know the basic thing is the water will corrode copper and make it rusty and get holes, which will cause water leak. |
The water oulet of our acrylic bender is Nylon material, the reason we use this material is this material do not inflate during water current flow and it do not have water corrosion problems. |
| Alchrome Heating wire inside | |
 |
 |
| The copycat heating wire width is not even and its material is not pure Alchrome, if the material is not pure, that will cause part of different temperature. It cause part of Acrylic is soft and other part is still hard. It will cause second time bending or part of Acrylic crack. | The heating wire of our acrylic bender is made by screw pitch which will insure the width and have even temperature to bend acrylic sheet. |
| Thermostat | |
 |
 |
| Copycat's thermostat is common thermostat without heat dissipation base. | Thermolator of our acrylic bender is Solid-state thermostat, theirs are common thermostat We also design 4 stands below this thermostat to make sure has better heat dissipation. |
|
ABM-BT series acrylic bending machine heater has wide applications, such as lighting LED channel letter making, sign making, display cabinet, supermarket shelves, curtain wall, large light box, acrylic plates and plastic plates making, etc. |
| ABM-BT series acrylic bending machine heater is core part of bending machine, it soft the acrylic, you need to bend acrylic by hands. It is space saving, low cost. | ABM-SB series acrylic bending machine bends acrylic by electric, with super high precision, but it is expensive relatively. |
