lt can be equipped with a card slot safety lock and a body safety lock, a fully enclosed shell design, a metal movement, safe and reliable,and excellent dust-proof effect.
Product Specifications:
Basic parameters
- Color sublimation monochrome thermal transfer
- Edge - to - Edge Printing
- Standard 300x300dpi resolution
- Customizable 300X600dpi or 300×1200dpi resolution
- Memory: 256M
Printing Speed
- Monochrome printing: 4.8 S/Card
- Color printing: 20 S/Card
Card Support
- Card thickness: 0.3-2.0mm
- Printable size: CR-80 (53.98mmX85.60mm)
- Engraved card material: pvc or PvC composite card
Card in and Card out
- Hopper card CapacityStandard 100 sheets (0.76mm)
- Front Stacker Capacity: 50 (0.76mm)
- Rear Stacker Capacity : 50(of 0.76 mm)
Security System
- Kensington anti-theft lock hole
- Can be equipped with a safety lockinto the card slot
- Can be equipped with a safety lockon the printer cover
Optional Module
- Contact lC reader module
- RFID contactless smart card reader module
- MS magnetic stripe reading and writing module
- Support free combination
Product Features
- With the function of detecting the card emptyin the card slot
- lt has the function of detecting the full card ofthe front output box
- Support connection to database printingPhotographic printing effect
- User-friendly modular design
- Front and back two-way card in and out
- Used card recycling function and card outputretention function
Ribbon Specification
ln order to maximize the print quality and extendthe service life for the printer head to keep theprinter with reliability work. Please use the designatedspecial ribbon.
- YMCKO Full Color: 240 Cards/Roll
- YMCKO Half Color: 400 Cards/Roll
- KO Black: 500 Cards/Roll
- K Black:1000 Cards/Roll
- Golden: 1000 Cards/Roll
- Silver: 1000 Cards/Roll
- White: 1000 Cards/Roll
- Red: 1000 Cards/Roll
- Blue: 1000 Cards/Roll

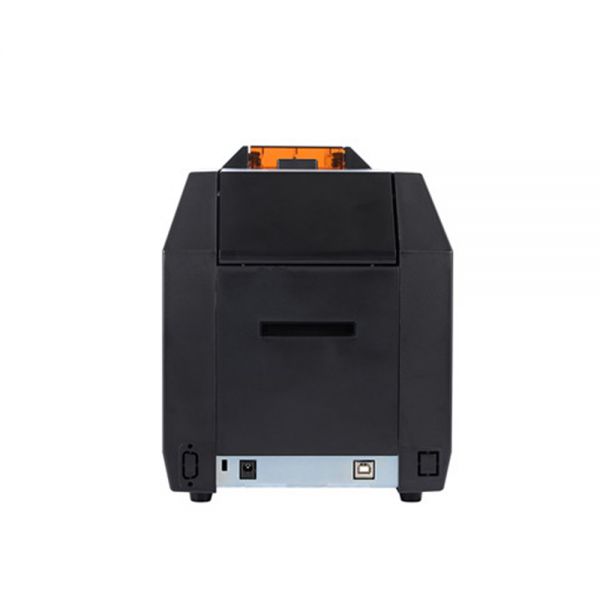

lnterface
- 24V/2.5A power adapter
- USB 2.0 interface
- Ethernet interface (optional)
- RS232 interface (optional)

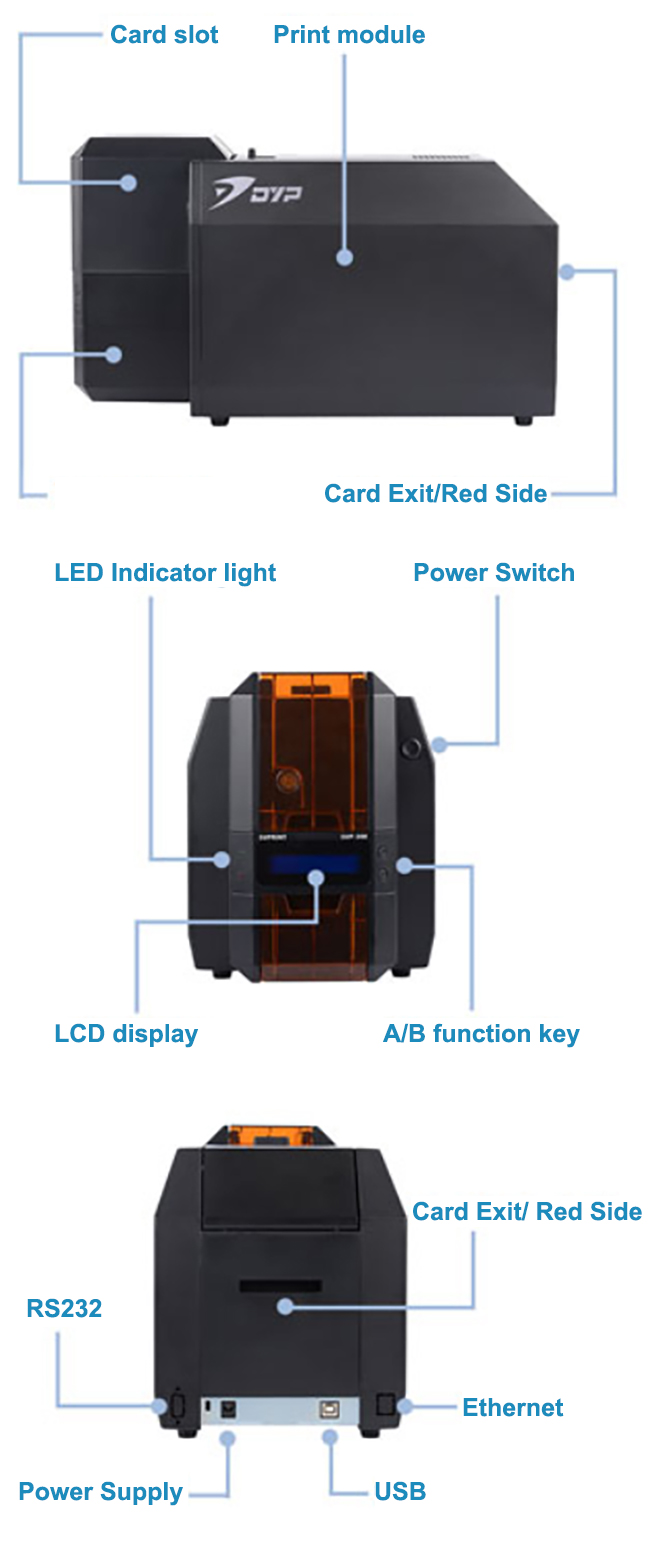

Panel
- 2 Line LCD Display
- 2 LED indicators (Red and Green Light)
- 2 Operation Buttons
Software and Driver
- Compatible with Windows (32/64 bit):xP SP3, vista, W7, W8,W10
- Compatible with Android and Linux systems
- SUP print driver (including parameter setting anddevice debugging function)
- CC++C#VAVA secondary development exampleand development kit
Certification and Patents
- CCC, CE, KC, FCC certification
- 15 unique national patents for appearance, utilitymodel and invention
Operating Environment
- Minimum/maximum operating temperature: 15°C/30°C(59°F/86°F)
- Temperature: 20%~65% non-condensing
- Minimum/maximum storage temperature: -5C/+70°℃ (23°F/158°F)
- Storage temperature: 20%~70% non-condensing
- Operating ventilation: natural wind

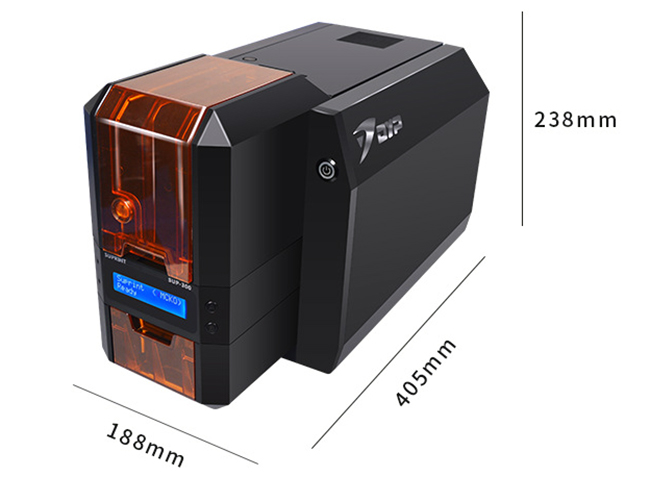

Dimensions and Weight
- Machine size: 405mmX(L)X 188(W) x 238mm (H)
- Net weight: 6Kg
Warranty
- Printer warranty for 1 years
- Printer Head warranty:
1 year or 100,000 times whichever comes first
Application:
Certification:
