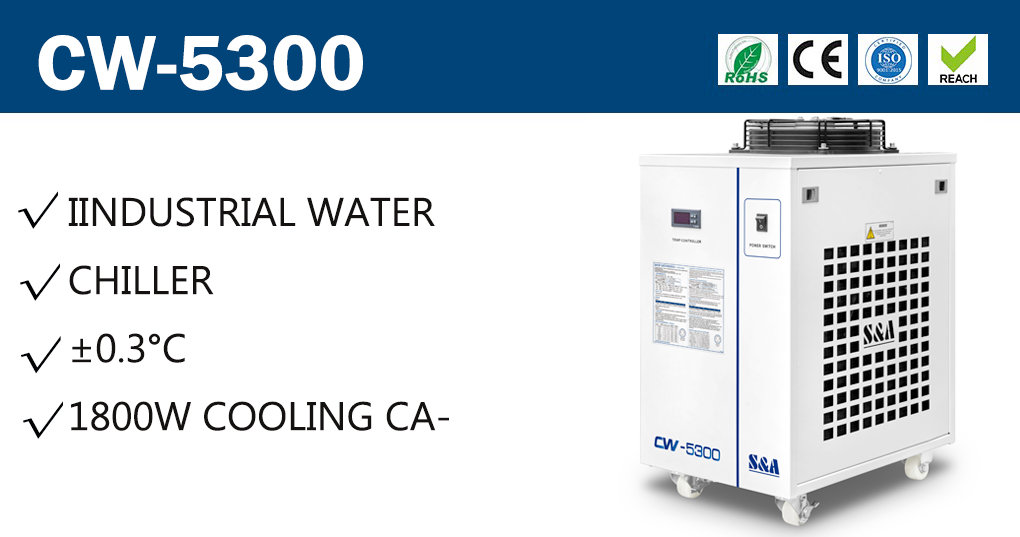

S&A CW-5300AN Industrial Water Chiller (AC220V 50HZ)(Cooling 75W Semiconductor, 18KW CNC Spindle or Welding Machine, 1.09HP)
ราคาต่อชิ้น
COP 3,853,900
/ชิ้น
ส่วนลดขายส่ง
จำนวน
ส่วนลด
ราคาต่อหน่วย
1
0%
COP 3,853,900
ค่าใช้จ่ายรวม
COP 3,853,900
จำนวน
/ชิ้น
1
Description:
S&A CW-5300 series is high-precision compression refrigeration small water chiller,with intelligent temperature control,completed configuration,perfect protection and alarm system. S&A industrial water chillers are popular for its 2 temperature control modes as constant temperature and intelligent temperature control. Under intelligent mode, the water temperature is adjusted according to ambient temperature. With that 1 key solution, customers no longer need to worry about the water temperature adjustment of seasonal changes.
Features:
• 1800W cooling capacity; optional environmental refrigerant;
• ±0.3°C precisely temperature control;
• The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;
• Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
• Multiple power specifications; CE approval; RoHS approval;
• Long working life and simple operation;
• Optional heater and water filter;
• High-precision compression refrigeration water chiller, with intelligent temperature control, completed configuration, perfect protection and alarm system.
Tips:
Make sure the refrigerant is filled before running the chiller.
Refrigerant is forbidden by express company, so we could not put it into the package.You can buy it locally and fill it out.
If the compressor of this chiller has not been filled with refrigerant.
Please make sure it has been filled correctly according to the Filling Requirements paper put in the accessories box before running the chiller.
| Model | CW-5300ANTY |
| Voltage | AC 1P 220~240V, 50Hz |
| Frequency | 50Hz |
| Current | 2.3~7.3A |
| Machine power | 1.3kW |
| Compressor Power | 0.88kW, 1.18HP |
| Capacity | 8188Btu/h |
| 2.4kW | |
| 2063Kcal/h | |
| Refrigerant | R-410a |
| Refrigeration Charge | 610g |
| Pecision | ±0.5℃ |
| Reducer | Capillary |
| Protection | Overcurrent protection for compressor, flow alarm, over temperature alarm |
| Pump Power | 0.37KW |
| Tank Capacity | 10L |
| Inlet and outlet | Rp1/2" |
| Pump pressure | 2.7bar |
| Max. flow | 75L/min |
| Net Weight | 44Kgs(97lb) |
| Gross Weight | 52Kgs(114.6lb) |
| Product Dimension | 23.2" x 15" x 29" (590 x 380 x 740mm) |
| Package Dimension | 26" x 19" x 36.2" (66 x 48 x 92cm) |
The water level indicator has 3 color areas - yellow, green and red.
Yellow area - high water level.
Green area - normal water level.
Red area - low water level.
Cooling fan of famous brand installed.
Adopt SAN JU cooling fan with high quality and low failure rate.
Customized dust gauze available and easy to take apart.
CHILLER APPLICATION
Package:
