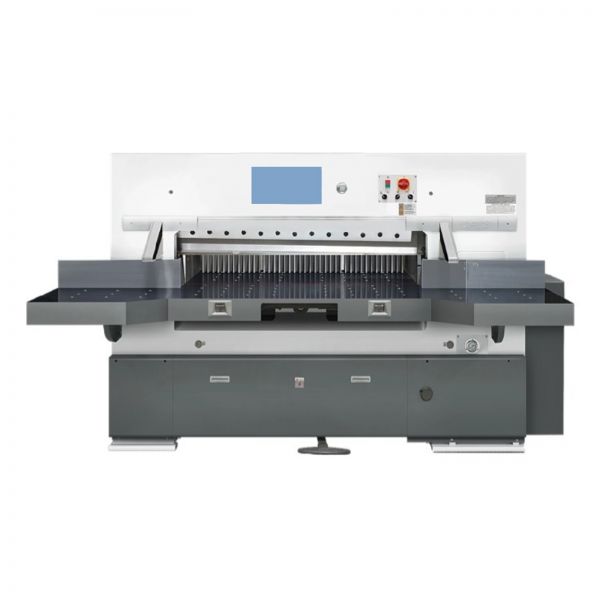

Automatic Hydraulic Paper Cardboard Guillotine Cutter Machine
ราคาต่อชิ้น
COP 99,454,471
/ชิ้น
ส่วนลดขายส่ง
จำนวน
ส่วนลด
ราคาต่อหน่วย
1
0%
COP 99,454,471
ค่าใช้จ่ายรวม
COP 99,454,471
จำนวน
/ชิ้น
1
Automatic Hydraulic Paper Cardboard Guillotine Cutter Machine
Features:

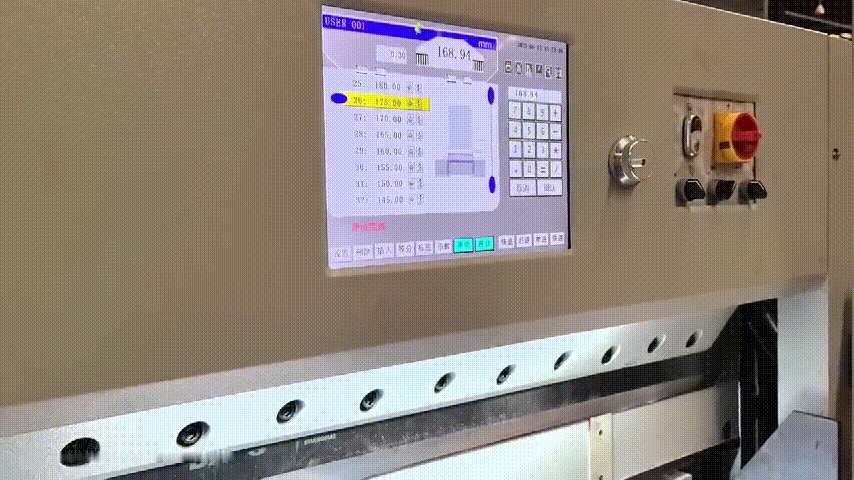

- Uses 15 inch color touch LCD computer control system form Taiwan,with a capacity of 1,000,000 programs and over 50 self -diagnosing functions.
- Self-diagnosis displays cause of problem and solution.
- The interface color can be changed at the operator’s discretion.
- All major languages are available at the touch of a button.
- Display precision is 0.01mm,the system’s mechanical accuracy is 0.01mm,backguage speed is 15m/min.
Specification:
| Model | M15 |
| Cutting width | 1370mm |
| Cutting length | 1370mm |
| The cutting height | 160mm |
| Front extension of bench | 700mm |
| Table height | 930mm |
| The motor power | 5.5kw |
| Maximum paper pressure | 5000dan |
| Cutting speed | 42times/min |
| The net weight | 4500kg |
| Overall dimensions | 2.5*3.2*1.7m |
| Packing size | 2.8*1.62*1.2m |
Details:
 |

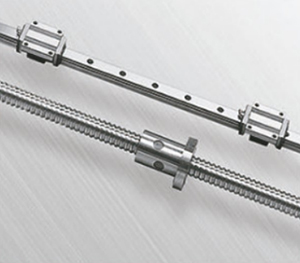

Ball lead screw and linear guide-rail makes paper impeller run smooth,low noise,accurate positioning,enhance the cutting precision and speed greatly,prolong the service lift of paper cutter. |
 |

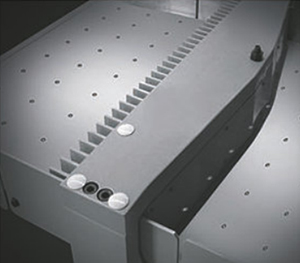

The working tables are all chrome-plated and equipped with air balls which makes paper-pushing easily and rusty-proof. Large side working table(1000X800mm) is optional. |
 |

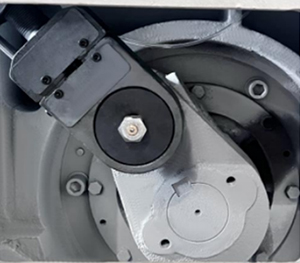

Safety device for knife bed,overloading protect-ion for cutting,automatic return safety device |
 |

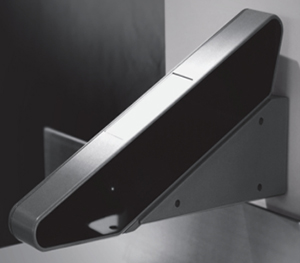

To provide infrared grating ciruit protection,in line with european ce standards. |
 |

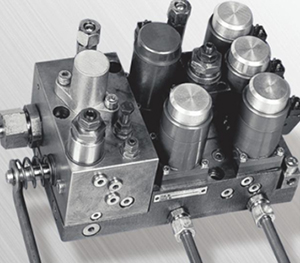

Imported hydraulic components are adopted in hydraulic system, the pressure can be adjusted,The paper is pressed twice by pressure-increased system. |
 |

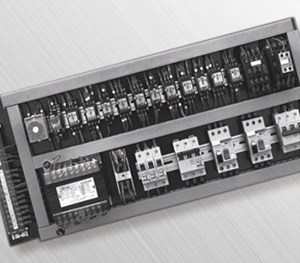

Imported electric components LG、OMRON、siemens. |
