Anywells AWC7813 LCD touch screen Laser Controller System for 1390 CO2 Laser Cutting/Engraving System

Item #: SIT-CS-LC-AWC7813

สินค้าหมด

Anywells AWC7813 LCD touch screen Laser Controller System for 1390 CO2 Laser Cutting/Engraving System

ราคาต่อชิ้น

COP 1,938,816

/ชิ้น

ส่วนลดขายส่ง

จำนวน

ส่วนลด

ราคาต่อหน่วย

COP 1,938,816

ค่าใช้จ่ายรวม

COP 1,938,816

จำนวน

/ชิ้น

รายละเอียดสินค้า

รายละเอียด

Anywells AWC7813 LCD touch screen Laser Controller System for 1390 CO2 Laser Cutting/Engraving System

Features:

Ø 5-inch TFT LCD touch screen, intuitive and simple operation interface

Ø Using a new 32-bit high-speed DSP to make the system run faster and more stable;

Ø Product is easy to operate, saving time after training;

Ø Support U disk offline file preview function, real-time display of laser head movement track;

Ø Device parameters can be set completely away from the PC;

Ø All optocouplers isolate external electromagnetic interference, and the system works stably and reliably;

Ø support multi-languauge;

Ø Support USB2.0 high-speed interface, U disk read and write files are more stable, can identify various brands of U disk;

Ø Support network communication and USB communication, the transmission speed is faster and more stable;

Ø Support Z-axis auto focus, Y-axis dual drive function;

Ø Support full blowing, work blowing, layer blowing

Ø Intelligent diagnosis system self-fault;

Ø One key to switch the way of manually moving the axis;

Ø A variety of humanized positioning modes and return modes, which are convenient for customers with different habits to operate the machine;

Ø One-key continuous cutting, convenient to continue cutting after the processing file is interrupted in any way;

Ø When adjusting the cutting effect, there are few setting parameters, and the user is easy to hold.

Specification:

Power	DC24V,3A
Input	6roads
Output	8roads
Control axis	X Y Z
Control head	Single
Support laser	CO2laser tube，RF tube
Control Laser energy	0-100% 0.1%Continuously adjustable
Accuracy	±0.01mm
Support graphics format	G-code,AI,SVG,PDF,DXF,PLT,DST,DSB,UD5,BMP,JIF,JPG,PNG etc
Support software	LaserCAD, lightburn (Plugin support CORELDRAW,AUTOCAD, Adobe Illustrator)
Support system	Windows(Window XP、Vista、Win7、Win8、Win10 )operating system

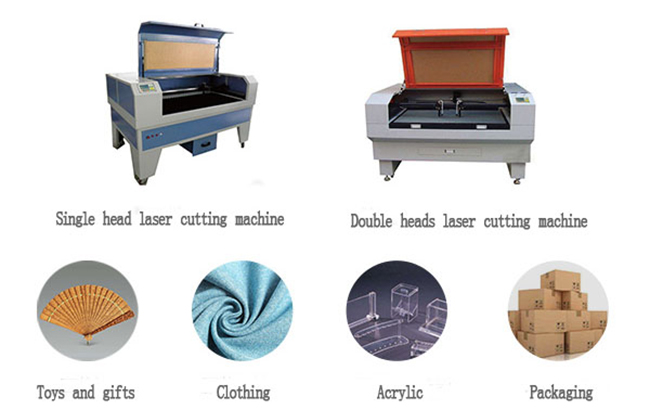

Application:
