3W / 5W UV Laser Marking Machine for Metal And Non-Metal Marking
3W
ราคาต่อชิ้น
COP 31,455,386
/set
ส่วนลดขายส่ง
จำนวน
ส่วนลด
ราคาต่อหน่วย
1
0%
COP 31,455,386
ตัวเลือก
Por Favor Eliga el Tipo Por Favor Eliga el Tipo
ค่าใช้จ่ายรวม
COP 31,455,386
จำนวน
/set
1

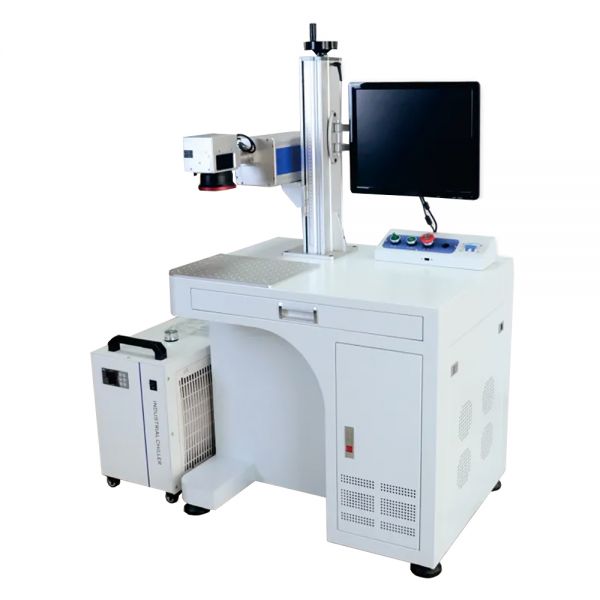

3W / 5W UV Laser Marking Machine for Metal And Non-Metal Marking
Purple light UV laser marking machine takes 355nm pumped purple light laser device as the light source to gain smaller diameter of focusing spot and fine marking effect. The metal absorb purple light higher than infrared and therefore more suitable for marking on metal and glass materials compared with infrared pump machine. Narrower pulse width of laser makes a shorter time of processing on materials, thus the materials avoid being deformed or burnt due to thermal. With smaller heat affected area and more beautiful marking effect, our products can meet customers' higher marking requirements.

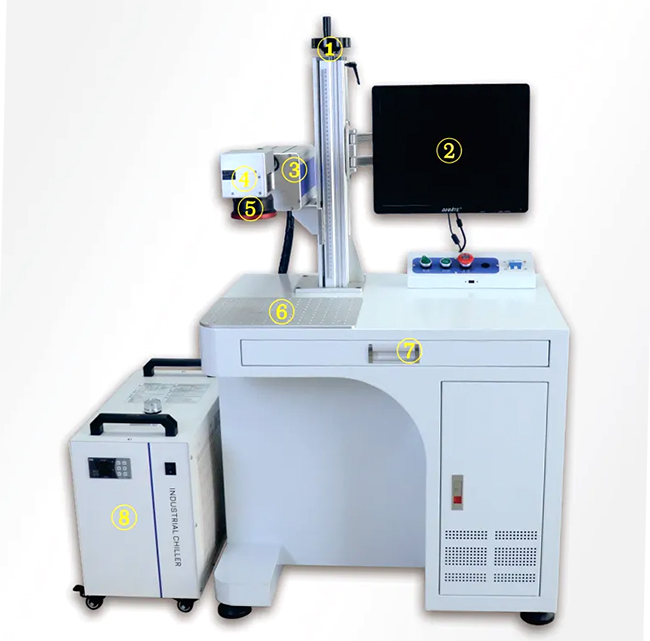

Product Details:
1.Column lifting control
2.Display screen(not included)
3.The light path
4.High speed galvanometer
5.Field Mirror
6.Positioning plate
7.Keyboard drawer
8.Water-cooled cooling box
Features of 355 nm UV wavelength lasers
The absorption rate is incredibly high for a variety of materials, which allows marking and processing to be performed with minimal heat stress.
Clearer, more detailed High-Contrast Marking
UV laser marking machine is capable of generating greater contrast for more appealing aesthetics and improved readability on 2D codes.
How to choose a marking machine?
| UV Laser | Fiber Laser | CO2 Laser | |
| Metal | √ | √ | - |
| Electronic components | √ | √ | - |
| Glass | √ | - | - |
| Crystal | √ | - | - |
| Rubber | √ | - | - |
| Plastic | √ | √ | - |
| Wood | - | - | √ |
| Leather | √ | - | √ |
| Towel | - | - | √ |
Application:
Mainly used in the high-end market of fine processing, medicine, cosmetics, wire and cable and other polymer packaging bottle surface marking, the effect is very fine, marking cleaning firm, better than ink inkjet code and pollution-free; flexible PCB board marking, scratching; silicon wafer micro-hole, blind hole processing; LCD liquid crystal glass two-dimensional code marking; Standards, glass surface perforation, metal surface coating marking, plastic buttons, electronic components, gifts, communications equipment, building materials and so on.
