Automatic CNC Channel Letter Bender-All In One for Aluminum, SS, Copper, Iron
Features:
- Using manipulator alternate feeding mechanism,to ensure the stability of the feeding process effectively.The material clamp adopts structural casting, While improving the feeding grip, avoid scratching the material.
- Double-blade alternate bending structure, high forming degree and strong stability.
- Automatic adjustment of cutting depth for planer system, easy to operate.

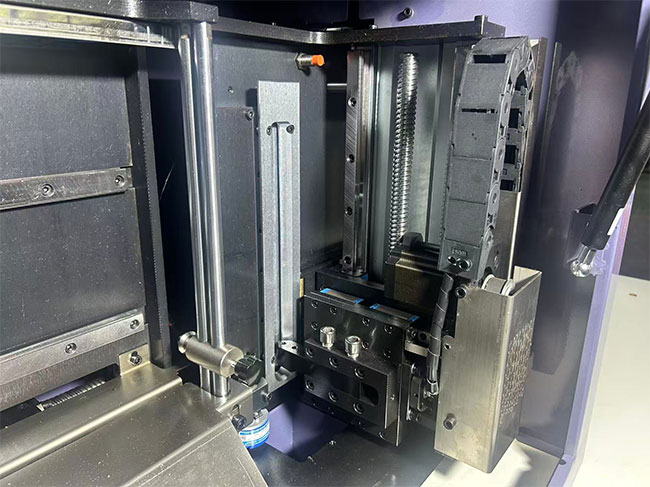

- Ball screw and double Square rail four sliders positioning for transmission, more powerful, more stable cutting.
- High power servo control system, high precision, fast speed, high torque, improve working efficiency.
- Independent material rack, to ensure the stability of equipment feeding.
- Full chrome plating for machine, Wear-resistant and corrosion-resistant.
- Software can switch between two slotting system freely, simple interface, easy to learn and operate.


Specification:
| Material Width |
20-220mm |
| Application Materials |
Stainiess steel, galvanized, sheet,iron, aluminum coil etc. flat metal |
| Min.Bending Radius |
R≥5mm |
| Materials Thickness |
0.3-1.2mm |
| Total Power |
2000W |
| Accuracy |
0.2mm/M |
| Peak feeding Torque |
>8Nm |
| Peak Slotting Torque |
>80Nm |
| Peak Bending Torque |
>250Nm |
| Machine Size |
2600cm*800cm*1750mm |
| Net Weight |
400KG |
| Power Supply |
AC220V |
| Air Pressure |
0.4-0.8mpa |
