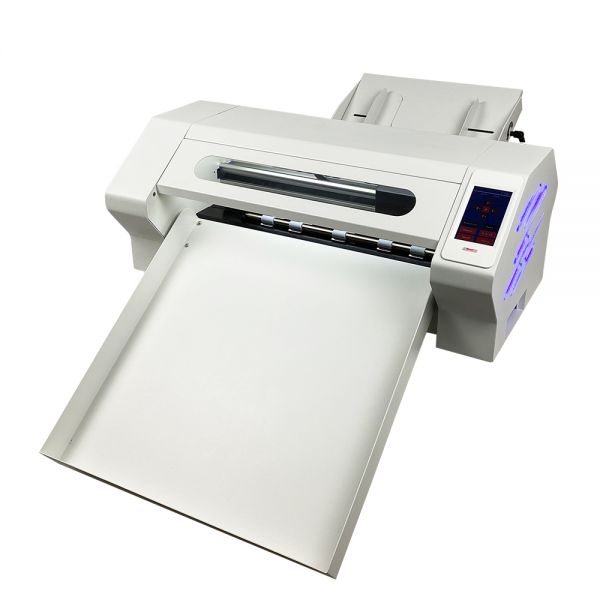

Z3 Servo Motor Automatic Feeding Sheet Label Cutter

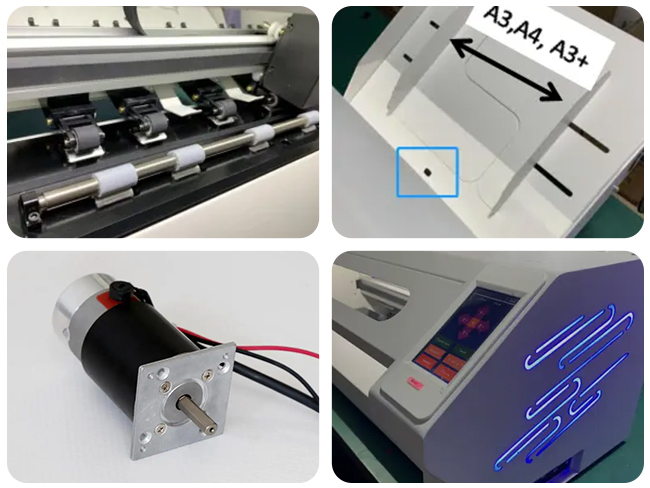

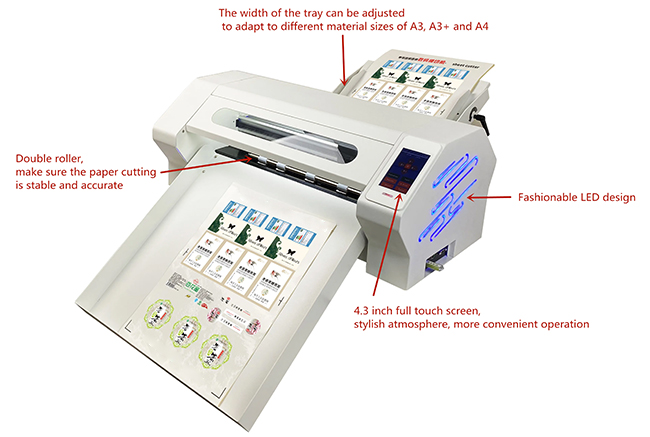

Feature:
1.Automatic feeding sheet and continuous cutting sheet
2.Automatic contour cutting with high precision for cutting any shape label design
3.Work offline with U disk, no need connected with computer
4.More faster cutting speed , save time and labour
5.Full Metal machine body,solid and pratical workmanship
6.The newest ARM processor smooth surface and accurate cutting
7.Big power motor,faster speed,working noise lower than 50db
8.Auto paper feeding system,maximum continuous cutting 100pcs
9.AAS automatic contour cutting,various materials can be scan
10.Automatic paper feeding system ensure continuous multi-sheet cutting
11.Servo motor cutting speed is faster, cutting precision is higher, and working sound is smaller.
Description:
Servo motor automatic feeding sheet and continuous cutting sheet label cutting plotter
Specification:
| Media way | Automatic paper feeding |
| Mainboard | 32-bit ARM7 CPU,128Mb high-speed cache memory |
| Control panel | 4.3 inch full touch screen |
| Driver | High speed,big power servo motor |
| Maximum cutting area | 483*329mm |
| Maximum cutting speed | 1000mm/s |
| Cutting force | 10-1000g(digital adjustment) |
| Mechanical precision | 0.025mm |
| Repeatable precision | <±0.025mm |
| Software | Signmaster |
| Type of plotter pen | All types diameter 11.4mm plotter pen |
| Plotter instruction | Compatible DM/PL,HP/GL |
| Interface | USB/U disk/Serial port/Wifi |
| Power supply | AC220V,50Hz |
| Power consumption | <80W |
| Knife | Imported hardness alloy steel blade |
| Operating environment | Temperature: 5-35°C Relative humidity: 30%-70% |
| Package size | 820*720*380mm |
| Gross weight | 34kg |
Applicaion:
Suitable for all kinds of self-adhesive stickers,Copperplate paper(300g),paper cards.

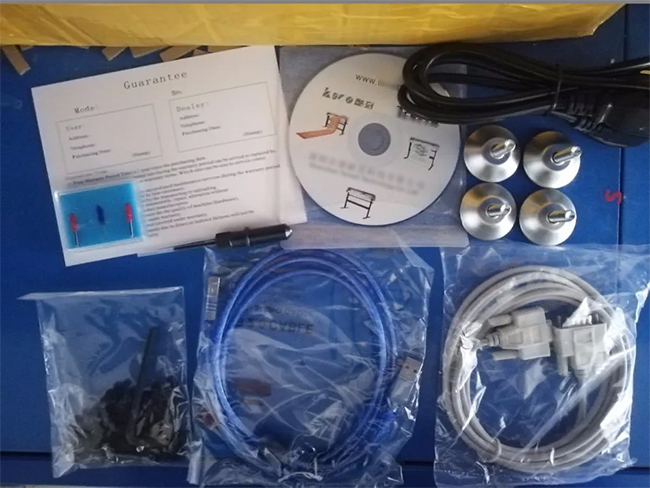

Package:
1*Power line
1*Pen
1*Serial cable
1*Stand
1*USB cable
1*CD
3*Blades
1*Warranty card
Certificate:

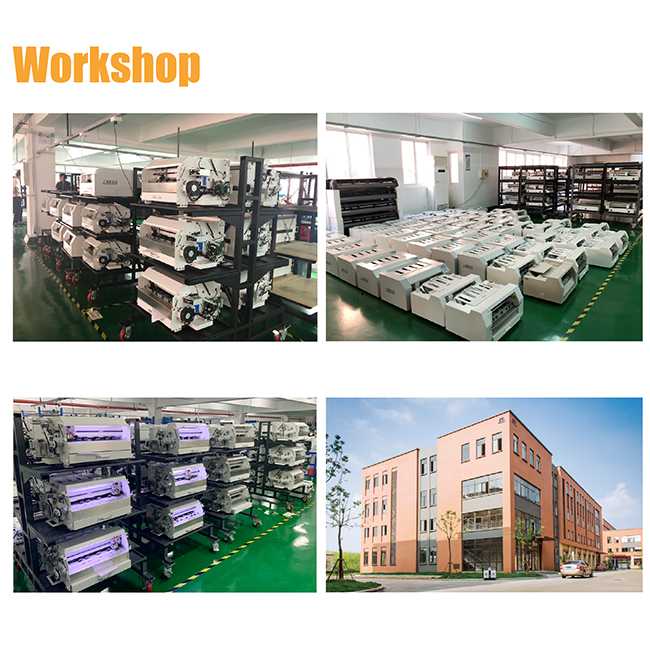

Process:
