YT1812 600W Laser Flat Mold Cutting Machine

Applications:
SIT-YT1812-600W laser tube cutting machine is mainly for cutting various die board in color print industry, electronic products, and other light industry, sheet metal industry such as carbon steel, sheet, stainless steel sheet, aluminum alloy sheet; acrylic material, plastic material, and another non-metal sheet.

Machine Consist:

Product name	Picture

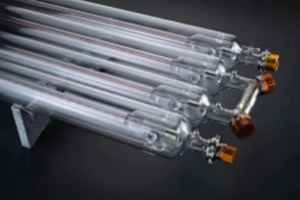

600W laser tube

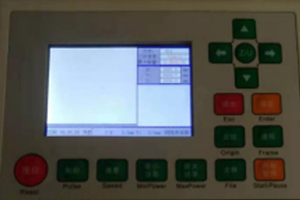

CNC Control system

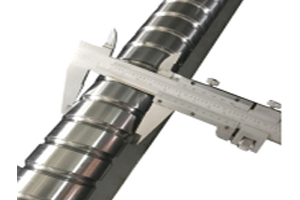

30mm Ball screw TAIWAN HIWIN

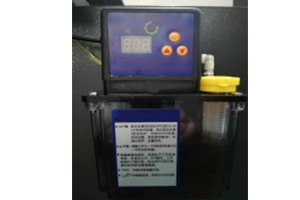

Automatic refueling system

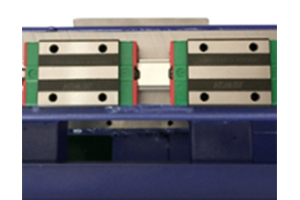

Linear guide TAIWAN HIWIN

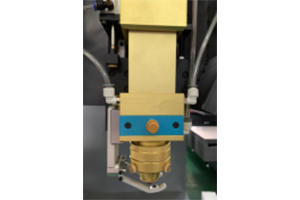

Laser head

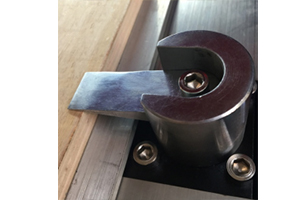

Auto Clamp

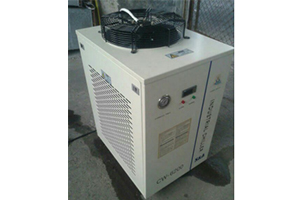

Water chiller system JZ-6200 L0.7mW0.6mH1m Weight: 85kgs.

Technical Parameters:

Model No.	SIT-YT1812-600W
Power	600W
The table style	Gantry construction with fixed cutting head
Laser source	laser tube
X-axis travel-length	1200mm
Y-axis travel-length	1800mm
Cutting speed	18 mm die board 40-50m/H	2mm stainless steel 60m/H
Re-Positioning Precision	≤0.02mm
Cutting width kerf	0.45mm, 0.71mm, 1.05mm, 1.07mm
Transmission system	Ball screw & Linear guide (TAIWAN)
Driving system	Japanese technology
Optical system	US program
Overall dimensions (LWH)	460023001800mm
Gross Weight	2000kg
Laser cutting thickness	1-25mm（plywood, acrylic board, rubber, pvc board, leather, MDF board)
Metal cutting thickness	Carbon steel/Iron steel: 4mm Stainless steel :2 mm

Consumption:

Total rated Power	Electricity consumption	400W laser tube
5KW	5degree/H	3000 r/set
