Tabletop Precise 50.8 x 61cm 80W LED UV Exposure Unit
US Warehouse
Precio unitario
COP 2.526.175
/set
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1
0%
COP 2.526.175
Opciones
Por Favor Eliga el Tipo Por Favor Eliga el Tipo
Costo total
COP 2.526.175
Cantidad
/set
1
High efficiency 20" x 24" UV LED Exposure unit Screen Printing Equipment
Parameter:

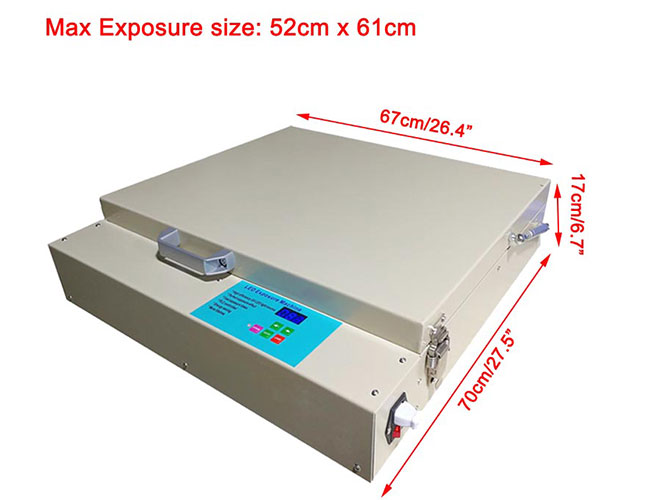

Max.exposing area/Max screen size: 20.4" x 24"(52 x 61 cm)
The depth of the unit:1.6"(4 cm)
Voltage (single phase ): 220V or 110V

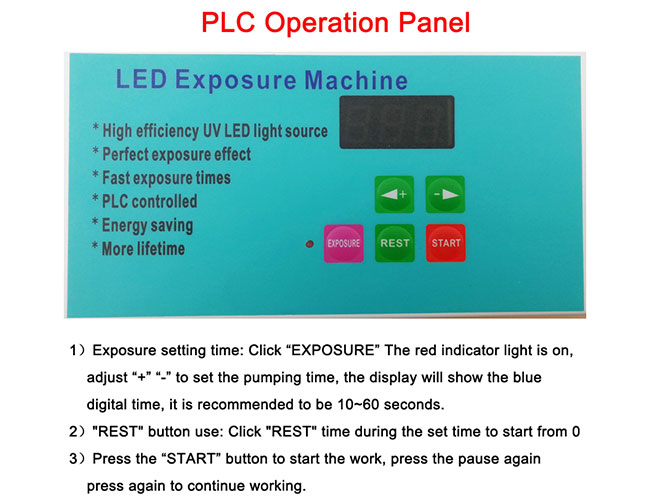

PLC controlled panel
Light source: LED ultraviolet light source
Exposure time: 40-70 seconds
Time control: 0-999s
Power of lamps: 80W (8x10w UV LED-light)
wavelength: 395NM
Angle of diffusion: 120
Distance between strips and glass:3.5"/90mm
Net Weight: 30kg
Application:
The LED exposure unit is used in the filed of plate-making such as pad plate, screen plate,
hot stamper plate,resin plate.when you put the film onto the plate into UV LED exposure machine, start it,the emulsion on the plate will appear a unseen imagine.this is important process on all plate-making technology.
Feature:
Adopting high efficiency UV LED light source,which save 50% electricity than ordinary model.
PLC controlled panel, very easy to operate.
Automatic memory function for working as original seting next time
Perfect exposure effect because of LED light.
Fast exposure time,about 40-70 seconds.
Energy saving and environment friendly.
Stable exposure quality,more lifetime.

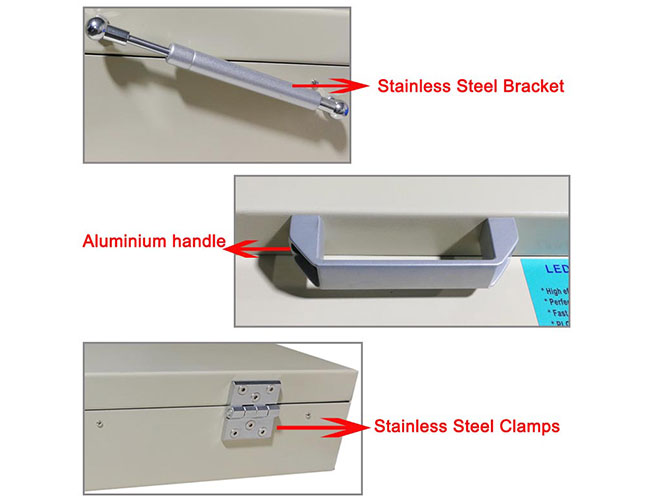

Durable and beautiful with steel coat.

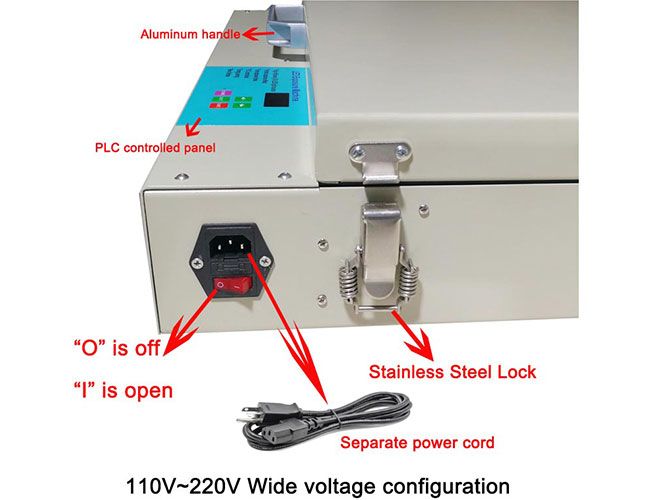

Outside connecting power plug,safety and convenience.
Easy to transport,LED light is not fragile in delivery.
Details:

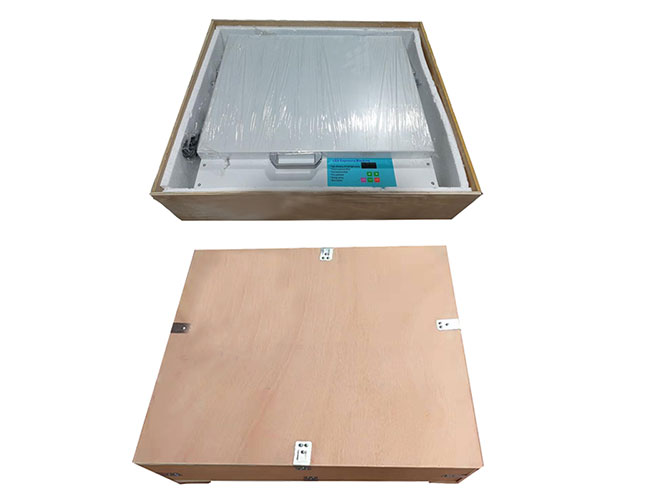

Package:
Packing size:30 x 29.5 x 9.5 inch /77 x 75 x 24 cm
Gross weight:70.4 lb /32 kg
Screen printing solution:
