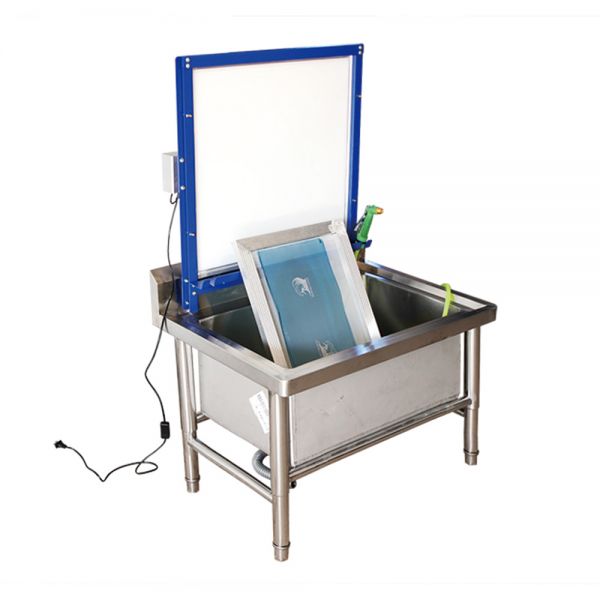

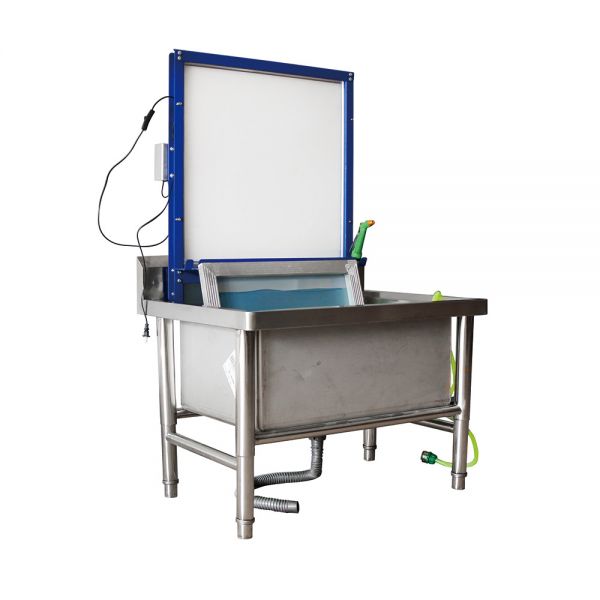

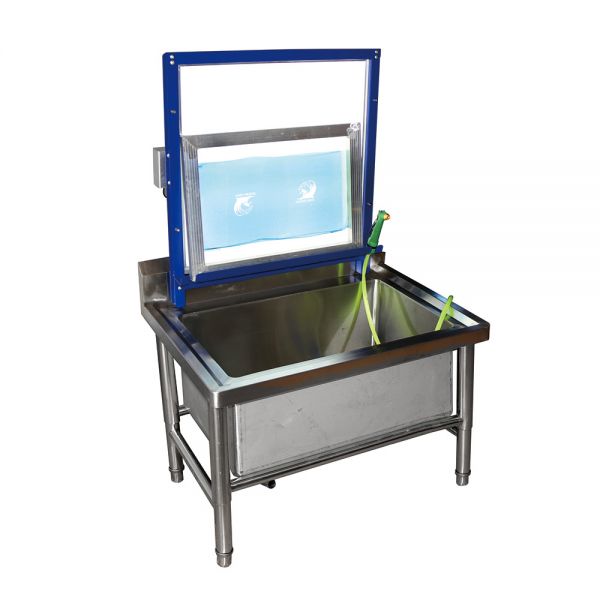

Floor Type Stainless Steel Screen Printing Wash Tank Washout Booth with Backlight
This washing plate tank is mainly used for washing and cleaning screen printing plate. It is equipped with LED backlight check lamp,and users can check screen plate washing quality at any time.
Features:

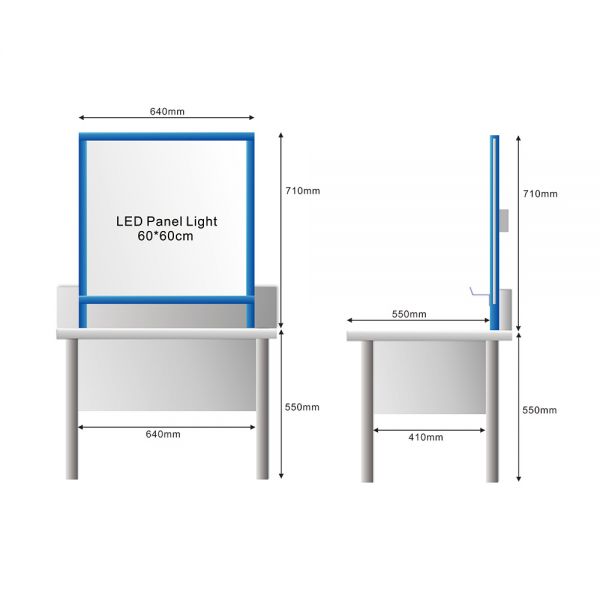

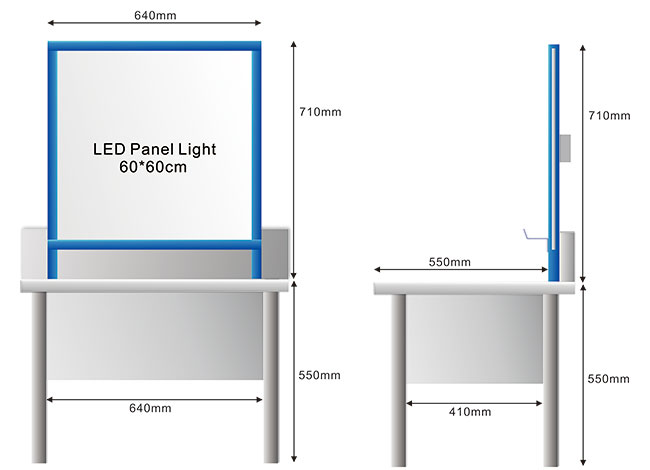

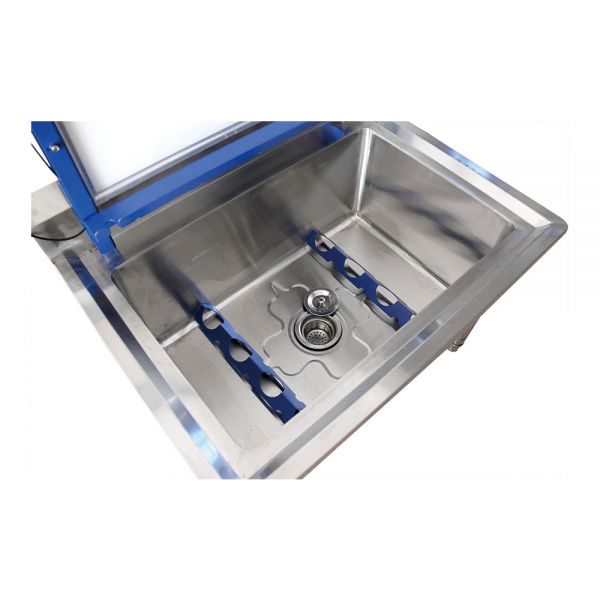

1.The tank is made of all stainless steel, with a stainless steel leaking bucket and a downpipe. The width of the tank is 25.6"/65cm.16" /41 cm long from front to back; Holding water at a height of 11.8"/30 cm; It can be used for washing various screen frames with the outside diameter within 25.6"/65 cm .

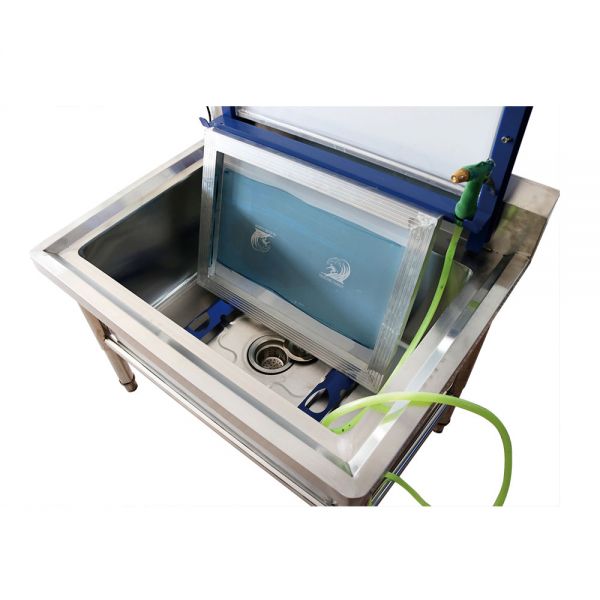

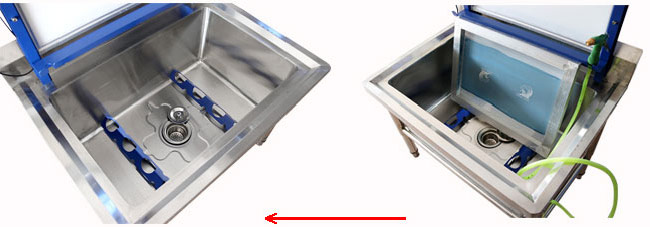

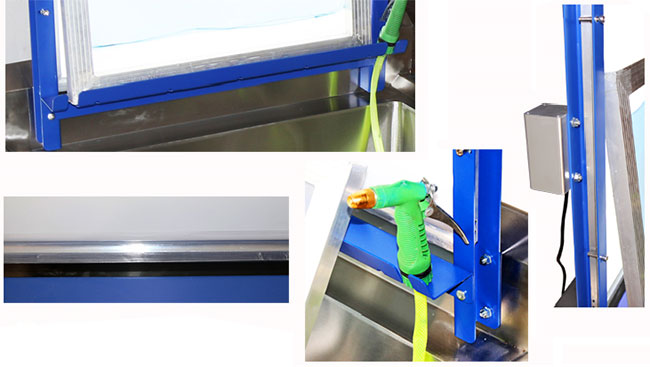

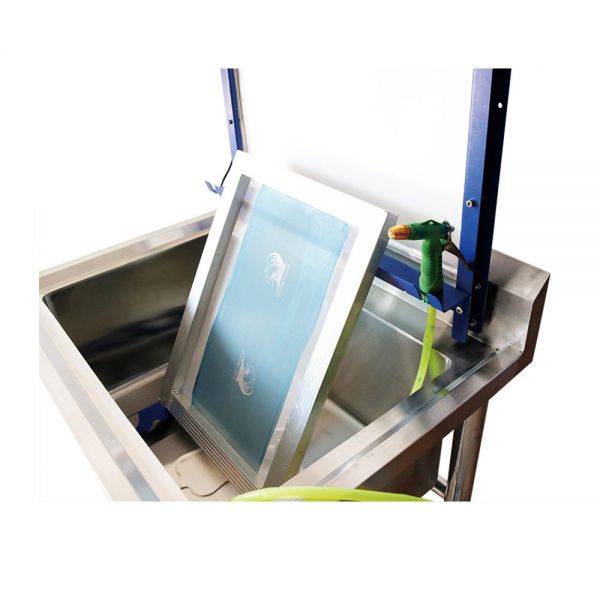

2.The tank funnel is equipped with filtering bowl, sealing cover and downpipe; The water tank is equipped with a baffle frame rack, screen frames can be placed in each card slot of the baffle frame rack according to the size of the screen frame .to flush the screen plate at the most appropriate angle; The lower part of the baffle frame rack has a water guide to ensure that there is no water in the tank.
3.The cloth can be pasted directly between the two lamp holders, to prevent the splash to the back.

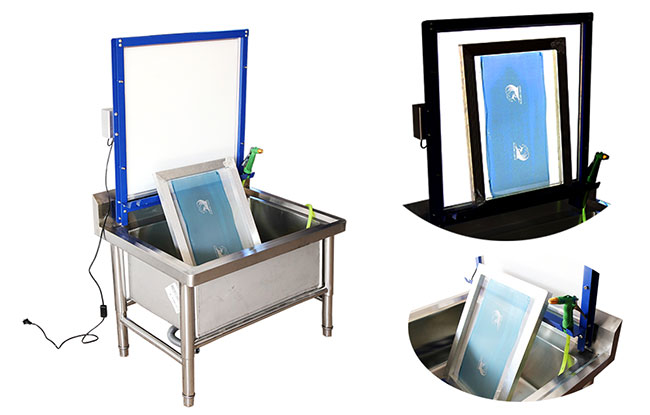

4.Screen plate inspection lamp adopts 23.6" x 23.6"(60 x 60 cm) LED panel lamp with 28W power; The power supply can be installed on both sides as required, and the power switch is installed on the power cord; Check the additional screen plate baffle under the lamp, the screen plate can be placed on the baffle board for inspection.
5.This wash tank is equipped with 1 wash gun.
Package:
Gross weight:85.8 lb /39 kg
Packing size:25 x 20 x 33 inch /64 x 51 x 84 cm
