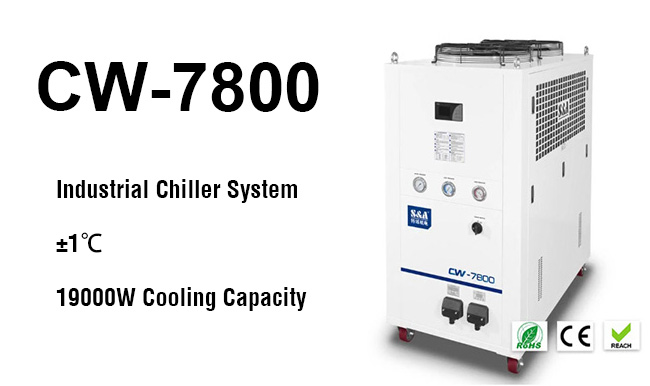

S&A CW-7800FN High power industrial chiller system can satisfy demanding cooling requirement for CO2 laser cutting system up to 800W
Precio unitario
COP 35.028.477
/set
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1
12%
COP 35.028.477
Costo total
COP 39.805.088
COP 35.028.477
Cantidad
/set
1
Description:
S&A CW-7800 remote control series is high-precision compression refrigeration water chiller, available for remote control,with intelligent temperature control, completed configuration, perfect protection and alarm system. S&A industrial water chillers are popular for its 2 temperature control modes as constant temperature and intelligent temperature control. Under intelligent mode, the water temperature is adjusted according to ambient temperature. With that 1 key solution, customers no longer need to worry about the water temperature adjustment of seasonal changes.
Features:
• 19KW cooling capacity; optional environmental refrigerant.
• ±1℃ precisely temperature control.
• Available for 200 meters remote control to avoid heat quantity interfering; with various setting and error display functions.
• Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm, phase sequence protection and anti-freezing function.
• Multiple power specifications; CE approval; RoHS approval.
• Long working life and simple operation.
• Optional heater and water filter.
• High-precision compression refrigeration water chiller, with intelligent temperature control, completed configuration, perfect protection and alarm system.
| Model |
CW-7800FN |
|
Power Supply |
AC 3P 380V, 60Hz |
|
Current |
4.4~19A |
|
Compressor Power |
7.05kW |
|
9.59HP |
|
|
Machine power |
8.45kW |
|
Refrigerating Capacity |
71652Btu/h |
|
21KW |
|
|
18056Kcal/h |
|
|
Refrigerant |
R-407C |
|
Refrigerant Charge |
4900g |
|
Precision |
±1℃ |
|
Tank Capacity |
140L |
|
Reducer |
Thermostatic expansion valve |
|
Pump Power |
1.1KW |
|
Maximum Flow |
116L/min |
|
Maximum Pumping Lift |
58M |
|
Inlet and Outlet |
Rp1" |
|
Net Weight |
415Kgs(914.9lb) |
|
Gross Weight |
550kg |
|
Product Dimension |
61" x 32.3" x 70.1" (1550 x 820 x 1780mm) |
|
Package Dimension |
65" x 41.3" x 78" (1650 x 1050 x 1980mm) |
Details:

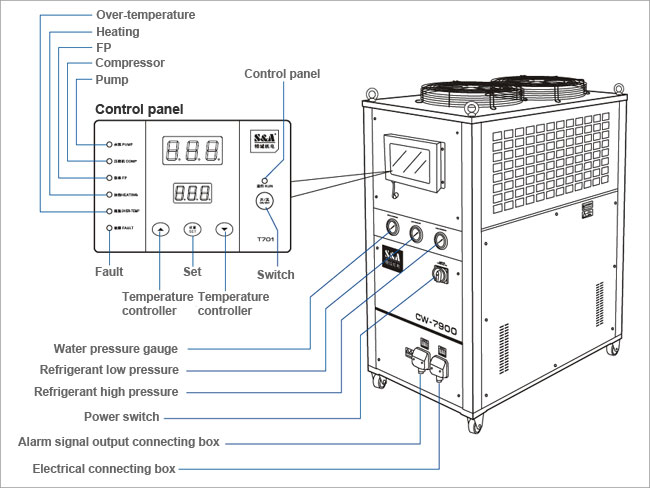

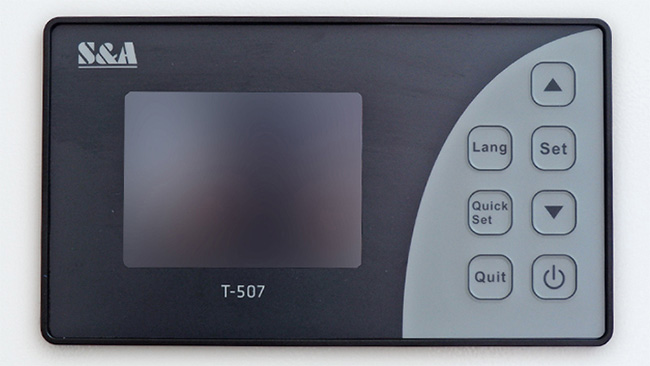

Intelligent temperature controller
The temperature controller offers high precision temperature control of ±1°C and two user-adjustable temperature control modes - constant temperature mode and intelligent control mode.

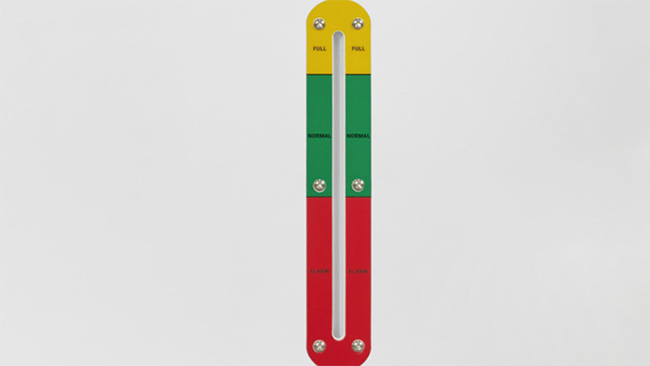

Easy-to-read water level indicator
The water level indicator has 3 color areas - yellow, green and red.
Yellow area - high water level.
Green area - normal water level.
Red area - low water level.

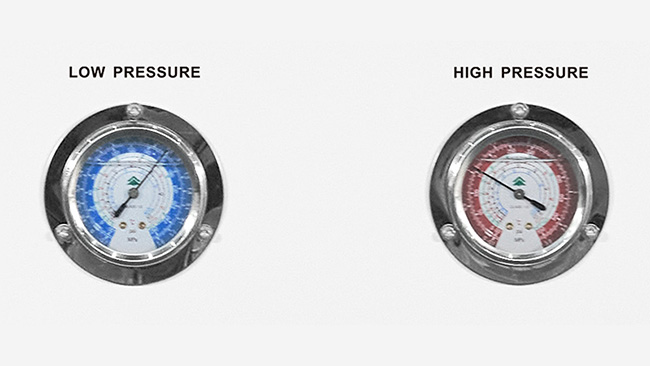

Refrigerant high & low pressure gauges
These two gauges help monitor the real-time refrigerant pressure to have a better understanding of the real-time condensing temperature.
