Name: 2.6m Eco Solvent Printer with 2 Epson I3200E Printheads
SKU: LEGACY-CO-31295
Price: 41779838 COP
Availability: OutOfStock

¡Feliz Año Nuevo Chino!

Nuestra oficina estará cerrada del 1 al 8 de febrero y reabrirá el 9 de febrero.

Inicio

Equipos para Publicidad

Impresoras de cama plana y suministros

Plotter de Gran Formato

2.6m Eco Solvent Printer with 2 Epson I3200E Printheads

Item #: SIT-POLAR-2500A

Agotado

2.6m Eco Solvent Printer with 2 Epson I3200E Printheads

i3200-E1

Precio unitario

COP 41.779.838

/set

Descuentos por volumen

Cantidad

Descuento

Precio por unidad

COP 41.779.838

Opciones

Por Favor Eliga el Tipo Por Favor Eliga el Tipo

Costo total

COP 41.779.838

Cantidad

/set

Detalles del producto

Descripción

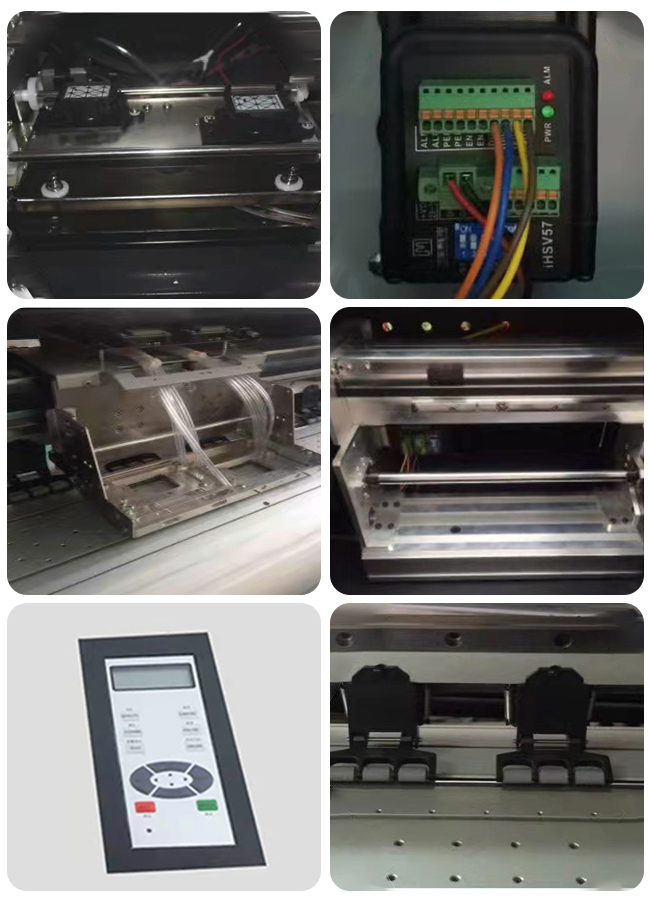

Polar 2.6m Printer (2pc XP600/DX7/I3200E1)

Print head: Epson XP600/DX7/I3200E1
Motor: server motor reading device,quality assurance,high clarity and stability.

Guide system: Taiwan's HIWIN silent THK high definition, noiseless.

Cleaning: Cleaning: Postion-lift cleaning ink station, one-step cleaning.

Feed-in and Feed-out : front and back standard with feed-in and feed-out system.
Drying: Front and back platform heating,external with up and down dual drying stystem, fully meet the fast speed printing.

Exterior: Industrial design, stable working, left and right clamshell, convenient maintenance.
Transfer: Cable printing interface, one computer can be linked to multi equipments.
Resolution:1440dpi

Specification:

Model		YD2600
Printhead		2pc XP600	2pc DX7	2pc i3200E1
Prin speed	Draft mode	30m²	35m²	40m²
	Production	20m²	25m²	30m²
	Quality mode	14m²	20m²	25m²
Maximum print width		2.6m
Color		CMYK
Compatible ink		ECO-solvent ink/ Water-based ink/ Sublimation ink etc.
Printing media	Water-based	PP/ Backlit film/ Photo paper/ Movable self-adhesive vinyl/ Pictorial cloth
	Eco-solvent	Car sticker/ Lamp cloth/ Face film/ Coated banner/ Flag cloth
	Printing	Thermal transfer paper/ Pure cotton
	Special	Wallpaper/ Canvas/ Chinese art paper/ Grid cloth
Printing resolution(dpi)		1440dpi
Cleaning of printhead		Automatic
Heating system		Front.back
Drying system	Infrared	Optional
	Fan	Equipped
Auto media take-up system		Equipped
PIatform suction contro		Equipped
Lifting system		Unequipped
Working environment(°C)		15~30
RIP software		Maintop
Operating system		WinXP / Win7
Voltage		AC220V50-60HZ
Power(W)		800
Package size(mm)		3500x840×670
Weight(kg)		300士5%
Printer size(mm)		3412X455×1300
Printer weight(kg)		240士5%

Install the tripod:

Component Names:
1.Main Body
2.Paper Feeding System
3.Dryer
4.Iron Legs
5.Crossbeam
6.Support Fixing Plate
7.Leg Frame
8.Paper Collecting System

Leg Frame Installation:
1.Install the left and right base feet at the bottom ends of the left and right iron legs, and secure them using 8 inner hex bolts (M5×10). Attach the casters with brakes to the left and right base feet using 16 inner hex bolts (M5×10).
Note: Tighten in the direction of the arrow, as shown in the diagram.

2.Install the tie rods and crossbeam between them and secure with 22 inner hex bolts (M5×10), as shown in the diagram.

3.Fix the support fixing plate to the left and right iron legs and the left and right base feet using 6 inner hex bolts (M5×10).

Then, secure both ends of the support fixing plate using 4 inner hex bolts (M6×25).

Place the assembled paper collection motor module and the paper collecting module onto the aluminum tube.

Then secure them using 2 straight-knurled handles (M5×25) to the left and right support parts, as shown in the diagram.

4.Attach the fan support components to the left and right iron legs using 8 inner hex bolts (M5×10).

Then fix the assembled dryer onto the support using 8 inner hex bolts (M4×10), as shown in the diagram.

5.Fix the support fixing plate to the left and right iron legs and the base feet using 6 inner hex bolts (M5×10).

Then secure both ends of the support fixing plate using 4 inner hex bolts (M6×25).

Place the assembled paper feeding module onto the aluminum tube.

Then secure it using 2 straight-knurled handles (M5×25) to the left and right support parts, as shown in the diagram.

6.After completing the steps above, mount the main body onto the leg frame. Align the circular holes and secure using 4 inner hex bolts (M5×10) (tighten in the direction shown by the arrow), as shown in the diagram.

For all the outdoor advertising prints on light box,bill board,high way,vehicle,buildings.
