P4.8 Outdoor Led Display
Precio unitario
COP 4.042.338
/sq.m
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1+
0%
COP 4.042.338
Costo total
COP 4.042.338
Cantidad
/sq.m
1
Impulsa tu creatividad y tu producción!
Precio unitario
COP 4.042.338
/sq.m
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1+
0%
COP 4.042.338
Costo total
COP 4.042.338
Cantidad
/sq.m
1
Fetaure:

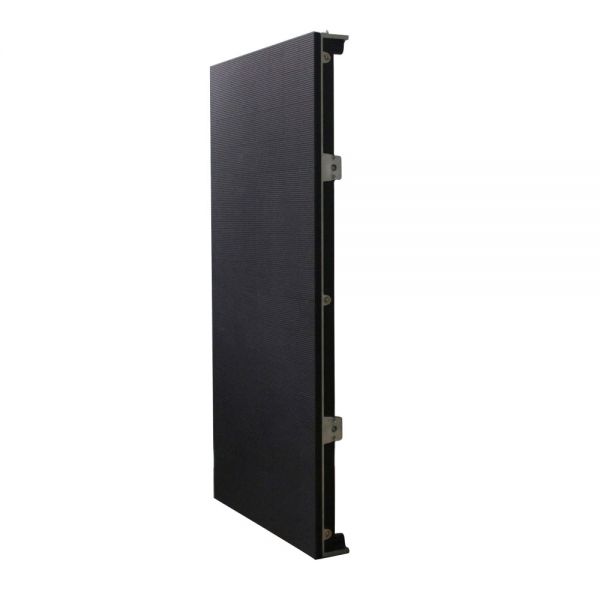

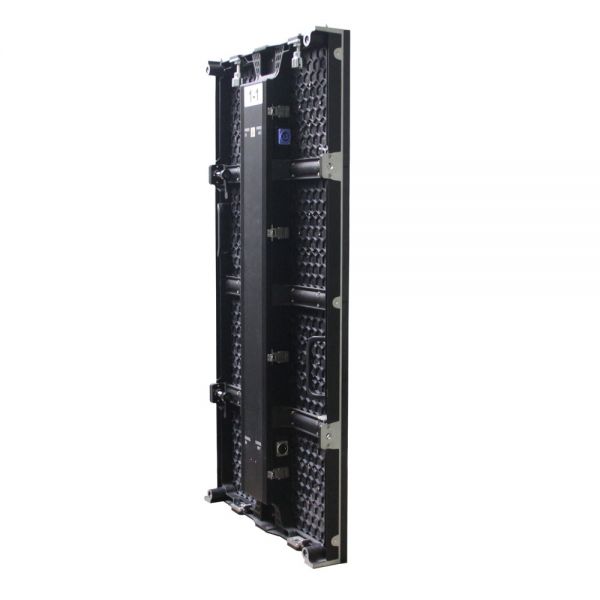

* 500×1000mm big panel,speedily and easily mounting. perfect 16:9 colorful image.
* Ultrathin body,die-casting aluminum structure,high-accuracy conneciton, error<0.1mm.
* Natural aluminum heat conduction design(no-cooling fan),,quiet world.
* HQ-image. Good consistency/No particle and mosaic phenomenon.
* Multi-layer circuit PCB. uniform current distribution. low power consumption, fast heat dissipation, prolong the life of the screen..

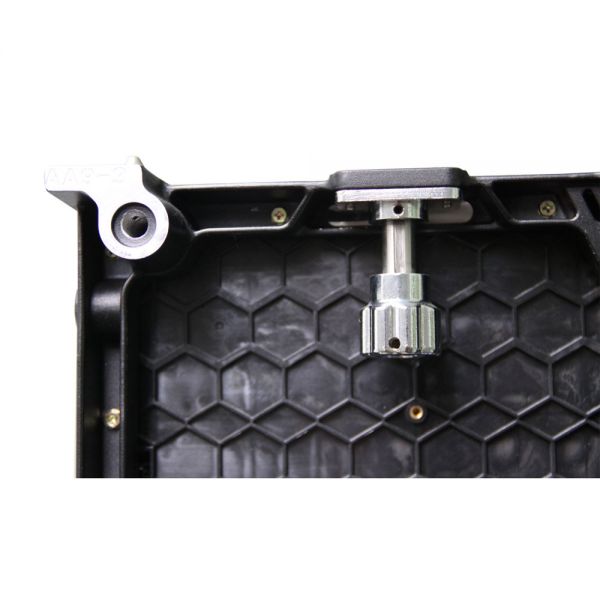

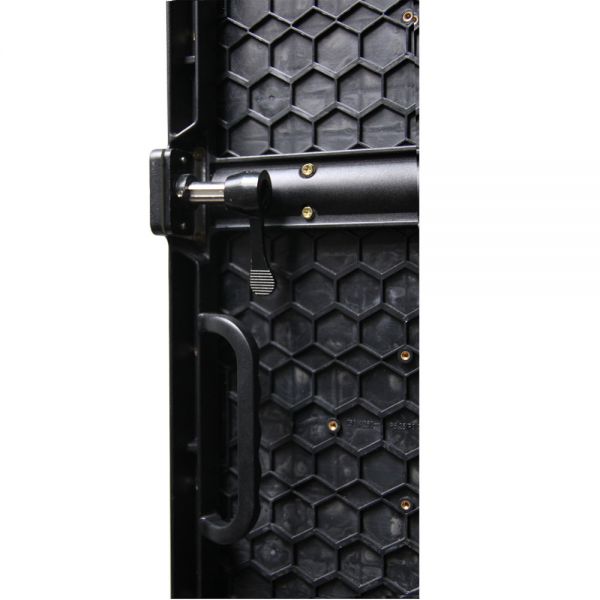

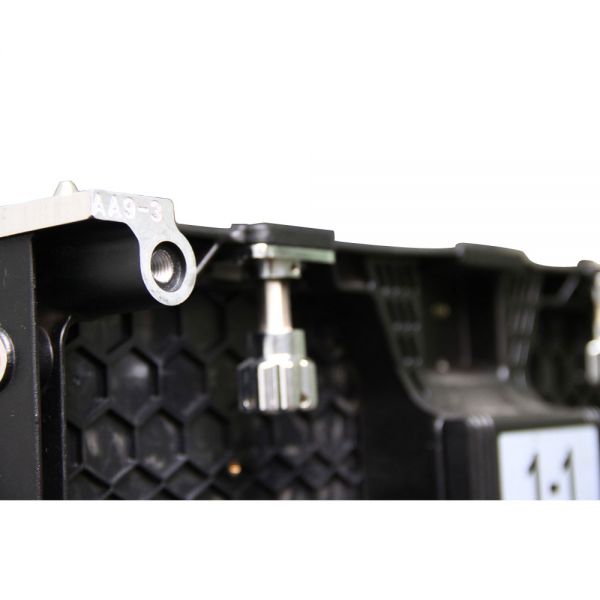

* Tool-free locking sytem.
Specification:
| Model | C480 |
| Pixel pitch | 4.81mm |
| Configuration | SMD2828 |
| Module dimension | (W)250mm×(H)250mm |
| Module weight | 0.52kg |
| Panel dimension | (W)500mm×(H)1000×(T)82mm |
| Panel weight | 13.6kg |
| Pixel density | 43264dots/㎡ |
| Flatness error | ≤0.1mm |
| Viewing angle | 160°/140°(Horizontal/Vertical) |
| Brightness | >6500cd/㎡ |
| Color temperature | 5000~9500k(Adjustable) |
| Contrast | 4000:1 |
| Repetition frequency | 50/60Hz |
| Refresh frequency | ≥2000Hz |
| Gray scale | 16bit |
| Ave. power | 320W/㎡ |
| Max power | 700W/㎡ |
| Working temp./humidity | -10~40℃/10%~80%RH |
| Storing temp./humidity |
-20~60℃/10%~85%RH |
| Panel structure | Die-casting aluminum |

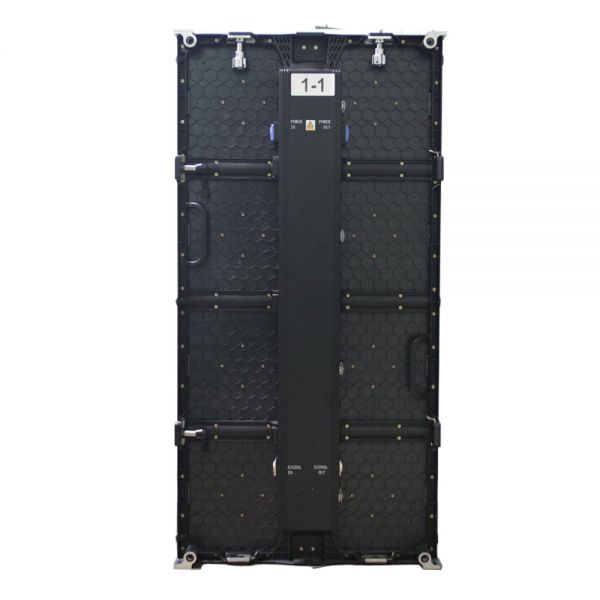

| Maintenance | Rear |
| Protection | IP65(front)/IP54(rear) |
| Driving mode | Constant current driver |
| Scanning |
1/9 |
| Power requirements | AC90~264V,47~63Hz |
| Life time | 100,000hrs |
| Certificate | CCC/TUV-CE/ETL,etc |

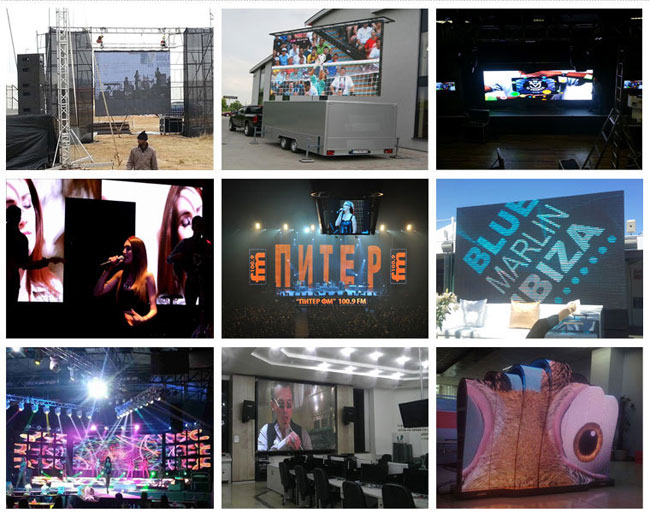

Application:
