P10 Display LED Transparente
Precio unitario
COP 5.762.181
/sq.m
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1-5
0%
COP 5.762.181
6+
0%
COP 5.762.181
Costo total
COP 34.573.086
Cantidad
/sq.m
6
Impulsa tu creatividad y tu producción!
Precio unitario
COP 5.762.181
/sq.m
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1-5
0%
COP 5.762.181
6+
0%
COP 5.762.181
Costo total
COP 34.573.086
Cantidad
/sq.m
6
LED Composition:
| Structure Diagram | ||||
| Structure Specification: 1R1G1B/Pixel SMD3535 | ||||
| Professional Analyse | ||||
| Item | Analyse Item | Analyse Contents | ||
| 1 | Colour Matching | R:G:B/3:6:1 | ||
| Color Blending | In order to achieve the best white balance performance, color blending has the strict requirements on led brightness. And the R:G:B ratio is 3:6:1 |
|||
| 2 | Item | Wavelength | Brigtness | Chip Brand |
| Pure Red | 620nm-625nm | 1000mcd | JingYuan | |
| Pure Green | 524nm-528nm | 2100mcd | SanAn | |
| Pure Blue | 469nm-473nm | 550mcd | SanAn | |
Screen Specification:
| Instruction | Technology Index Parameters |
| Single Cabinet | 1) Pixel: 10.4-10.4mm |
| 2）Density: 9216dot/m2 | |
| 3) LED Composition: 1R1G1B | |
| 4) Color: Pure Red + Pure Green + Pure Blue | |
| Whole Screen | 1) Best Viewing Distance: 15-250m |
| 2) Best Viewing Angle: horizontal:120. Vertical: 120 | |
| 3) Environment Temperature: Storage:-40℃ ～+85℃，Working: -40℃ ～ +60℃ | |
| 4) Humidity: 10%～95% | |
| 5) Screen Depth: t8cm | |
| Power | 1）Working Voltage: 100-220v |
| 2）Average Consumption: 200W/m2 | |
| 3）Max Consumption: ≤600W/m2 | |
| Control System | 1） Control Computer: Lenovo |
| 2）Operation System: WIN 98/ 2000/ NT/XP | |
| 3）Control Way: synchronization | |
| 4）Display Card: DVI display card | |
| Main Technology Specification | 1) Driver IC：MBI5124/ICN2038 |
| 2）Driver Way: Static, 1/1scan | |
| 3）Refresh Rate: ≥1920HZ | |
| 4) Gray/Color: red/green/blue65536 levels, 16.7M colors | |
| 5）Brightness: ≥500cd/m2 | |
| 6) Brightness Adjustment way: software adjust 100 levels. | |
| 7) Screen Signal: PAL/NTSC | |
| 8) Screen input/output way: 8 ways for input/ 8 ways for output | |
| 9) control system: PCTV+ DVI Display Card + Fullcolor Control System | |
| 10) Average trouble-free time: ≥10000 hours | |
| 11) Lifetime: 10,0000 hours | |
| 12) Flatness: every pixels ≤1mm Every modules ≤1mm | |
| 14) Uniformity: the brightness is uniformity | |
| Computer Display Mode: 800×600，1024×768，1280×960etc | |
| Software | LED Studio |
| ProtectionTechnoloty | Humidity Protection, Dust Protection, Rust Protection, Static-Protection, etc. |
| Play content | Text files, WORD files, all picture files (BMP/JPG/GIF/PCX...), all animation files (MPG/MPEG/MPV/MPA/AVI/VCD/SWF/RM/RA/RMJ/ASF...). |
| Assembly structure | The panel adopts modular - Display Box - display panel assembly structure, which is convenient to assemble. |

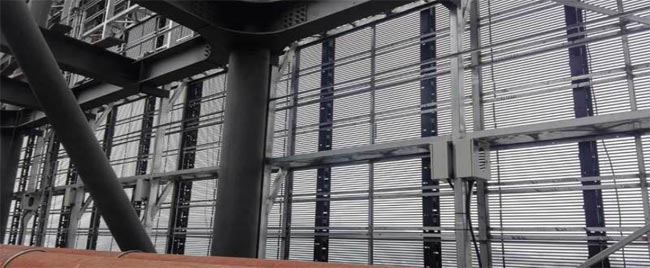

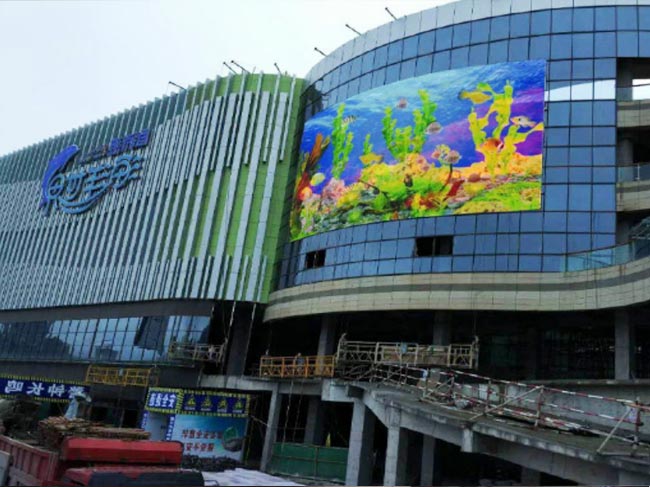

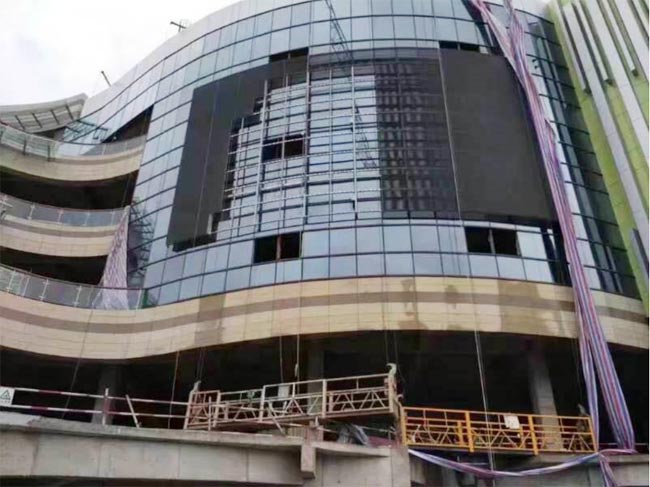

Application Scene:
Glass curtain wall gain a good space visual effect indoor, such as in chain store, shopping mall,exhibition center, airport, metro station, automobile 4S shop, jewelry store, bank etc. which brings strong visual impact and sense of hierarchy for LED transparent display.
