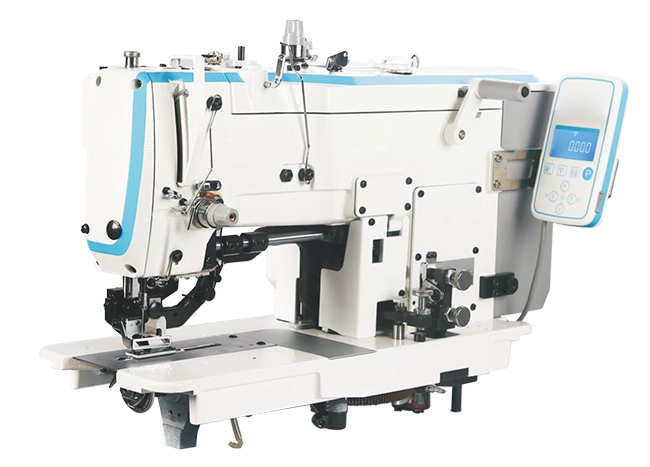

JACK JK783G New Integrated Electronic Lockstitch Buttonholiding Machine
Details:Mechatronics, Easy To lInstall
Driven by servo motor, it has low vibration, low noise, high efficiency production performance and excellent sewing quality.
Auto Lifting And Trimming, Energy Saving And Efficient
With automatic presser foot lifting and automatic thread trimming functions improve work efficiency and reducee labor intensity.

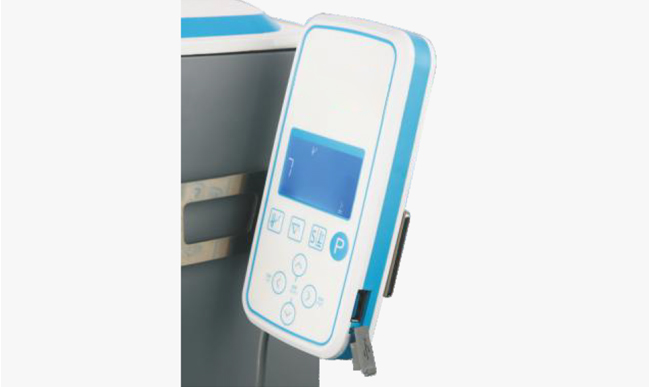

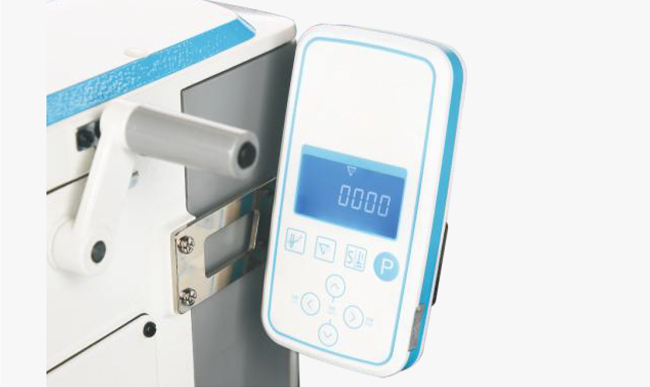

Dot Panel, Easy Operation
With patterns and parameter display functions, no need to consult the manual, easy to operate, you can freely set the number of soft start needles, dynamically observe and adjust the machine running speed, and the operationis easier.

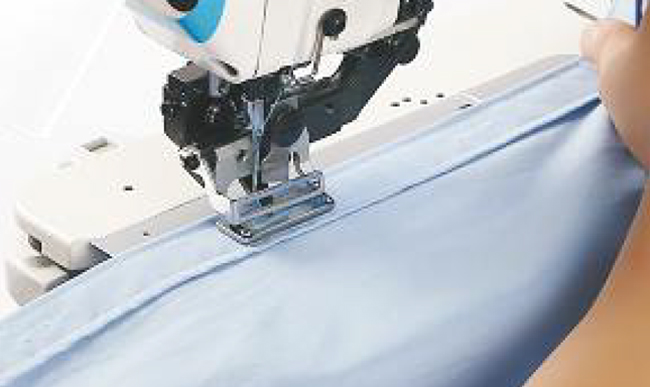

Wide Rang Of Applications Beautiful Stitches
Equipped with a special knitting dedicated presser foot, a small needle plate and afeeding plate. For high-elestic fabics it also can hold down and sew beautiful stitches. This machine more suituable for knitting material with lower thread breakage rate.

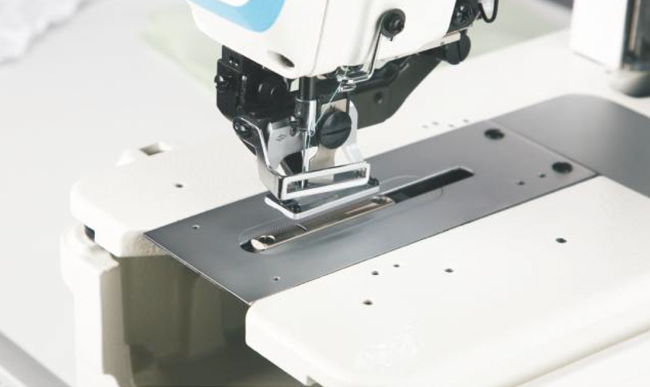

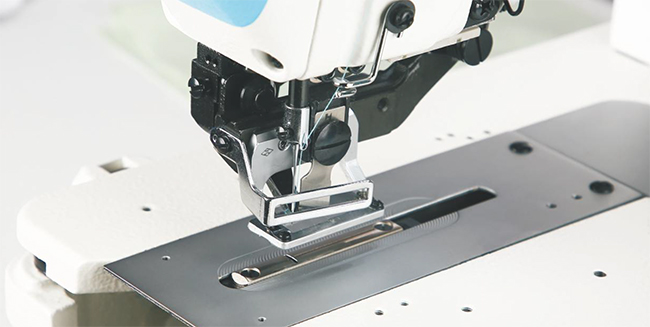

Short Thread Remaining, No Need Thread Timmer Again
Thin woven material equipped with short thread emainning presser foot, a needle plate and feeding plate, by changing the thinkness of the small needle plate to keep the remain thread within 3mm. Then the factory can reduce the cost of thread cutting workers; reduce enterprise costs and increase profitability.
Bottom Thread Detection
When the bobbin thread margin is insufficient (after sewing the current buttonhole), stop intime.
Automatic Counting function
It can automaticallyrecord the number of keyholes for easy counting and quick verification.
Technical parameters:
Functions: Woven material
Button hole size: 40x5mm
Needle No.: DPx5 12#
Needle qty: 1
Thread No.: 2
Side cutter function: 1/4"~1 1/4"
Parallel interspace: 0.2-2.5mm
Automati thread trimming: YES
Automatic presser foot lift: YES
Pressel foot lifter height: 12mm
Max.speed(s.p.m): 3600
Volume: 630x470x440mm
Weight: 46/66kg
