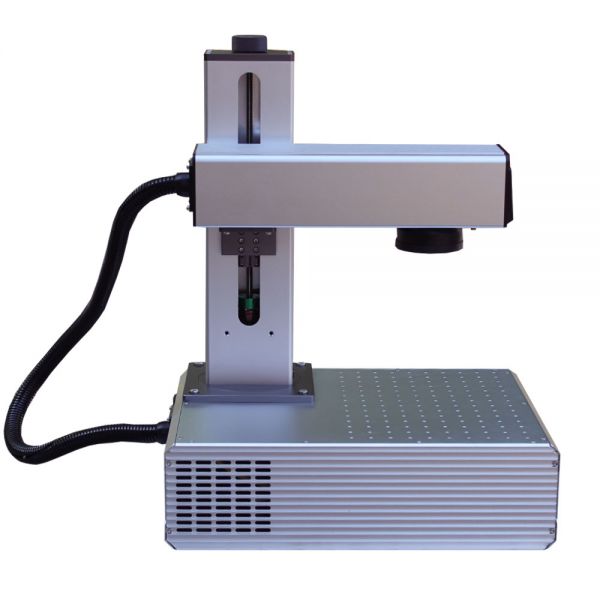

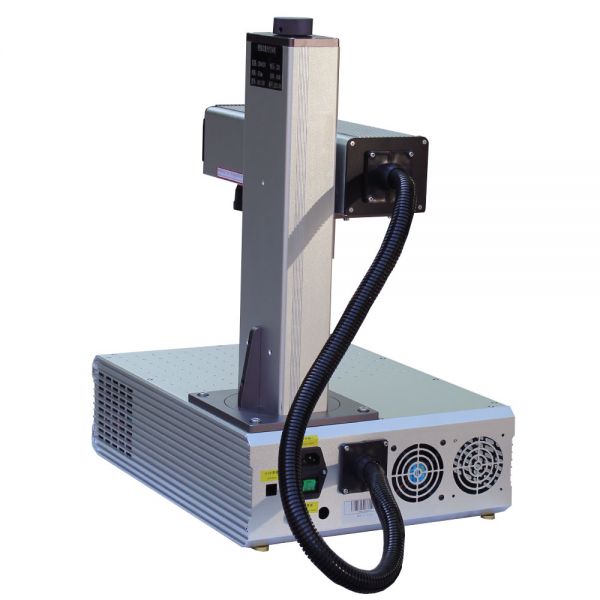

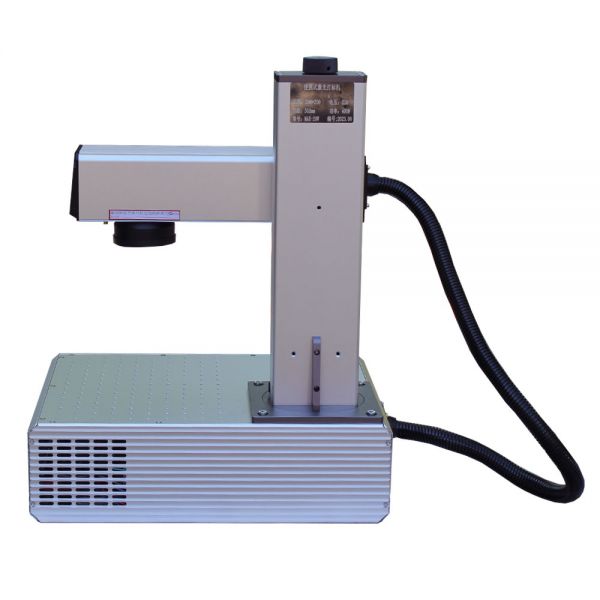

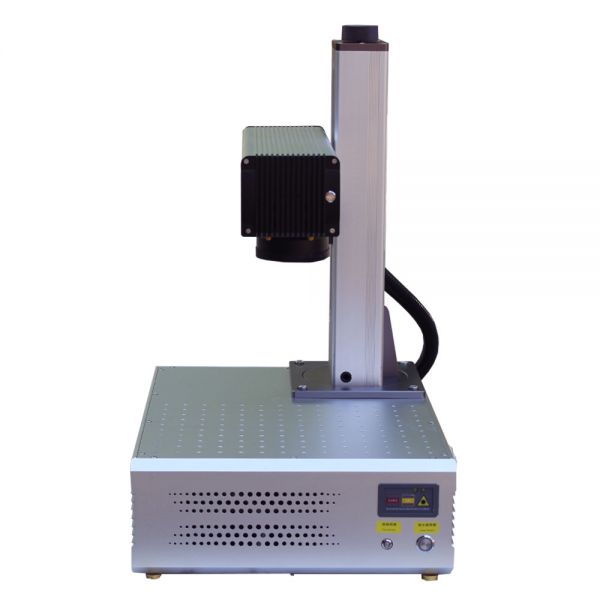

Integrated Fiber Laser Marking Machine with Raycus Laser,20W/30W/50W/100W
50W(200mm)
Precio unitario
COP 13.888.165
/set
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1
10%
COP 13.888.165
Opciones
Por Favor Eliga el Tipo Por Favor Eliga el Tipo
Costo total
COP 15.431.294
COP 13.888.165
Cantidad
/set
1
| Name | Origin (brand) | Remarks |
| Optical maser | Raycus | Long service life, high reliability, fine beam quality |
| Galvo mirror | Galvo-tech (digital) | Fine marking, more quick and high reliability |
| F-θ lens | Wavelength | High quality optical device |
| Board | bjjcz | 2.12.0 version |
| Marking software | Special marking Software (Ezcad2 software) | Powerful, simple and convenient operation, Auto-cad, CorelDraw, AI8.0, Photoshop software compatible form |
| Control cabinet | China | Optical fiber special cabinet, all the mold production, high seal |
| Specification Form | |
|
Model |
SIT-LMM-JK-I |
|
Fiber Laser Source |
Raycus |
|
Output Power |
20W/30W/50W/100W |
|
Laser wavelength |
1064nm |
|
Modulation frequency range |
20-100kHz |
|
Speed |
0-8000mm/s |
|
Precision |
0.001mm |
|
Minimum line width |
0.01mm |
|
Minimum height of characters |
0.05mm |
|
Cooling way |
Air cooling |
|
Marking range |
150x150mm/200x200mm |
|
Laser power supply |
0.5KW,220V/50Hz or 110V/60Hz |
|
Software |
Auto-cad, CorelDraw, AI8.0, Photoshop software compatible |
|
Graphic Format Supported |
AI / BMP / DST / DWG / PLT |
| Weight | 60KGS |
|
Computer System Requirements |
Win7,Win8,Win10 |
|
||
| Metal | Non-metal | |
| Aluminum | Makrolon Polycarbonate | |
| Stainless Steel | Black / White ABS | |
| Copper | Nylon | |
| Silicon Steel | Polysulphone | |
| Yellow Chromate Aluminum | Rynite PET | |
| Brass | Santoprene | |
| Nickel Plated Brass / Gold / Kovar / Steel | Sillicon Carbide | |
| Nickel Plated 1215 Mild Steel | Glass Filled PTFE Coated Fiberglass | |
| Hard Coat Anodized Aluminum | White PEEK | |
| Machine Tool Steel | Glass Filled PEEK | |
| Metal Plated Ceramics | Silicon Wafers | |
| Magnesium | Carbon Nanotube | |
| Molybdenum | Colored Delrin | |
| Carbon Fiber / Carbon Nano tube | GE Plastics Polycarbonate Resin 121-R | |
| Clear coat anodized aluminum | Polybutylene Terephthalate | |
| Cobalt Chrome Steel | ||
| Compacted Powder Iron / Iron Phosphate Coating | ||
