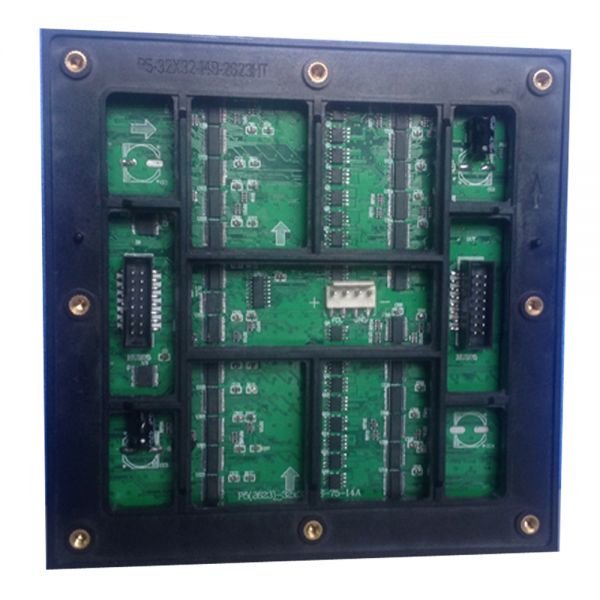

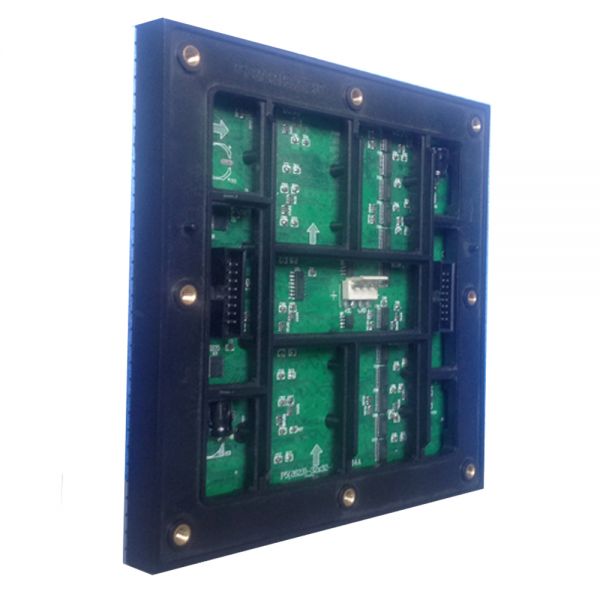

High-definition Outdoor Led Display P5 32x32 RGB Plain Color Inside P5 Medium 32x32 RGB LED Matrix Panel(6.29" x 6.29" x 0.5")
Precio unitario
COP 111.174
/unidad
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1
16%
COP 111.174
Costo total
COP 132.350
COP 111.174
Cantidad
/unidad
1
Product advantage:
1. Super bright LED and plastic quality
2. High contrast can achieve good results
3. Weight is easy to install and remove
4. Single point, single light maintenance, low cost
5. Constant current mode is used to drive LED, even light, low power consumption.
6. Beads glue dispersing agent (DP), surface spray. The point light source into surface light source, to ensure consistency of better visual effect, more plump, soft.
7. 100% new material support rubber shell (PPA), seal
LED parameter
| Color | LED Package | Brightness | Wave | Voltage | Test condition |
| R | 3IN1 SMD 2727 |
670 | 615-630nm | 1.8-2.4V | 25°C 20mA |
| G | 1580 | 515-535nm | 2.6-3.6V | 25°C 20mA | |
| B | 230 | 465-480nm | 2.6-3.6V | 25°C 20mA |
Screen parameters
| Type | P5 |
| Pixel pitch （mm） | 5 |
| Pixel density （dots /m2） | 40000 |
| Pixel structure | 1R1G1B |
| LED Package | SMD2727 |
| Module Size (mm) | 160*160 |
| Module Resolution (dots) | 32*32 |
| Number of modules per square meter (PCS) |
39.06 |
| Minimum viewing distance（m） |
≥5 |
| Brightness (cd/m2) | ≥6800 |
| Angle of view （degree） | ≤120° |
| Scanning mode | 1/8 Scan constant current drive |
| Module interface | HUB75 |
| Input voltage (DC) | 4.8-5.5V |
| Maximum power (w/m2) | 1000 |
| Average power (w/m2) | 450 |
| Module weight （g） | 263 |
| Gray level | Recommended level 16384 |
| Control mode | Computer control, video synchronization, real-time display |
| Effective communication distance without relay |
Non shielded twisted pair transmission distance of 100 meters, the maximum transmission of up to 130 meters |
| Frame changing frequency | ≥ 60 rames/ second |
| Pixel out of control rate | ＜0.0001（LED Industry standard: less than 3/10000） |
| Display color number | 64G color (4096 gray levels under the condition of the number of colors) |
| Module brightness uniformity |
＞95% |
| Color temperature |
RGB color brightness through the software of 100 adjustable color |
| Contrast ratio | Software 100 adjustable |
| MTBF MTDLF | ≥10000Hours |
| Service life | ≥50000Hours |
| Protection performance |
Over temperature / overload / drop / image compensation/ various correction techniques / over current / over voltage / lightning protection |
| Using ambient temperature | Outdoor, -40 to 60°C |
