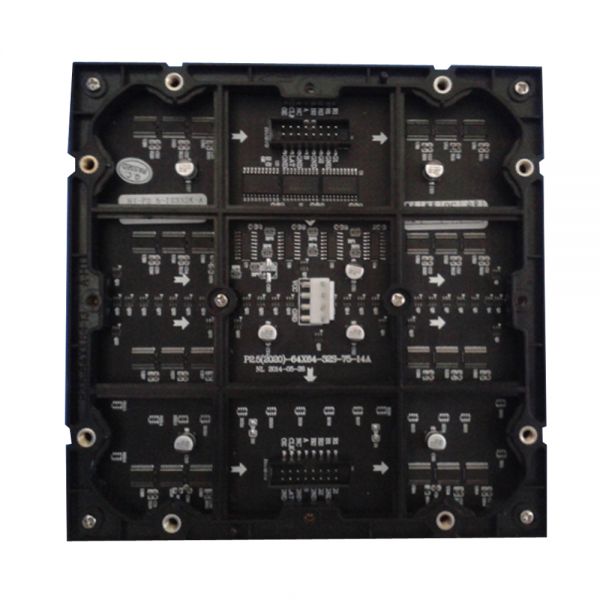

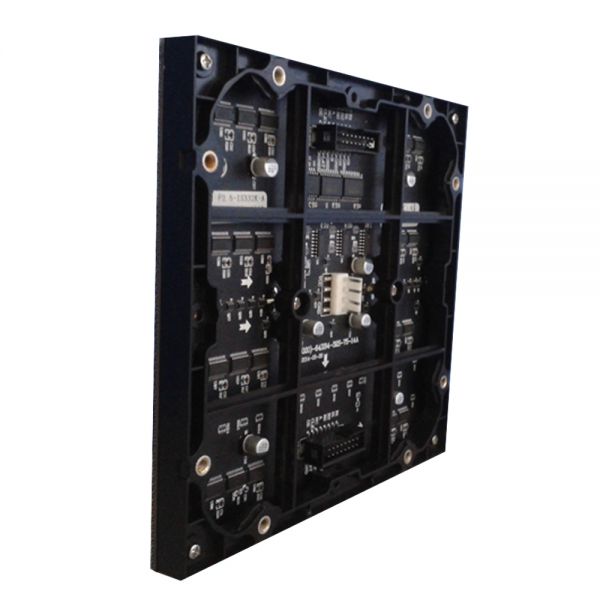

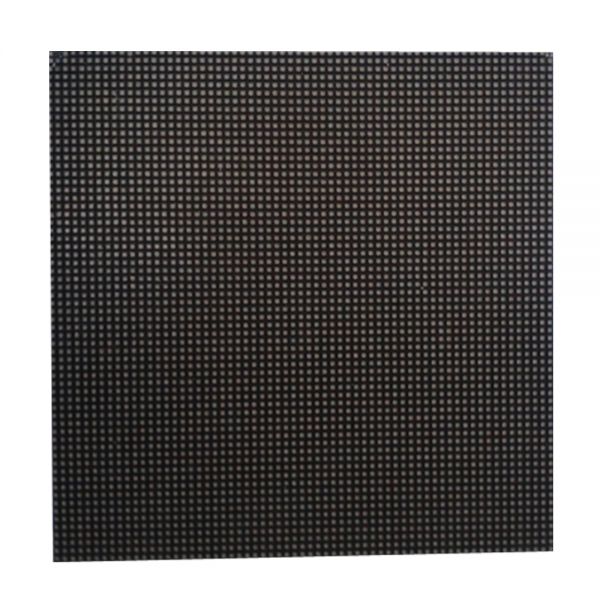

Pantalla LED de interior de alta definición P2.5 64x64 RGB SMD3 En un color llano del interior P2.5 Medium 64x64 RGB LED Matrix Panel(240x120x12.7mm)
Precio unitario
COP 190.492
/unidad
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1
8%
COP 190.492
Costo total
COP 207.056
COP 190.492
Cantidad
/unidad
1
Product advantage:
1. Super bright LED and plastic quality
2. High contrast can achieve good results
3. Weight is easy to install and remove.
4. Single point, single light maintenance, low cost
5. Constant current mode is used to drive LED, even light, low power consumption.
6. Beads glue dispersing agent (DP), surface spray. The point light source into surface light source, to ensure consistency of better visual effect, more plump, soft.
7. 100% new material support rubber shell (PPA), seal
LED parameter
| Color | LED Package | Brightness | Wave | Voltage | Test condition |
| R | 3IN1 SMD 2121 |
190-247 | 619-623nm | 1.8-2.4V | 25°C 20mA |
| G | 375-450 | 523-527nm | 3.0-3.6V | 25°C 20mA | |
| B | 80-104 | 464-468nm | 3.0-3.6V | 25°C 20mA |
Screen parameters
| Type | P2.5 |
| Pixel pitch (mm) | 2.5 |
| Pixel density (dots /m2) | 160000 |
| Pixel structure | 3 IN 1 |
| LED Package | SMD2121 |
| Module Size (mm) | 160×160 |
| Module Resolution (dots) | 64×64 |
| Number of modules per square meter (PCS) |
39.06 |
| Minimum viewing distance(m) |
≥2.5 |
| Brightness (cd/m2) | ≥1200 |
| Angle of view (degree) | ≤120° |
| Scanning mode | 1/32 Scan constant current drive |
| Module interface | HUB75 |
| Input voltage (DC) | 4.8-5.5V |
| Maximum power (w/m2) | 1500 |
| Average power (w/m2) | 450-750 |
| Maximum current (A) | 7.68 |
| Module weight (g) | 209 |
| Gray level | Recommended level 16384 |
| Control mode | Computer control, video synchronization, real-time display |
| Effective communication distance without relay |
Non shielded twisted pair transmission distance of 100 meters, the maximum transmission of up to 130 meters |
| Frame changing frequency | ≥ 60 rames/ second |
| Pixel out of control rate | <0.0001 (LED Industry standard: less than 3/10000) |
| Display color number | 64G color (4096 gray levels under the condition of the number of colors) |
| Module brightness uniformity |
>95% |
| Color temperature | RGB color brightness through the software of 100 adjustable color temperature can be regulated according to the needs |
| Contrast ratio | Software 100 adjustable |
| MTBF MTDLF | ≥10000Hours |
| Service life | ≥50000Hours |
| Protection performance | Over temperature / overload / drop / image compensation / various correction techniques / over current / over voltage / lightning protection |
| Using ambient temperature | Indoor, -20 to 50°C |

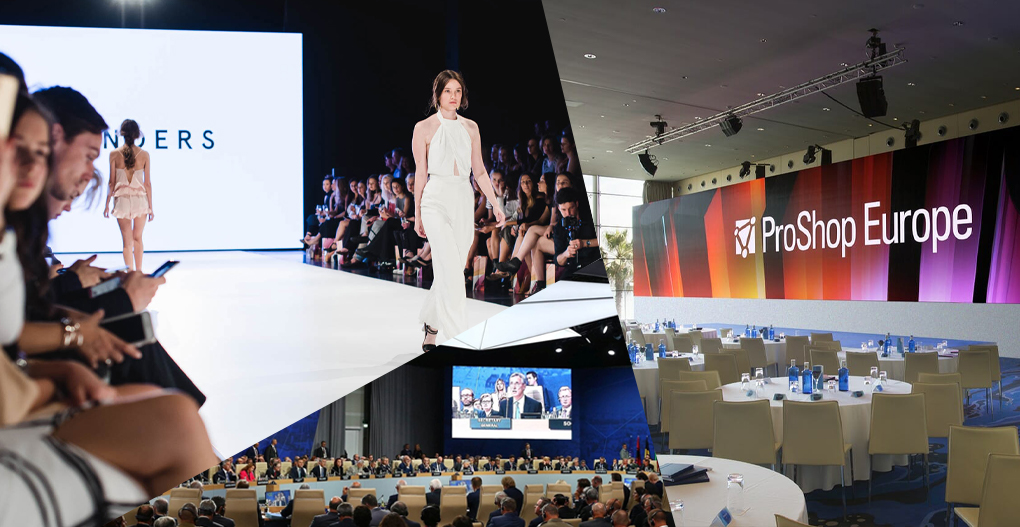

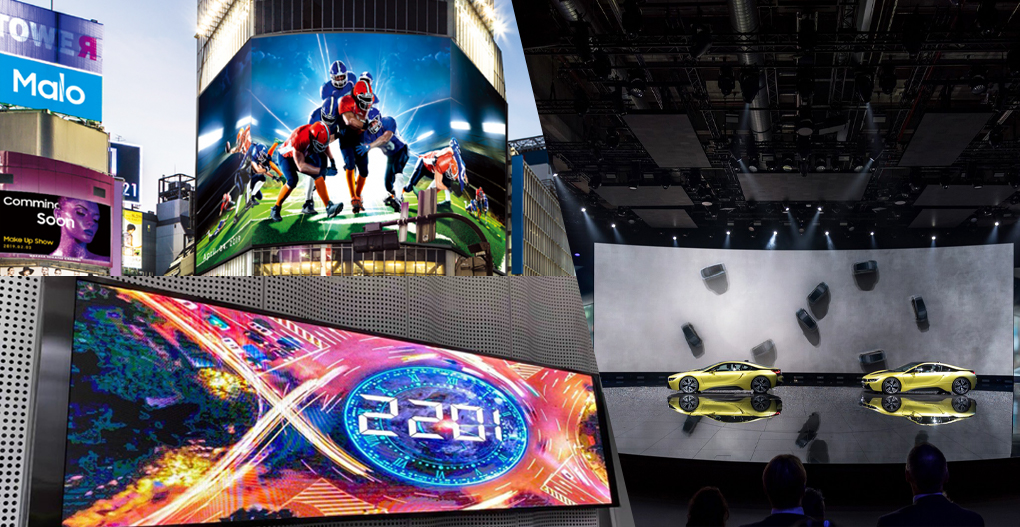

Applications:
