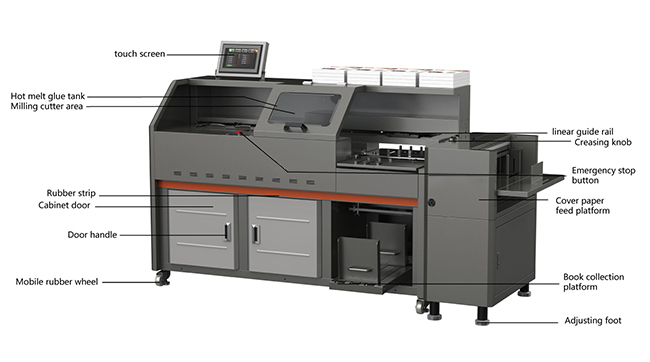

H300 320mm Automatic High Speed Paper Book Binding Machine
Specification:
| Book length (with feeding cover) | 120-425mm |
| Book length (without auto feeding cover) | 120-320mm |
| Book thickness | 0.2-60mm |
| Book Height | 135-297mm |
| Max cover size | 660*330mm |
| Cover thickness | 120-300g |
| Cover feeder capacity | 98mm |
| Number of Creases | 2 convex spine lines, 2 concave flipping lines |
| Distance of the spine lines | 2-60mm |
| Distance between the spine line and the flipping line | 8mm |
| Pre heating | 25-45 minutes(Depending on ambient temperature) |
| Side glue | YES |
| Rubber wheel | 3 |
| Cycle speed | 350-400books/h |
| Cutter | 30 tooth sun cutters + 4 small milling cutters |
| Display | 10.0" touch screen |
| Power | 220V 50Hz/60Hz; 2.6KW |
Details:

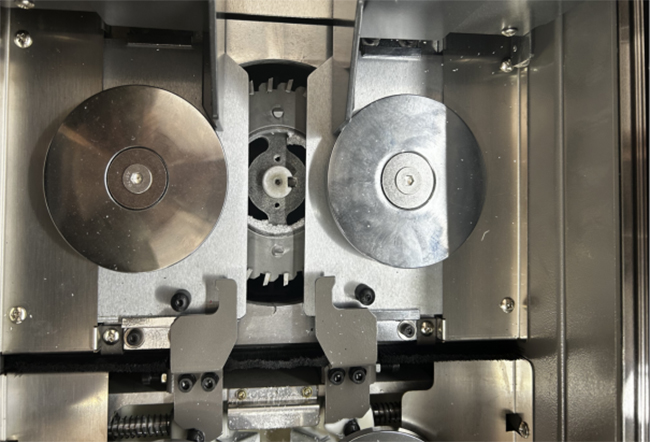

30 tooth sun cutter 4 small milling cutters.
Automatic automatic feeding technology.
Completes the creasing of flipping lines and spine lines in one go, enhancing the binding effect of the book.
Automatic secondary positioning of the cover to resolve issues with cover position deviation.
New patented finishing rubber technology.
10.0-inch touch screen intelligent operating system.
Linear guide rail + circular guide rail combination, providing better stability for machine operation.
Smoke extraction device(optional).

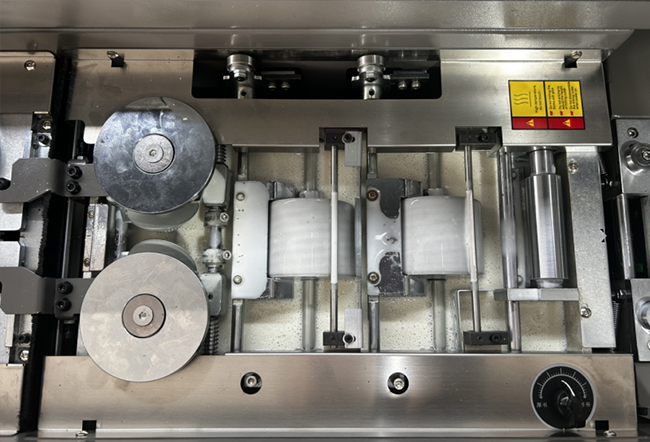

Integral cast aluminum glue pot With side glue, Three rubber wheel.
