C24A 680mm Vinyl Cutter with Full Auto Contour Cut Function

Name: C24A 680mm Vinyl Cutter with Full Auto Contour Cut Function
SKU: SIT-TH-C24A
Price: 2254005 COP
Availability: InStock

Precio unitario

COP 2.254.005

/set

Descuentos por volumen

Cantidad

Descuento

Precio por unidad

COP 2.254.005

Costo total

COP 2.254.005

Cantidad

/set

Detalles del producto

C24A 680mm Vinyl Cutter with Full Auto Contour Cut Function

Advantages:

- High precision of cutting 2mm small fonts

- 2.4inch industrial LCD display screen --- Longer service life

- Silicon buttons --- Easier operation

- Automatic contour cutting function: Four marks detection automatically, more convenient

- Multiple interfaces: Serial port, USB, U disk (Bluetooth/ wifi optional)

- U disk offline working: .plt format file can be copied to U disk, and work without PC connection

- Various material can be cut: vinyl, PU, PVC, PET

- Application: label cutting, T-shirt pattern heat transfer, wall / car sticker cutting.

Details:

Specification:

Model Name	C24A
Main board	32-bit ARM7 CPU,128Mb, High-speed CACHE Memory
Function	Automatic contour cutting function with sensor
Driver	High speed,big power step motor, micro-step driver
Control panel	9 silicon buttons, 128*64 industrial screen

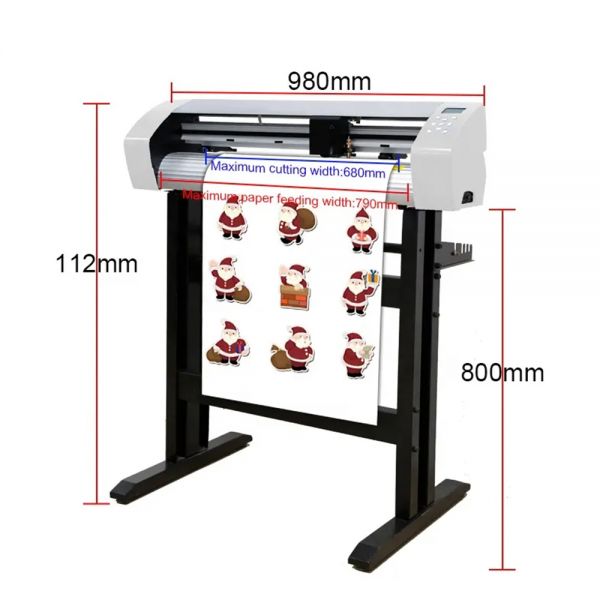

Maximum input width	790mm
Maximum cutting width	630mm
Interfaces	USB/ U disk / Serial port USB
Plotter instruction	Compatible DM/PL, HP/GL DM/PL, HP/GL
Software	Signmaster
Cutting force	10-1000g (digital adjustable)
Cutting speed	900mm/s
Maximum cutting thickness	0.8mm
Mechanical precision	0.025mm
Type of plotter pen	All types diameter 11.4 mm plotter pen
Powre consumption	<80W
Media way	With Floor stand
Gross weight	25kg
1075x324x380mm

Application:
