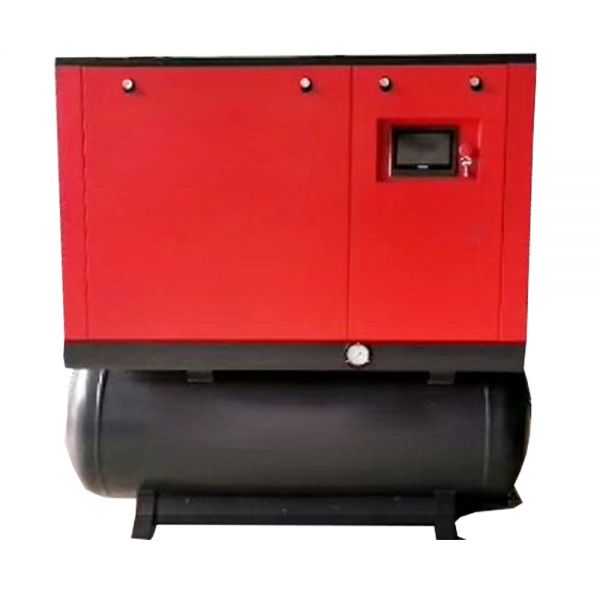

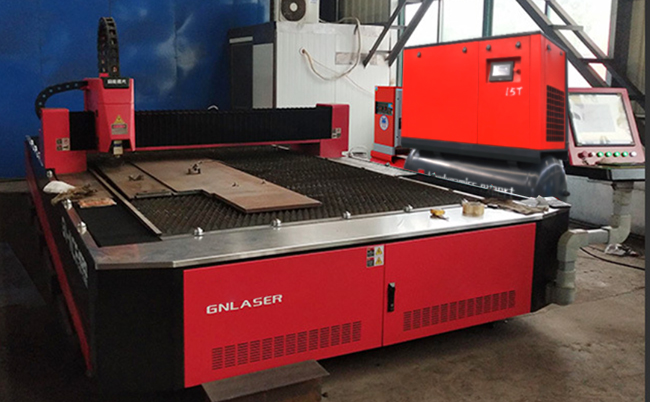

BK15-16 Screw Air Compressor for 4000W Fiber Laser Cutting Machine
Features:
1.The built-in refrigeration dryer, gas storage tank and filter are compact in structure;
2.99.9% high-efficiency gas-water separation and automatic drainage device;
3.Low vibration and low noise, and convenient for maintenance;
4.It can be used directly after taking over.
Specification:
| Model |
BK-15T |
| Working Pressure |
16bar |
| Capacity |
1.6m³/min |
| Motor Power |
15KW |
| Air Outlet |
G3/4" |
| Weight |
500kg |
| Noise |
72dB (A) |
| Dimension |
1500*600*1500mm |

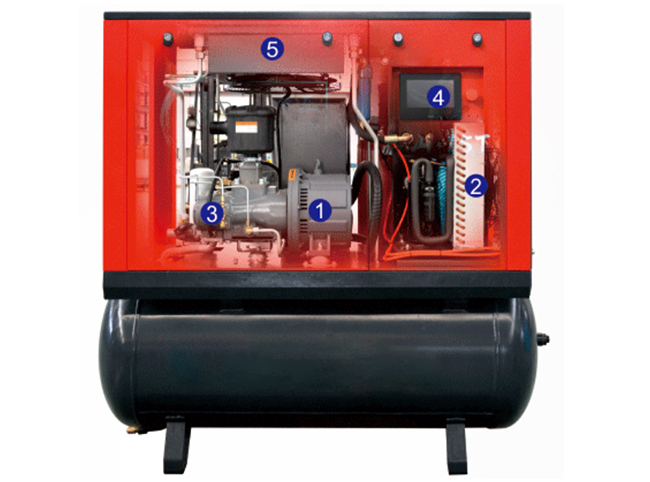

Details:
1.Built-in high-efficiency permanent magnet integrated motor
180°C high temperature resistant permanent magnet material, high efficiency and energy saving: motor efficiency exceeds IE3, reaching 93%
2.Efficient cold working machine
High processing capacity, heat recovery, high water removal efficiency, and automatic drainage function.
3. High-induced snoring host
Use red five-ring high-efficiency screw main engine, equipped with 6 original SKF shafts
Bearing, sturdy and durable
4. Advanced control system
Equipped with an integrated high-efficiency frequency converter, the output torque is large, the frequency change range is wide, the output pressure of the unit is stable, and the high-efficiency operation is realized, which reflects the real energy saving.
5. High-efficiency generator
The super large heat exchange area design improves the cooling efficiency and effectively prevents the high temperature of the machine.
Adapt to more severe working conditions and prolong the service life.
