All-In-One Design 30W Fiber Laser Marking Machine, Free Computer with Pre-installed EZCAD Software
Includes computer with Pre-install software
The ED-F30 has an all-in-one design, with fiber laser, galvanometer, Accessory axis, control system, industrial PC included and integrated, and provides a working table for users. With this design, the ED-F30 achieves low failure rate, low maintenance cost, and ease of use and maximum productivity.
| Specification | |
| Model | LMM-ED-F30-US |
| Fiber Laser Source | JPT |
| Output Power | 30W |
| Laser wavelength | 1064nm |
| Modulation frequency range | 20-100kHz |
| Speed | ≤ 8000mm/s |
| Precision | ±0.003m |
| Minimum line width | ≤1.0mm |
| Minimum height of characters | 0.15mm |
| Cooling way | Air cooling |
| Marking range | 110mm x 110mm (4.33in x 4.33in) |
| Software | EZCAD |
| Rotary device | Yes |
| Computer System Requirements | Win Seal XP / Win7 / Win8 / Win10 |
Features:
Plug and Play
We provide ready to use machine package with all necessary parts, include exhaust blower, etc. Just setup and do some job!

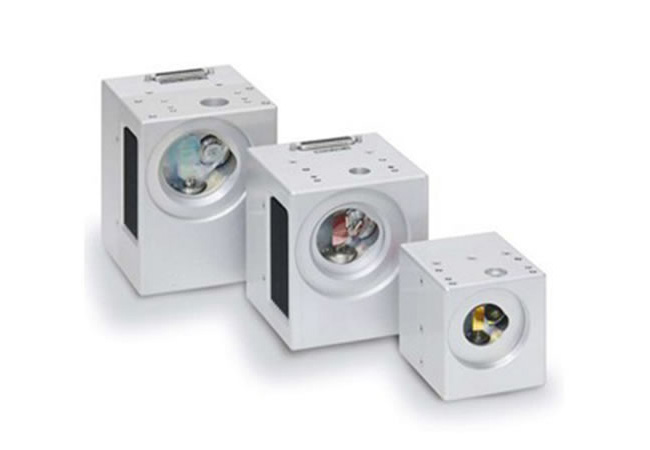

High Performance Galvos and Lens
With galvos and lens from world's leading supplier, the ED-F30 can do marking extremely fast with high precision, much faster than X-Y engraving system. By using our high performance galvos, you can engrave small character as little as 0.15mm with no distortion. High quality lens ensure same size of focal point on all corner of working area, help you achieve best processing quality.

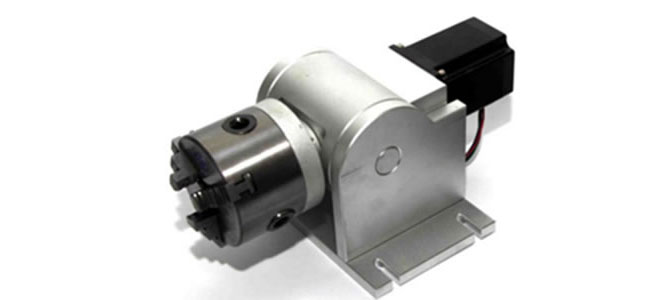

Z-Axis and Rotary Unit (optional)
With a mechanical adjustable Z-axis using a hand wheel, you can do marking on work piece of different thickness, abnormal shape, or the one holding on a rotary unit. The rotary unit is included in our standard configuration, no additional cost for it.

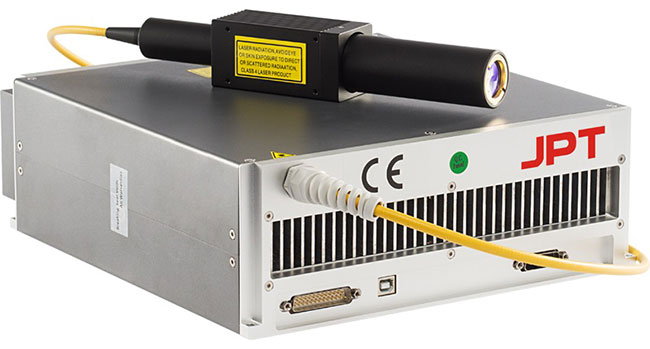

Precise Fiber Laser
The ED-F30 is equipped with a maintenance free, air-cooled high-speed fiber laser, with average lifetime of 100,000 hrs. It's available with 30W, for general-purpose use, and 50W, for high demanding conditions. The output window of fiber laser is sealed in metal box assembled with galvo scanner, no maintenance required even in most demanding environments.
Positioning Laser
By using the built-in coaxial positioning laser to pinpoints the border of marking, you can align work piece quickly and easily, reduce the time spent on preparatory work and the number of defective products.

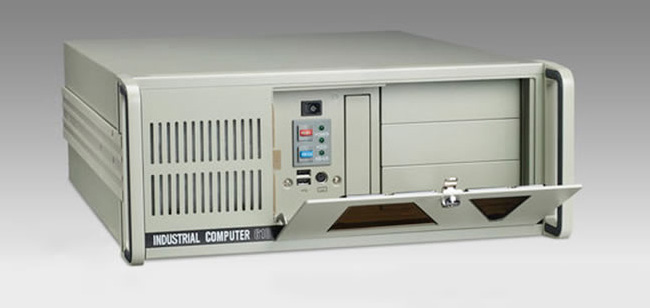

Industrial PC
The ED-F30 is equipped with an optimized and robust industrial PC, to guarantee long-term stable and reliable operation.
Intelligent Marking Software
You can import or make a design, make a hatch, finish layout and sorting, and control machine directly in our software.
Foot Switch
With foot switch, you can keep your hands free, especially in case of processing same marking repeatedly, to improve productivity.
Safety and Reliability
The ED-F30 is designed, engineered and built with safety and reliability considerations in mind. We use electronic parts from world’s leading supplier and build system accommodate to international standards.
Application Industry:
Jewellery, Keyboards of cell phone, Auto parts, Electronic components, Electronic appliance, Communication apparatus, sanitary wares, buckles, kitchenware, Sanitary equipment’s, Hardware tools, Knife, Glasses, Clock, Cooker, Stainless steel products etc.
Application:
|
||
| Metal | Non-metal | |
| Aluminum | Makrolon Polycarbonate | |
| Stainless Steel | Black / White ABS | |
| Copper | Nylon | |
| Silicon Steel | Polysulphone | |
| Yellow Chromate Aluminum | Rynite PET | |
| Brass | Santoprene | |
| Nickel Plated Brass / Gold / Kovar / Steel | Sillicon Carbide | |
| Nickel Plated 1215 Mild Steel | Glass Filled Teflon | |
| Hard Coat Anodized Aluminum | White PEEK | |
| Machine Tool Steel | Glass Filled PEEK | |
| Metal Plated Ceramics | Silicon Wafers | |
| Magnesium | Carbon Nanotube | |
| Molybdenum | Colored Delrin | |
| Carbon Fiber / Carbon Nano tube | GE Plastics Polycarbonate Resin 121-R | |
| Clear coat anodized aluminum | Polybutylene Terephthalate | |
| Cobalt Chrome Steel | ||
| Compacted Powder Iron / Iron Phosphate Coating | ||
1. Aluminum
Aluminum is one of the most commonly marked substrates, and we use it in many industries. Typically, with lighter marking intensity, aluminum will turn white. anodized aluminum looks good , but white marking is not ideal for bare and cast aluminum. More intense laser settings provide a dark grey or charcoal color. Each DLM fiber laser engraving machine is capable for aluminum marking. The ideal system for your application depends on your laser marking requirements. Ablation is the most common marking technique for anodized aluminum, but some people call for etching or engraving.
2. Brass and copper
Brass and copper have high thermal conductivity and thermal transfer properties. So we use it for wiring, printed circuit boards and pressurized flow meters. Their thermal properties are ideal for laser marking systems for metal because the heat is quickly dissipated. This reduces the impact the laser can have on the structural integrity of the material. Every DLM fiber laser engraving machine is capable of marking on brass and copper and the ideal system for your application depends on your marking requirements. The best marking technique depends on the finish of the brass or copper. Smooth surfaces can offer a soft polished marking affect, but also can do annealed, etched, or engraved. Etching or engraving is best in order to provide readability by humans and machines. In some cases a dark anneal can work, but surface irregularities can cause reduced readability.
3. Tungsten and Carbide
Tungsten and Carbide are two of the hardest metals on earth and are widely used in tooling and cutting applications. Another popular segment for these substrates is wedding bands for men. Tungsten and carbide are receptive laser marking metals and laser engraving metals. Each and every DLM Laser series is capable of marking on tungsten and carbide and the ideal system for your application depends on your marking requirements. For carbide, because of the darker color it naturally has, getting a contrasting mark is rather easy with even light laser intensity. A white color is most common when polishing or annealing carbide and the contrast is extremely good.
4. Chrome
Chrome plating provides a stylish and sophisticated finish, and usually requires minimal laser intensity to remove or get through the plating. we need take ensure the marking happens on the surface only, with no impact to the chrome plating.
