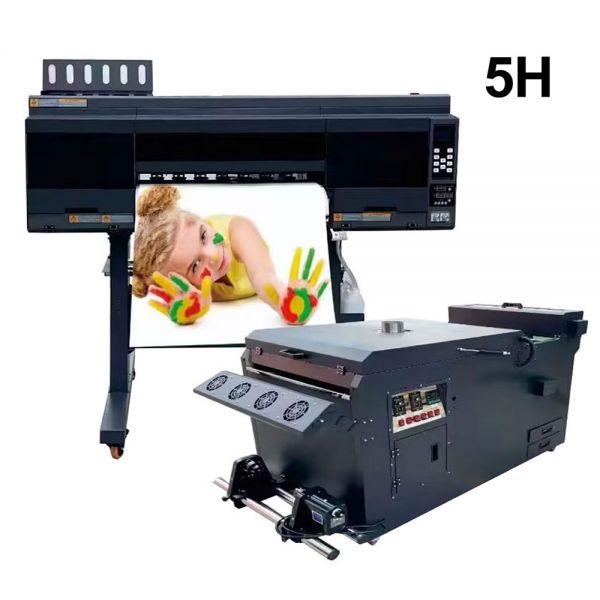

650E DTF Printer Powder Shaker and Dryer with 6 Epson i3200A1 Printheads
Features:
- Universal matching, easy to use, labor saving.
- Digital offset heat transfer, one-time forming.
- Suitable for industries such as digital printing.
- No engraving, no waste discharge, no engraving, no white edges, environmental protection.
Specifications:
| Printing width | ≤620mm | |||||
| Print Head | 650B/Epson i3200A1 | 650C/Epson XP600 | 650D/Epson i3200A1 | 650E/Epson i3200A1 | 650E/Epson i3200A1 | |
| Print head qty. (pc) | 2 | 2 | 4 | 5 | 6 | |
| Printing speed | 4pass | 12 m/h | 6.5 m/h | 28 m/h | 39m/h | 48m/h |
| 6pass | 8.5 m/h | 4 m/h | 21 m/h | 31m/h | 40m/h | |
| 8pass | 6 m/h | 2.5 m/h | 14 m/h | 20m/h | 27m/h | |
| Print color | CMYKW(Optional 8 colors) | |||||
| Suitable media | PET film | |||||
| Heating and drying function | Front guide plate heating, solidified upper drying, and cold air cooling function | |||||

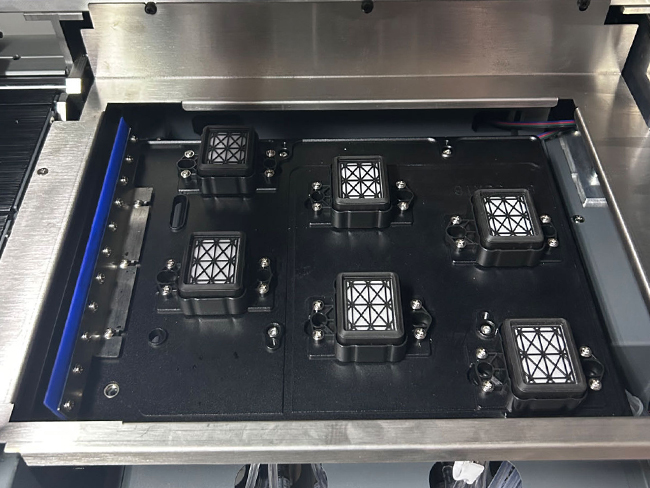

| Print head cleaning | Automatic | |||||
| Heating method | Front guide plate heating (30~65°C) | |||||
| Platform suction adjustment | Yes | |||||
| Working environment | Temperature 20~28°C | |||||
| Relative humidity | 40-60% | |||||
| Software | Maintop | |||||
| Operating system | XP/ Win7/ Win10 | |||||
| Rewinding function | Automatic induction rewinding | |||||
| Rated power | 350W | |||||

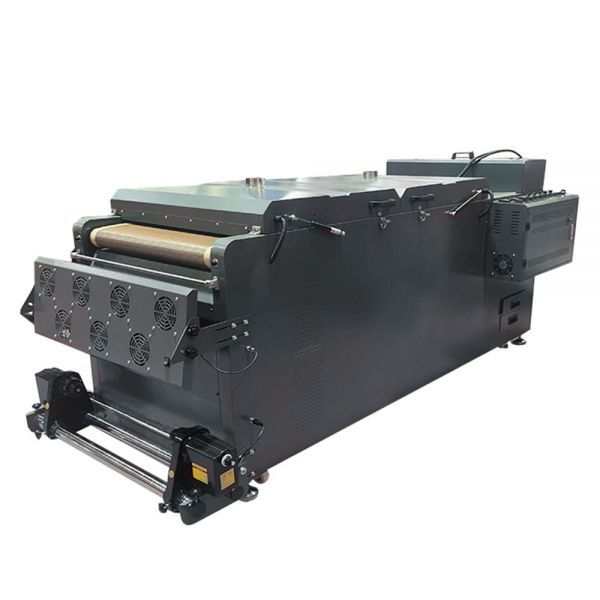

| Powder Shaker and Dryer | ||||||
| Shake powder width | ≤650mm | |||||
| Applicable medium | Nylon, chemical fiber, cotton, leather, swimsuit, diving suit, PVC, EVA, etc. | |||||
| Fan control | Shake powder control, dusting control, direction and quantity control | |||||
| Heating and drying function | Front guide plate heating, upper drying and curing, cold air cooling function | |||||
| Rewinding function | Automatic induction winding | |||||
| Number of heating pipes | 14pcs | |||||
| Rated voltage | 220V | |||||
| Rated current | 45A | |||||
| Rated power | 9800W | |||||

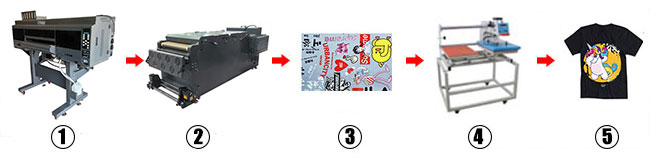

Digital printing solution:
1. Pictures typesetting and printing out
2. Powder feeding, shaking, drying, rewinding
3. Pictures waiting for heat transferring
4. Heat transferring
5. Finished printing effect
Details:
1. Powder feeding shaft: automatic powder feeding, evenly spreading powder.
2. Smoke outlet: It can be equipped with a smoke extractor, which is environmentally friendly and pollution-free.
3. Drying zone: Lengthen and widen the drying heating zone to evenly heat the screen.
4. Control panel: Chinese and English button panel, simplified operation, easy to understand.
5. Intelligent take-up device: The resistance of the take-up device can be adjusted, and the maximum load-bearing capacity of the thickened 5cm steel pipe is 70kg.
6. Powder shaking motor: Stepless speed regulation, shaking powder cleanly.

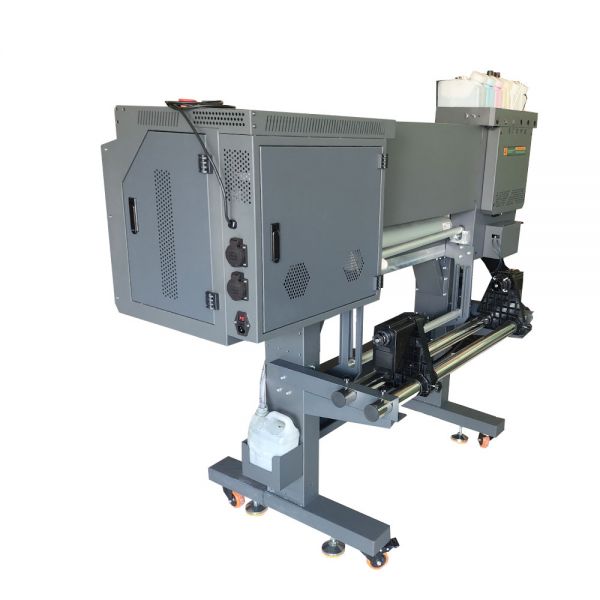

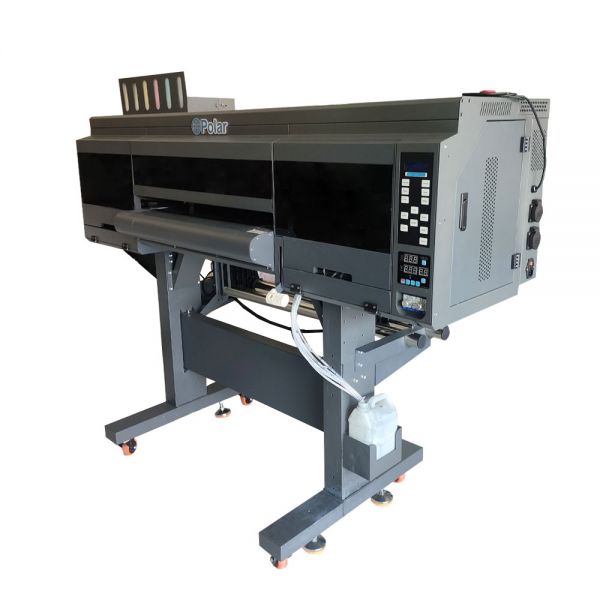

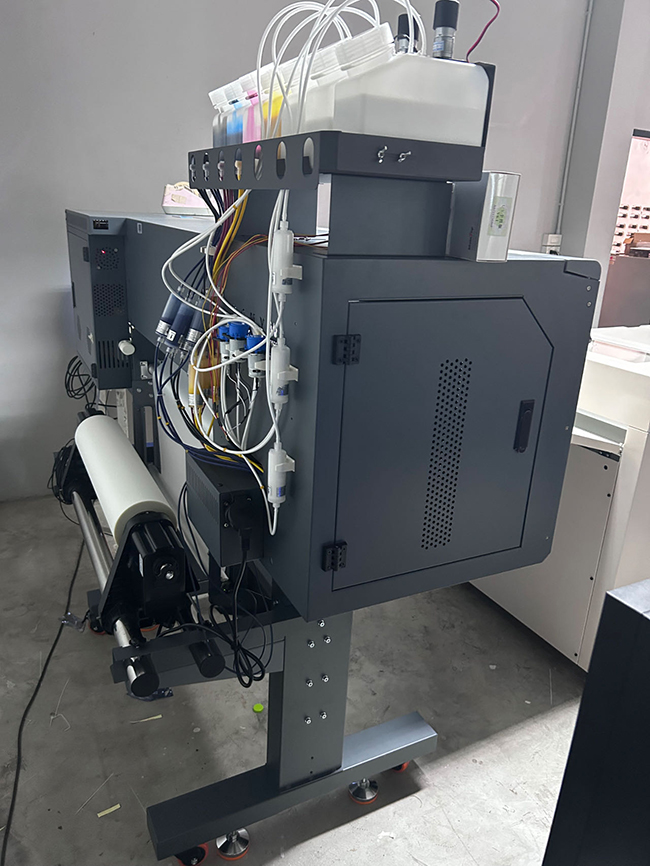

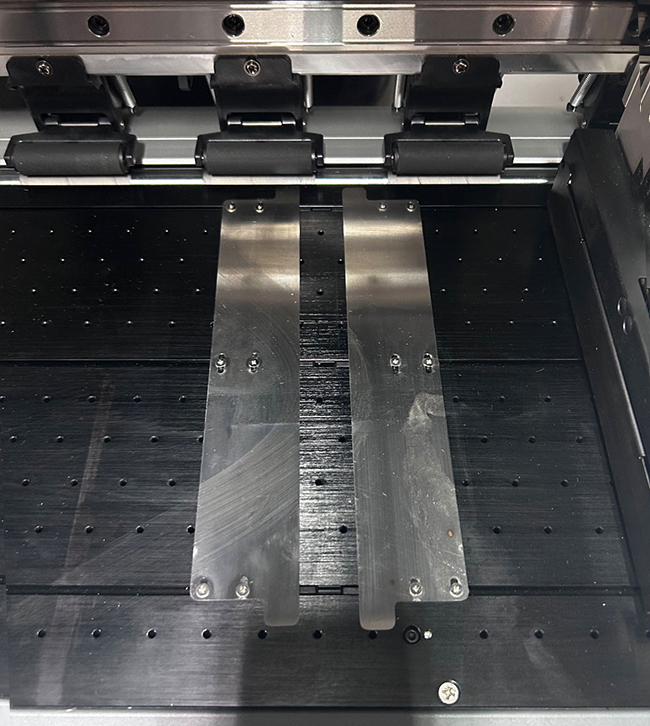

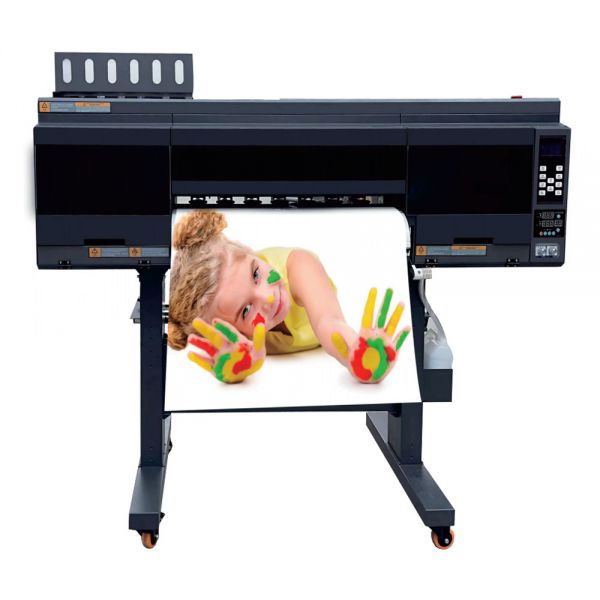

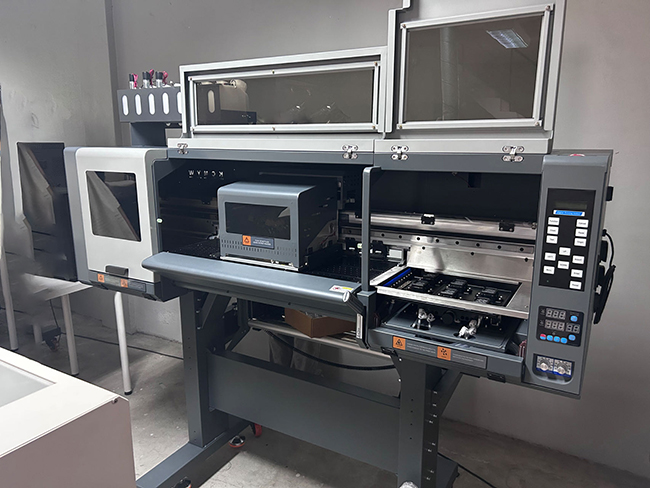

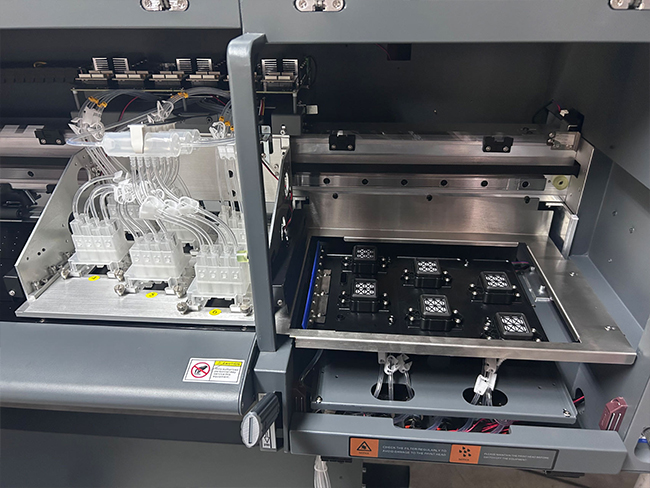

Product photos:
Applications:
