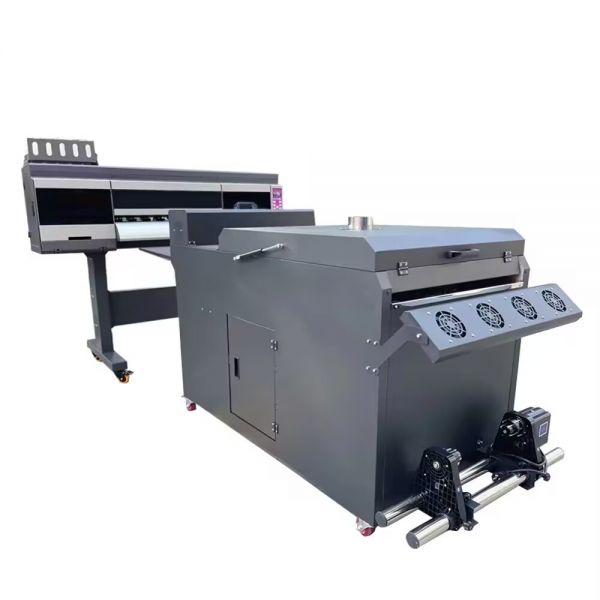

650 DTF Printer Powder Shaker and Dryer with 4 Epson Printheads
Features:
- Universal matching, easy to use, labor saving.
- Digital offset heat transfer, one-time forming.
- Suitable for industries such as digital printing.
- No engraving, no waste discharge, no engraving, no white edges, environmental protection.
Specifications:
| Printing width | ≤680mm | ||
| Print Head | Epson | ||
| Print head qty. (pc) | 4 | 5 | |
| Printing speed | 4pass | 28 m²/h | 39m²/h |
| 6pass | 21 m²/h | 31m²/h | |
| 8pass | 14 m²/h | 20m²/h | |

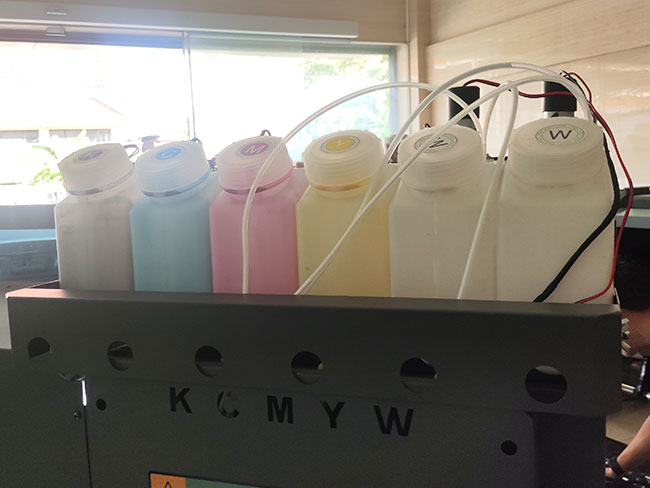

| Print color | CMYKW(Optional 8 colors) | ||
| Suitable media | PET film | ||
| Heating and drying function | Front guide plate heating, solidified upper drying, and cold air cooling function | ||
| Print head cleaning | Automatic | ||
| Heating method | Front guide plate heating (30~65°C) | ||
| Platform suction adjustment | Yes | ||
| Working environment | Temperature 20~28°C | ||
| Relative humidity | 40-60% | ||
| Software | Maintop | ||
| Operating system | XP/ Win7/ Win10 | ||
| Rewinding function | Automatic induction rewinding | ||
| Rated power | 350W | ||
| Powder Shaker and Dryer | |||
| Shake powder width | ≤650mm | ||
| Applicable medium | Nylon, chemical fiber, cotton, leather, swimsuit, diving suit, PVC, EVA, etc. | ||
| Fan control | Shake powder control, dusting control, direction and quantity control | ||
| Heating and drying function | Front guide plate heating, upper drying and curing, cold air cooling function | ||
| Rewinding function | Automatic induction winding | ||
| Rated voltage | 220V | ||
| Rated current | 23A/45A | ||
| Rated power | 5200W/9800W | ||
| Packaging size | 1900x980x1170mm 220kg/2680x900x800mm 280kg | ||

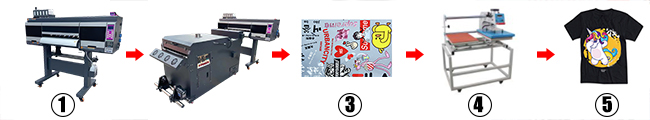

Digital printing solution:
1. Pictures typesetting and printing out
2. Powder feeding, shaking, drying, rewinding
3. Pictures waiting for heat transferring
4. Heat transferring
5. Finished printing effect
Details:

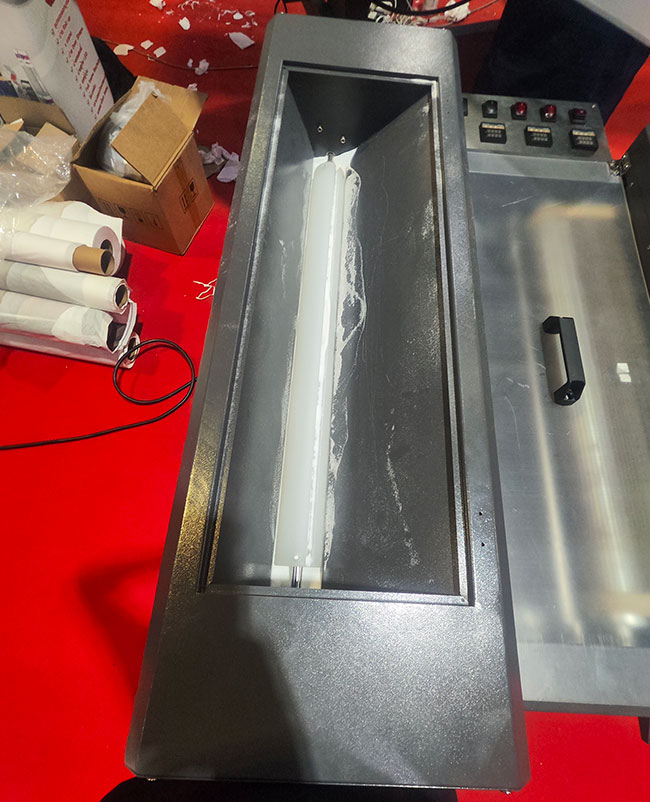

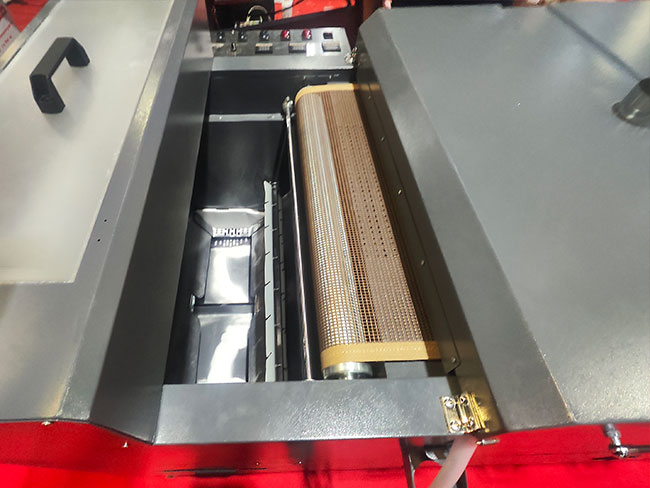

1. Powder feeding shaft: automatic powder feeding, evenly spreading powder.
2. Smoke outlet: It can be equipped with a smoke extractor, which is environmentally friendly and pollution-free.

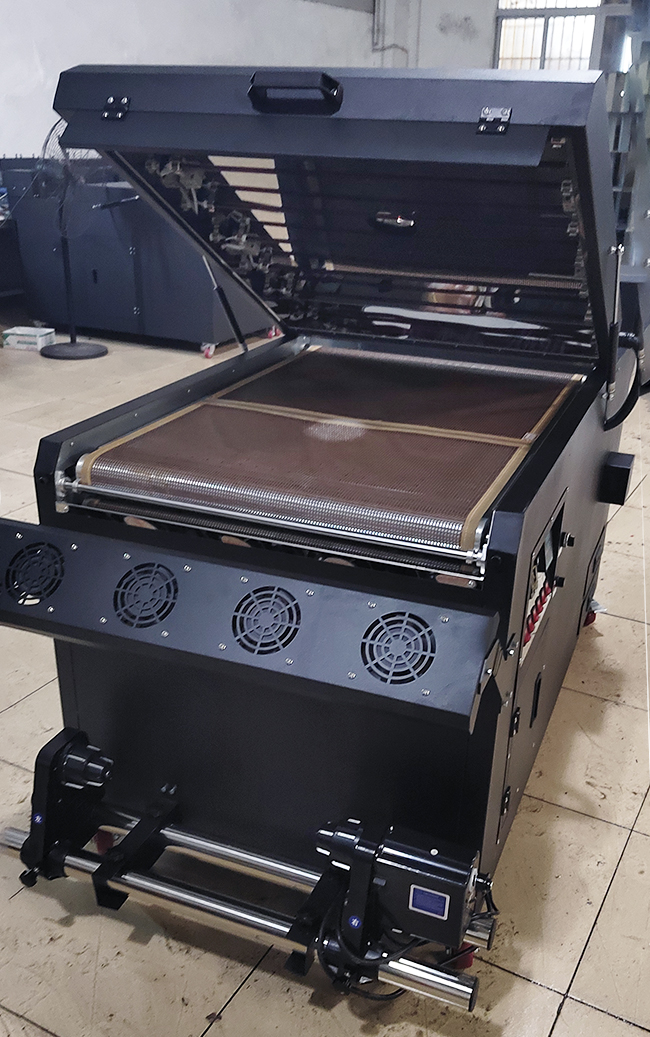

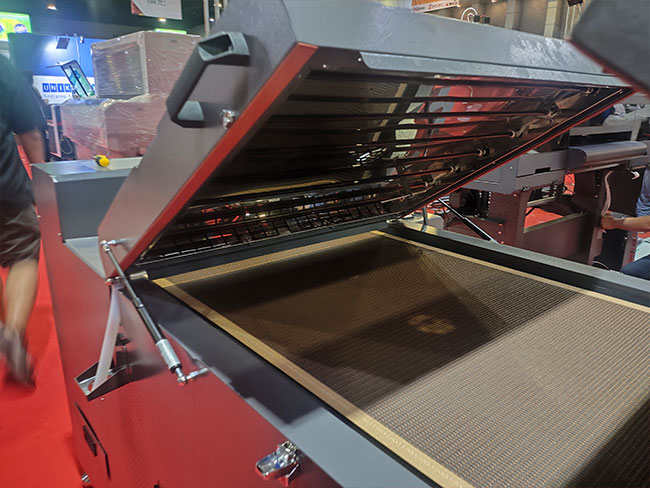

3. Drying zone: Lengthen and widen the drying heating zone to evenly heat the screen.

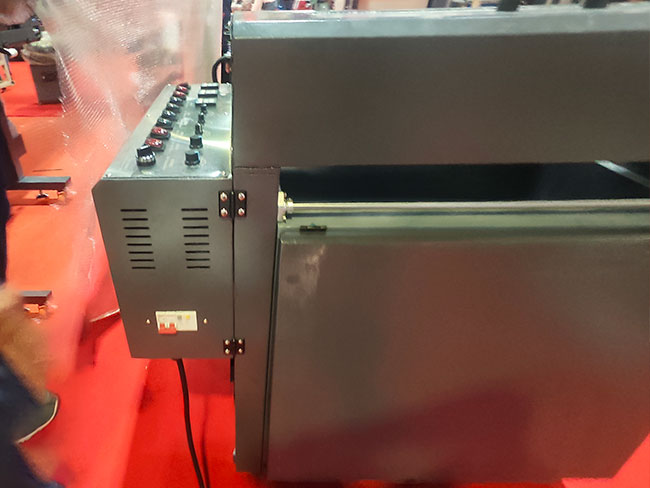

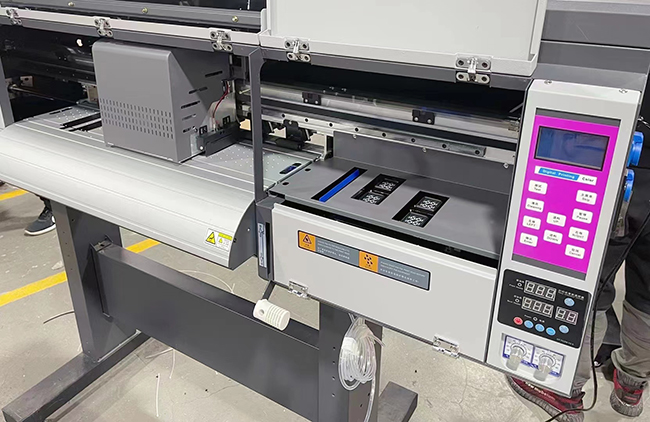

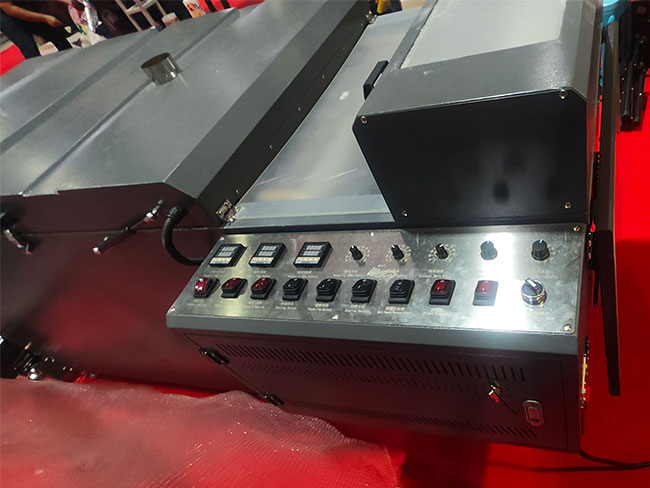

4. Control panel: Chinese and English button panel, simplified operation, easy to understand.

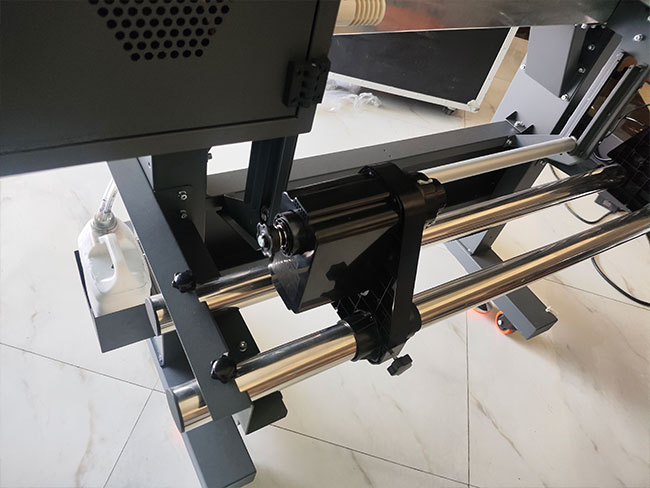

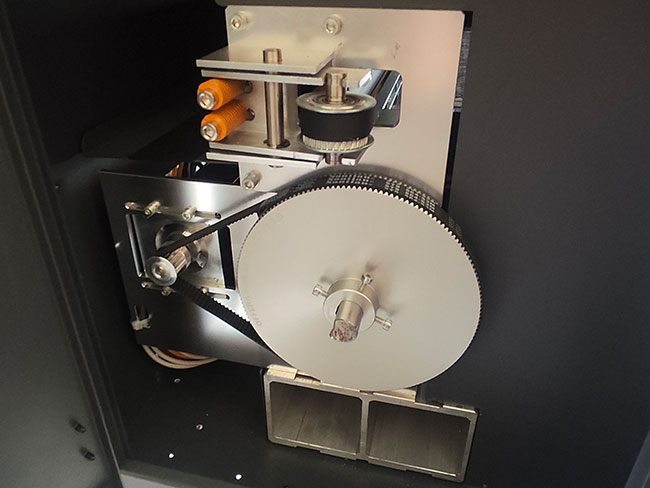

5. Intelligent take-up device: The resistance of the take-up device can be adjusted, and the maximum load-bearing capacity of the thickened 5cm steel pipe is 70kg.
6. Powder shaking motor: Stepless speed regulation, shaking powder cleanly.
Tips:The machine defaults to waveform number 4. If the printing effect is not satisfactory, the machine's default waveform can be changed to 6.

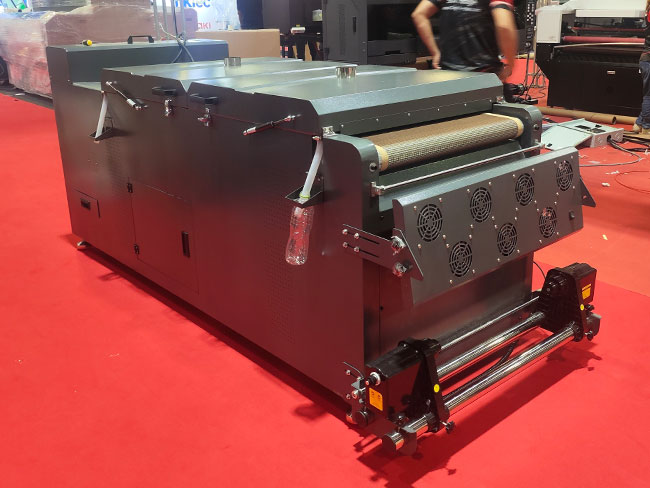

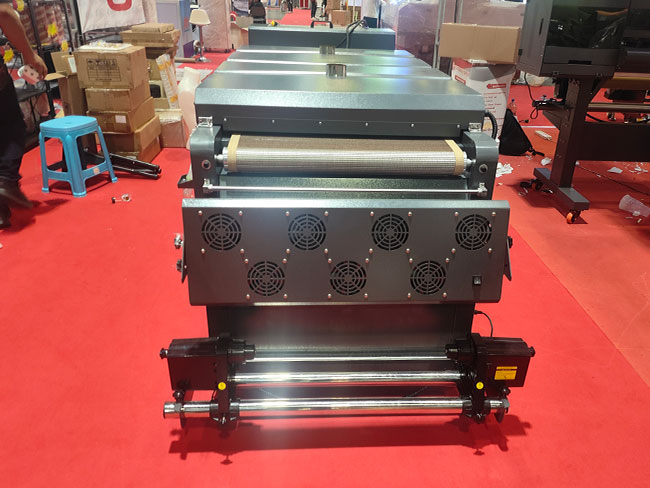

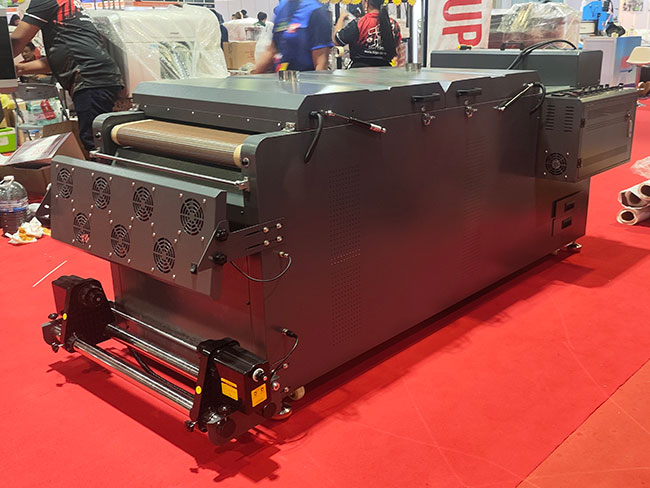

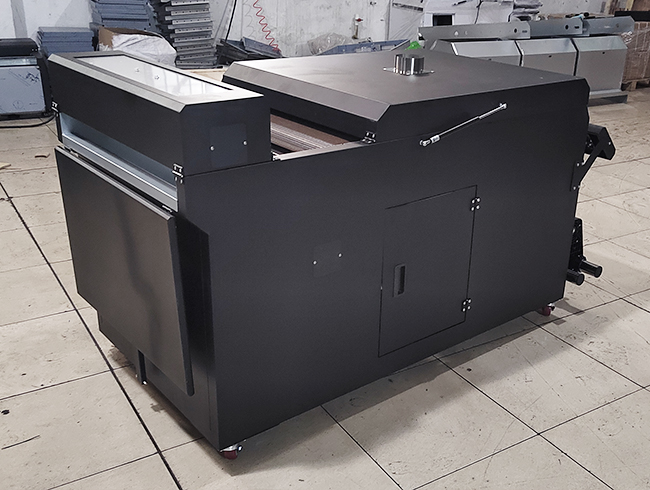

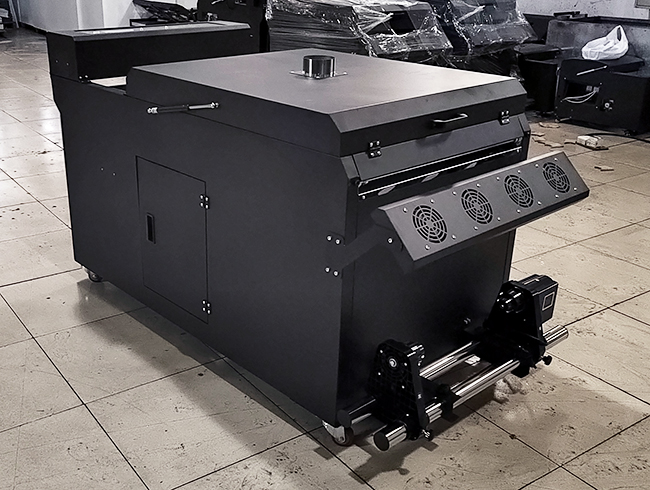

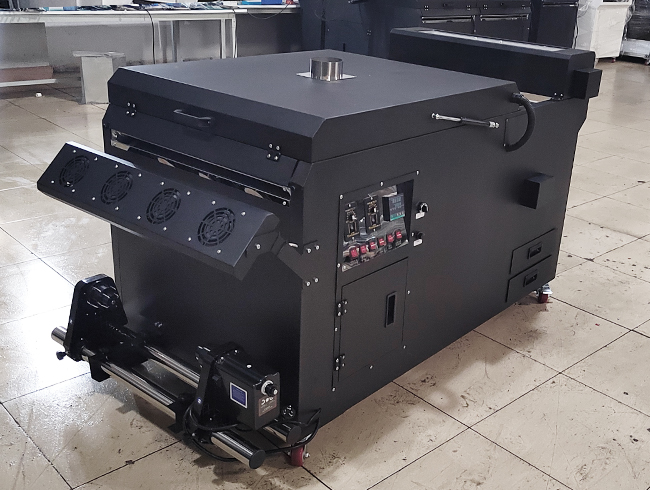

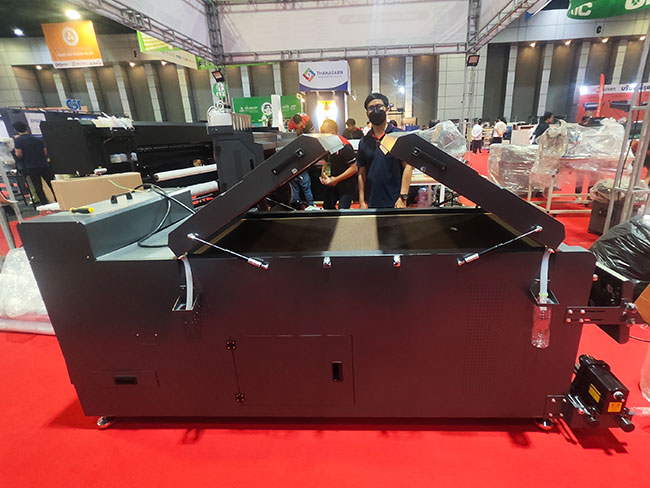

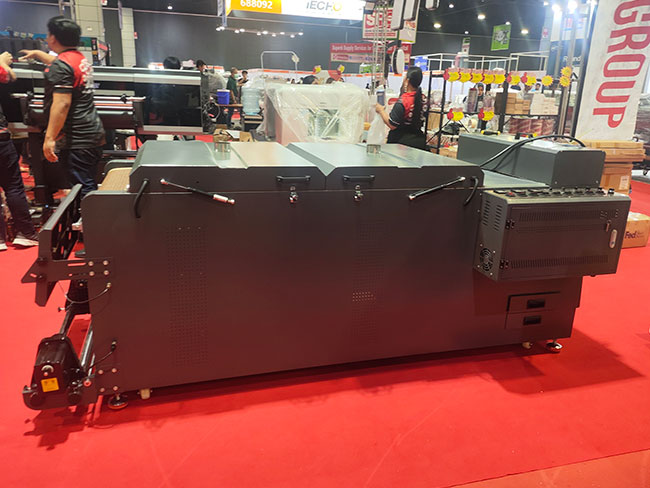

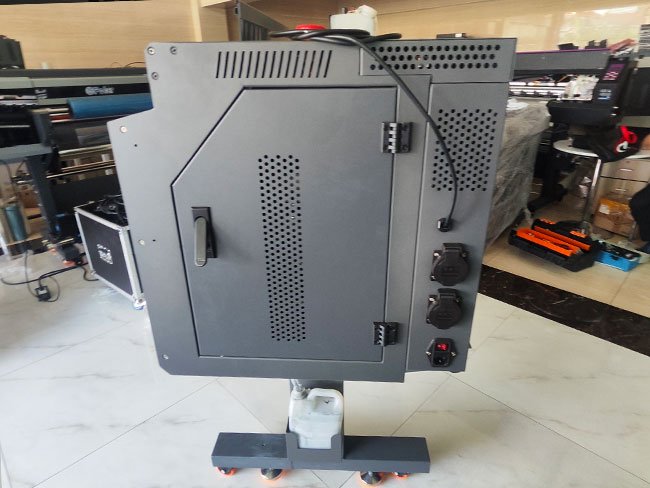

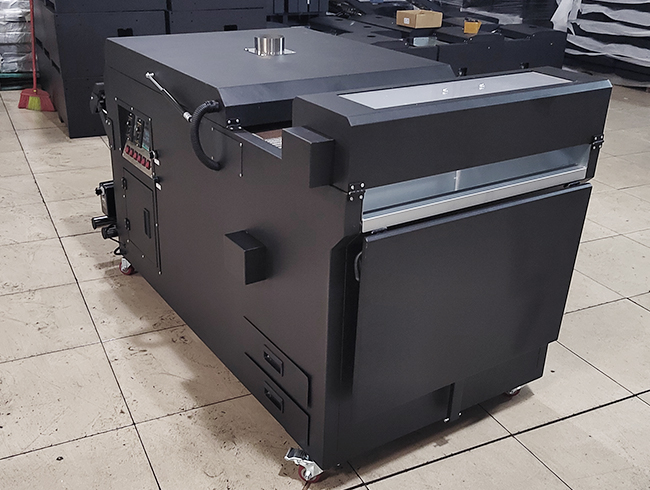

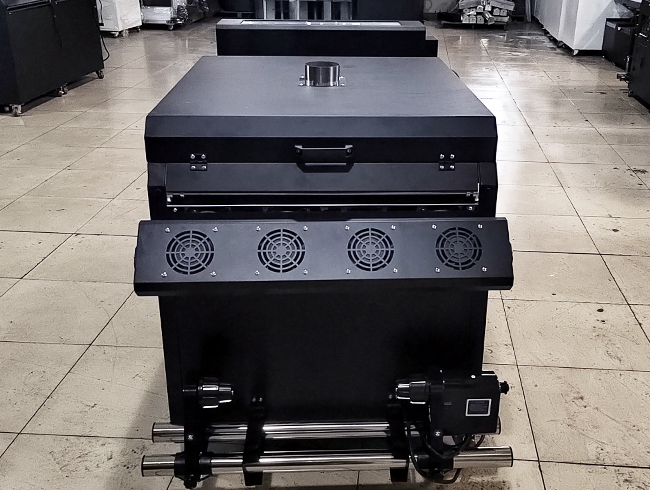

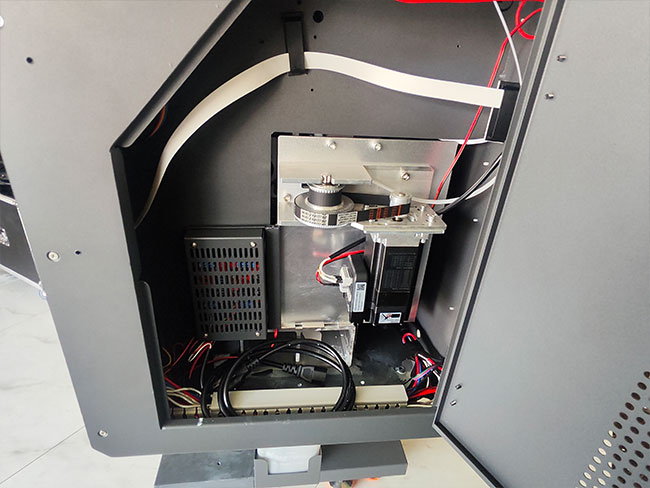

Product photos:

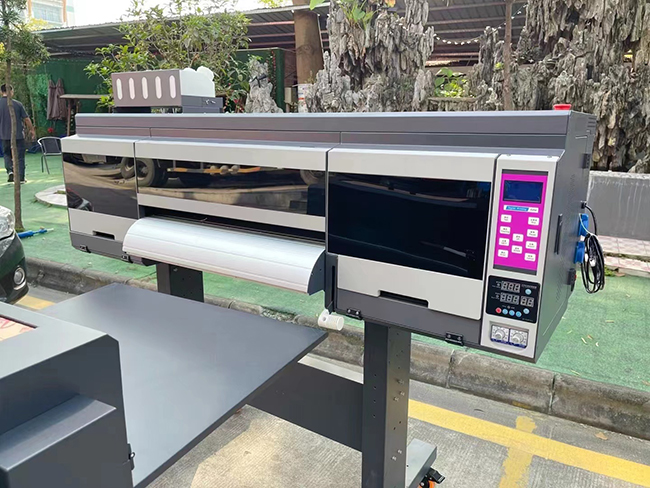

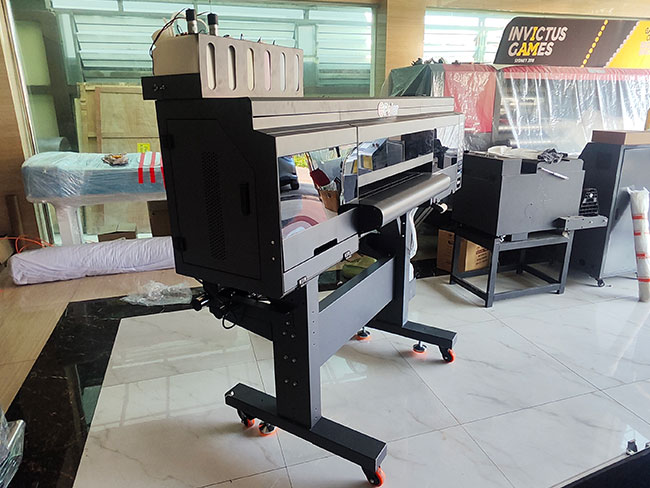

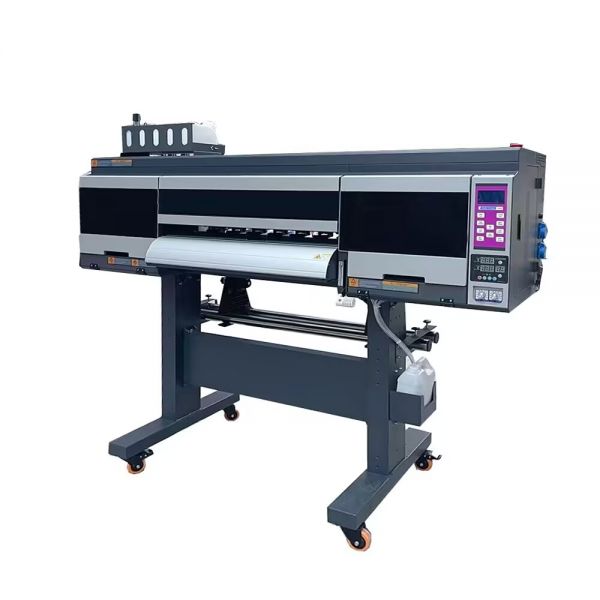

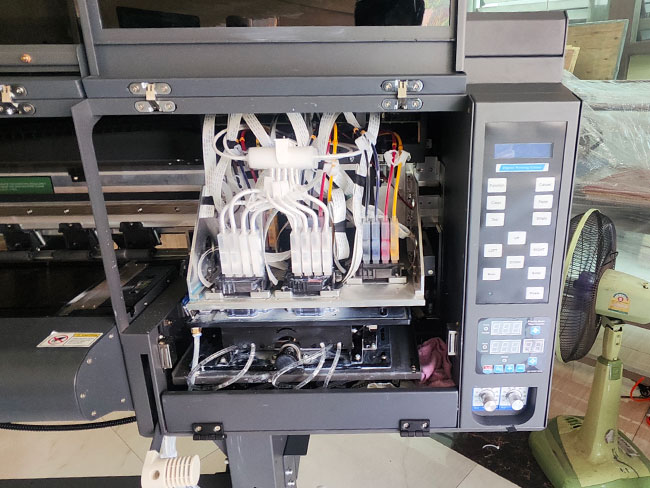

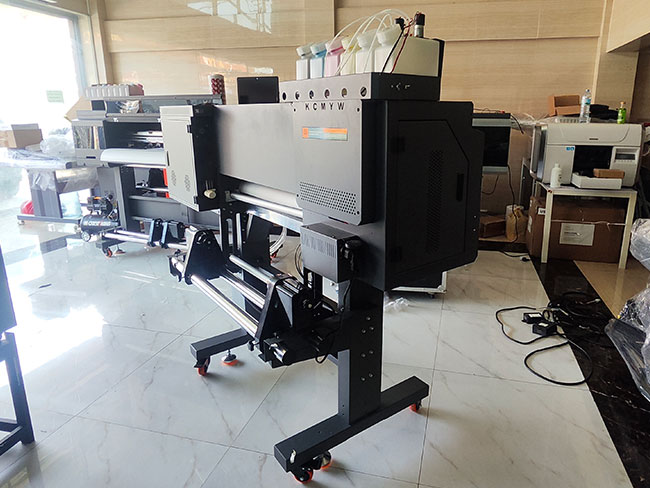

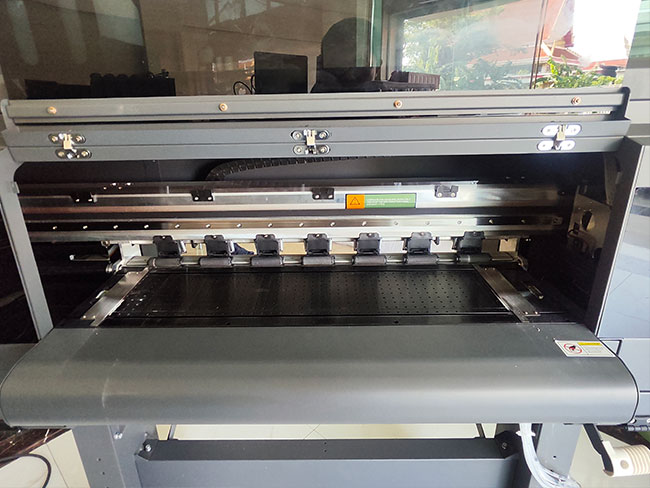

4 Printheads:
5 Printheads:
Applications:
