Features:

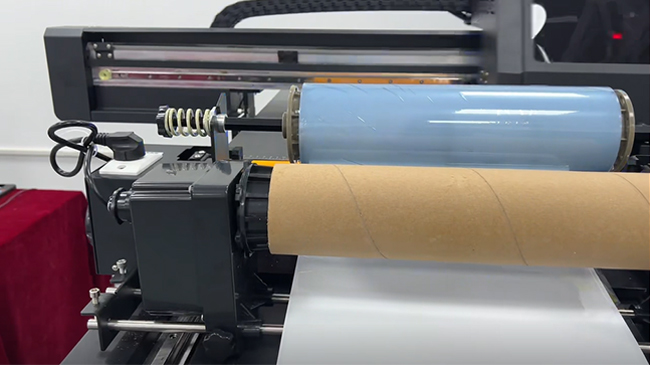

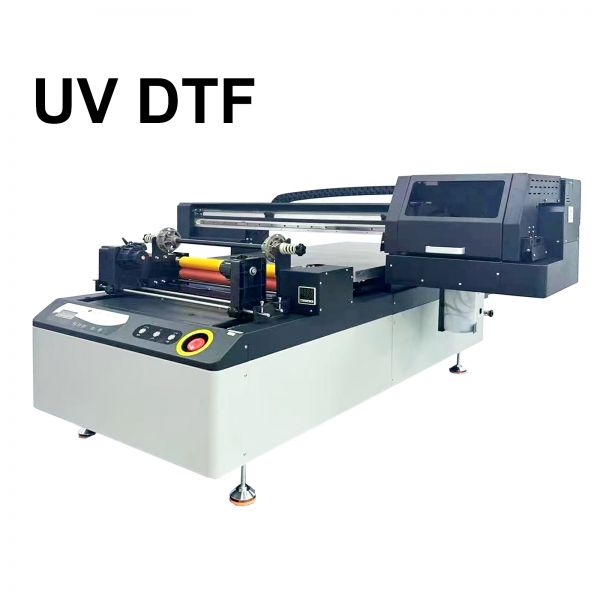

-This machine can also print UV DTF film,film width is less than 58cm;
- Personalized design, unique suction platform to ensure flat printing;
- Support CMYKLcLm+W+V printing at same time with fast speed, high efficiency and time saving;
- Compared with the modified machine, more compact structure, less application boards, more stable performance, and more convenient maintenance;
- Epson 3200 printhead, cost-effective, high precision, easier to maintain and replace;
- Intelligent ink supply system: new board control, built-in ink heating system, ink circulation in the ink tube to prevent ink precipitation;
- New ink stack design, cleaning and moisturizing function, ink car self-locking function, lock the ink cart when not printing, prevent the ink stack from rebounding;
- Independent flashing setting: designed for printhead flashing, which makes the printhead use more smoothly. The aluminum beam is equipped with an air purification system to remove dust, moisture and other interference printing factors.
Description:
Our ink delivery system prevents the white ink from clogging Printhead. Hassel-free operation. Breaking through the bottleneck of digital printing technology, can achieve a piece of paper printing, no plate-making, full-color image printing. The original design and manufacture was mainly used for the printing of rigid materials, which broke the limitation that inkjet technology can only print on soft materials.
Specifications:
| Print size |
600*900mm |
| Print Head |
i3200U*3 |
i1600U*3 |
XP600*3 |
| Print speed |
4pass |
9m²/h |
6m²/h |
4m²/h |
| 6pass |
7m²/h |
5.7m²/h |
3m²/h |
| 8pass |
5m²/h |
3.4m²/h |
2m²/h |
| Print color |
CMYKLCLM+W or CMYK LC LM+W+Varnish |
| Print resolution |
1440dpi, 720dpi, 360dpi |
| Control Software |
Maintop RIP Software |
| Thickness of Material |
1-100mm |
| UV Cooling System |
Water cooling |
| Height Adjustment |
10-150mm(Manually) |
| Ink and Ink System |
LED UV ink and Intelligent ink system |
| Power |
660W |
| Picture mode |
Tiff, JPG, EPS, PDF |
| Fixed platform |
Adsorption platform |
| Interface mode |
USB3.0 |
Details:
xp600：
Standard:
Optional:
Application:
For printing gifts, crafts,paper, glass,cup,mobile phone cell, glass, acrylic, PVC,boards ,leather, canvas,etc.
