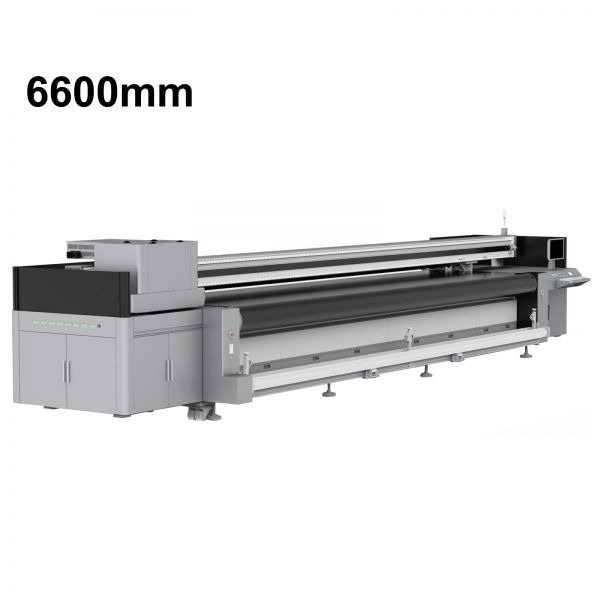

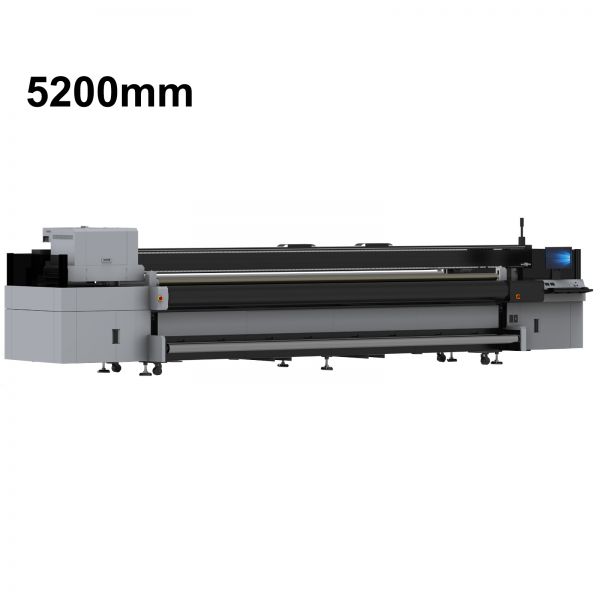

5.2m/6.6m Hybrid UV Printer With Konica 1024A Printheads
6.6m KM1024A-16H
Precio unitario
COP 537.365.126
/set
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1
0%
COP 537.365.126
Opciones
Por Favor Eliga el Tipo Por Favor Eliga el Tipo
Costo total
COP 537.365.126
Cantidad
/set
1
| Model | H5300 | H6600 |
| Driver Software | Microsoft Windows 10 | |
| Printing Height | 0-50mm | |
| Conveyor Method | wire mesh conveyor belt | |
| Printing Size | 5200m | 6600mm |
| Printhead quantitiy | 4-48 | |
| Printhead | Konica 1024A | |
| RIP Software | Printfactory/Caldera | |
| Printing Color | LCLMLYLK; RGB; OWV | |
| Lifting System | Automaticlifting of print head /automatic monitoring of print height | |
| Ink System | Continuous ink supply/ink tank 5000ml/subtank constanttemperature and pressure/white auto stirrer | |
| Curing system | UV lamp curing | |
| File Format | TIFF(RGB&CMYK)BMP、 PDF、EPS、JPEG、etc. | |
| Power Requirements | AC220V(+10%);50HZ;P:12000W | |
| Printer Weight | 6800kg | 8500kg |
| Printer Dimension | 8166x2140x1770mm | 9670x2150x1900mm |
| Printing Precision | 1440DPI (max) | |
| Working Environment | Temperature:20°C-30°C/Humidity:40-70% | |
| Data Interface | High speed USB transfer interface/Gigabit networkinterface | |
| Standard Solution | CMYK, Ic, Im, ly. Ik, R, G, B, O, W. V (Optional colors) | |
| Print Speed | High Speed Mode (4PASS) | Production Mode (6PASS) | High Quality Mode (8PASS) |
| Gradient Weak | 236m²/h | 156m²/h | 118m²/h |
| Gradient Medium | 187m²/h | 125m²/h | 94m²/h |
| Gradient Strong | 156m²/h | 1044m²/h | 78m²/h |
| Uniform Weak | 125m²/h | 89m²/h | 69m²/h |
| Uniform Medium | 104m²/h | 78m²/h | 62m²/h |
| Uniform Strong | 89m²/h | 69m²/h | 56m²/h |
Ultra wide mesh beltprinting platform
The mesh belt printing platform issupported by aerospacealuminum suction platforms,which can make machine operation more stable and with higher accuracy.Roll material-sprinting and flatbed material sprinting modes are supported Theultra-wide-format mesh belt printing platform offersbroader application possibilities.
