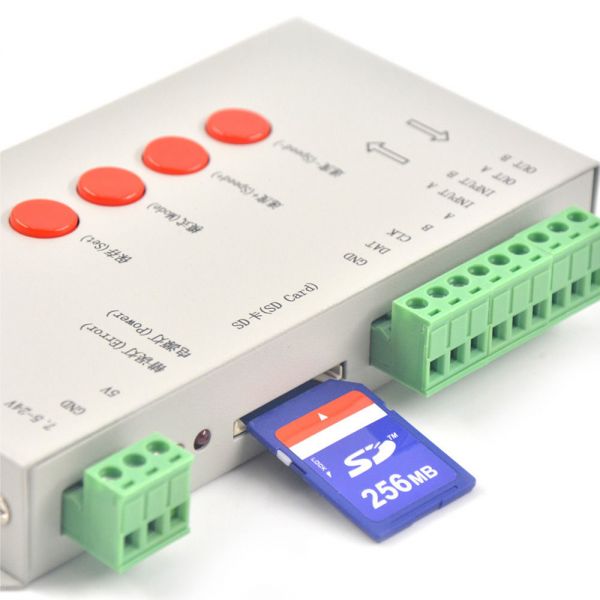

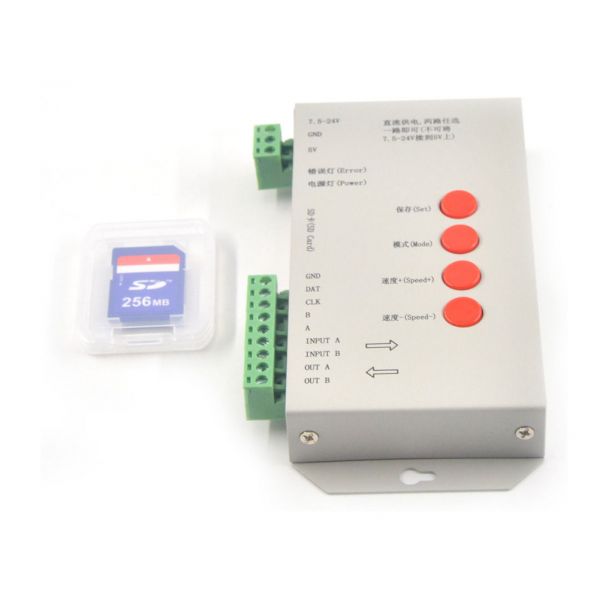

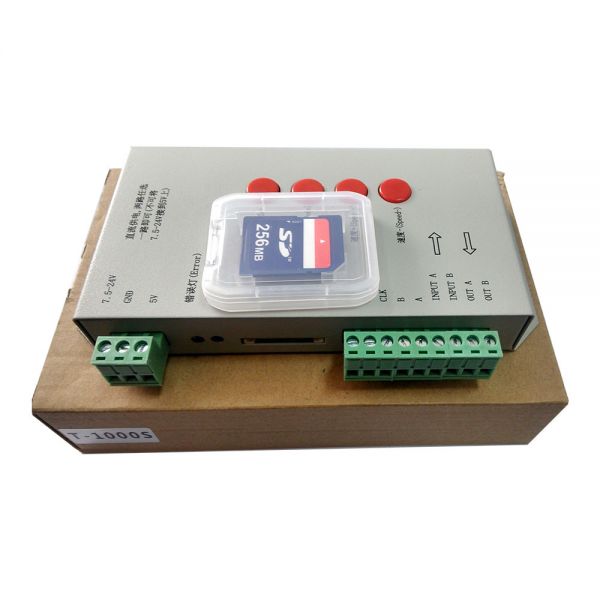

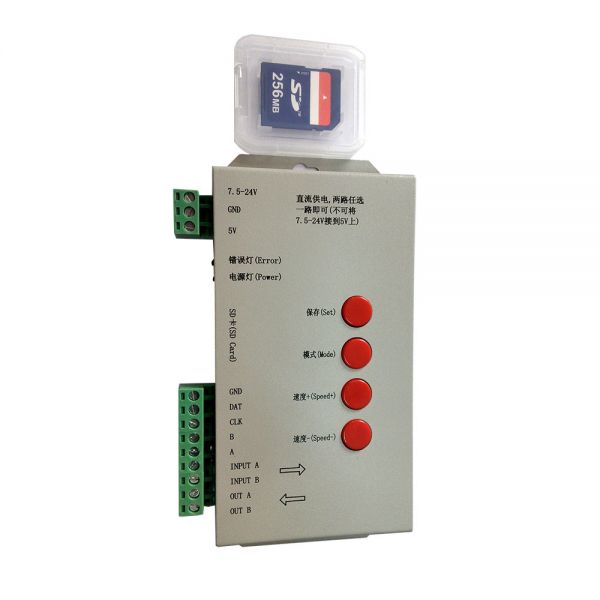

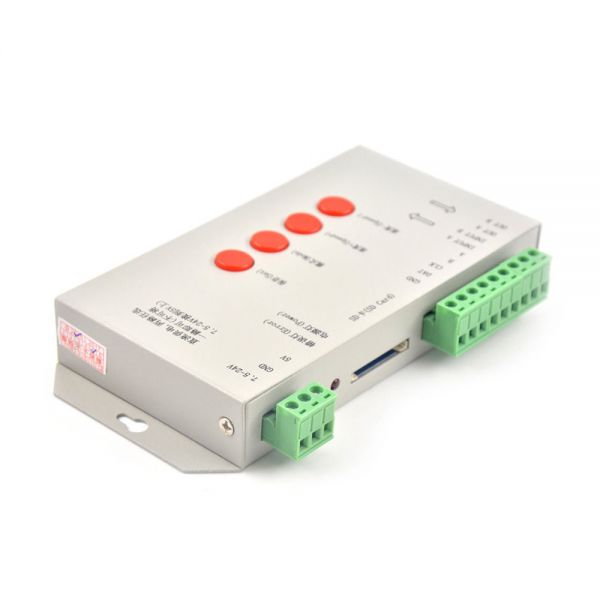

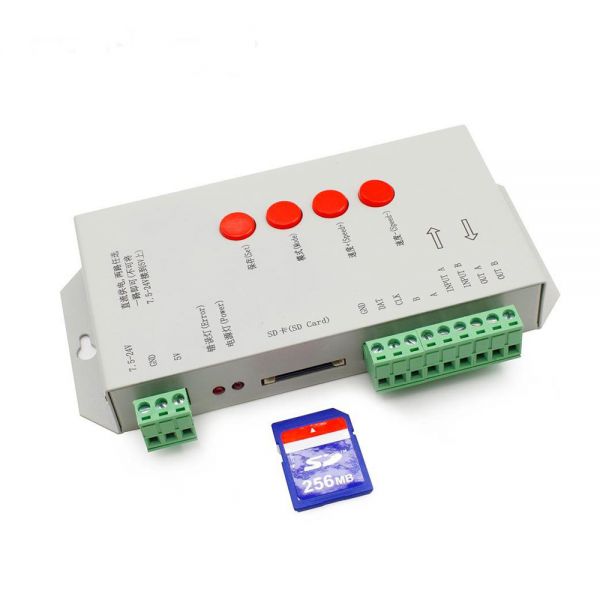

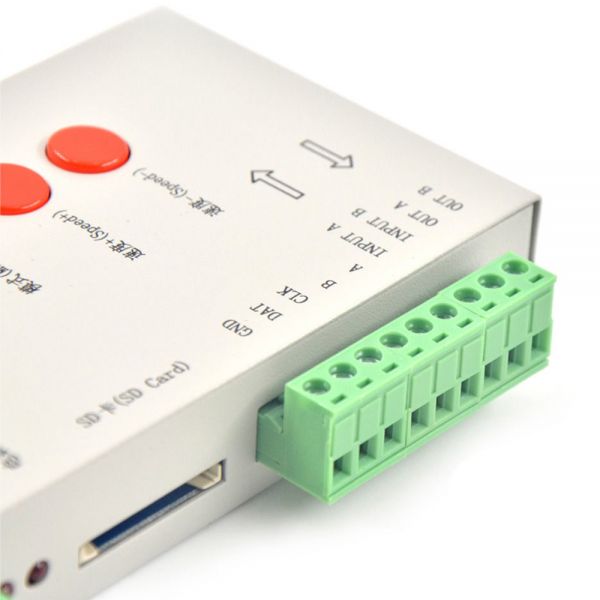

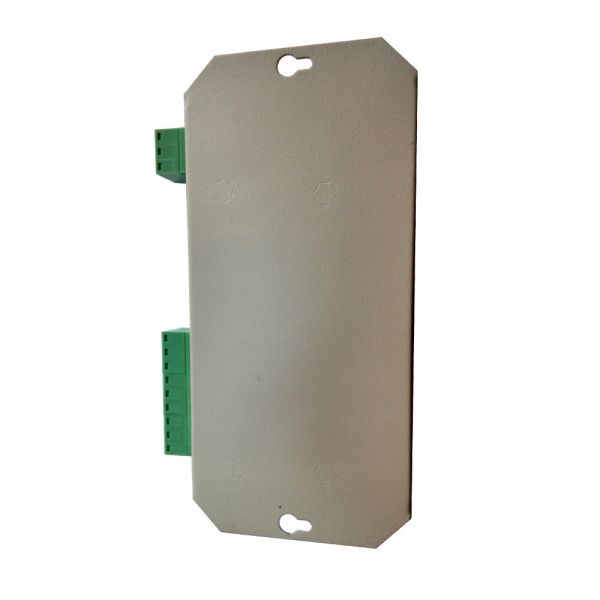

5-24V T1000S SD Card LED Pixel Controller WS2812B 6803 WS2811 RGB LED Strip
Precio unitario
COP 217.669
/unidad
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1
14%
COP 217.669
Costo total
COP 253.103
COP 217.669
Cantidad
/unidad
1
Feature:
Input voltage: 5V-24V
Dimensions: 6.30 in x 2.95 in x 0.91 in (16.0 cm x 7.5 cm x 2.3 cm)
Weight: 230g
Number of programs: 16 MAX
MAX number of pixels: 2048
Compatible with single line or double line chips.
32-256 Gray, Support software Gamma correction.
Support the rules and special-shaped handle.
Single-port output, can support 2048 lights.

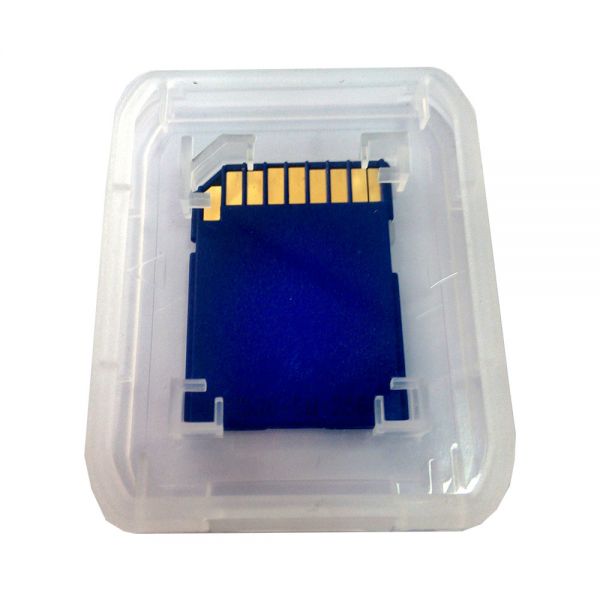

Off-line(SD Card) control, play back content stored in the SD card.
T-1000S store a maximum of 16 programs, copy multiple files to the SD card in order after formatting the SD card as "FAT" format.
The program must be named in orders . Ex. : 00_1.led, 01_1.led, 02_1.led.
| Support Chips | ||||||
|
Software code& |
|
|
|||
| Controller type | ||||||
| LPD6803,D705,1101,6909,6912 | T-1000-6803 | 2048 pixels | ||||
| LPD8806,LPD8809 | T-1000-8806 | 2048 pixels | ||||
| TM1803,TM1804,TM1809,TM1812 | T-1000-TM | 2048 pixels | TM1804 and TM1809 are divided into high and low | |||
| TM1903，TM1904，TM1909，TM1912 | T-1000-TM19 | 2048 pixels | ||||
| UCS6909，UCS6912，UCS7009，UCS5903 | T-1000-UCS-32 | 2048 pixels | ||||
| UCS1903，UCS1909，UCS1912 | T-1000-UCS-256 | 2048 pixels | 1903 and 1909 are divided into high and low | |||
| UCS3903 | T-1000-UCS-1024 | 2048 pixels | ||||
| DMX512 | T-1000-DMX | 170/512 pixels | Compatible with standard DMX512 | |||
| WS2801,WS2803 | T-1000-WS | 2048 pixels | ||||
| WS2811 | T-1000-WS2811 | 2048 pixels | WS2811 be divided into high and low | |||
| DS189 | T-1000-DS189 | 2048 pixels | ||||
| TLS3001,TLS3002，TLS3008 | T-1000-TLS | * pixels | ||||
| P9813 | T-1000-P9813 | 2048 pixels | ||||
| SM16715 | T-1000-SM16715 | 2048 pixels | SM16715 be divided into high and low | |||
| SM16716 | T-1000-SM16716 | 2048 pixels | ||||
| BS0901,BS0902 | T-1000-0901 | 2048 pixels | ||||
| BS0815 | T-1000-0815 | 2048 pixels | ||||
NOTE:
When T1000S controller load less than 512 pixels the frame rate can reach 30fps.
When T-1000s control more than 512 pixels the frame rate will slow down automatically.
Trouble Shooting:
Question 1: After power, the T-1000S ERROR indicator has been flashing without display output
Answer: The ERROR indicator has been flashing means the controller did not read the card correctly, possible problems:
①SD card is empty, with no effect file.
②The effect file in the SD card and the controller model are not match, please choose correct controller model in LedEdit and then re-create the effect file *led.
③SD card did not format to FAT before copy effect files.
④Please check the supply power voltage, the controller can be individually powered to exclude power reasons
⑤Changing the SD card and then test to exclude the possibility of a bad SD card
Question 2: The controller is powered on, the indicator is normal, but the lamps have no effect change
Answer: The reasons for this are as follows:
① Check if the lighting′s signal line and the controller connected correctly
② If the TTL signal is received, the lamp and the controller must be common ground, that means connect the lighting′s and the controller′s ground together
③ Check if the model chose during making display files on the SD card match the chips used in the lighting
