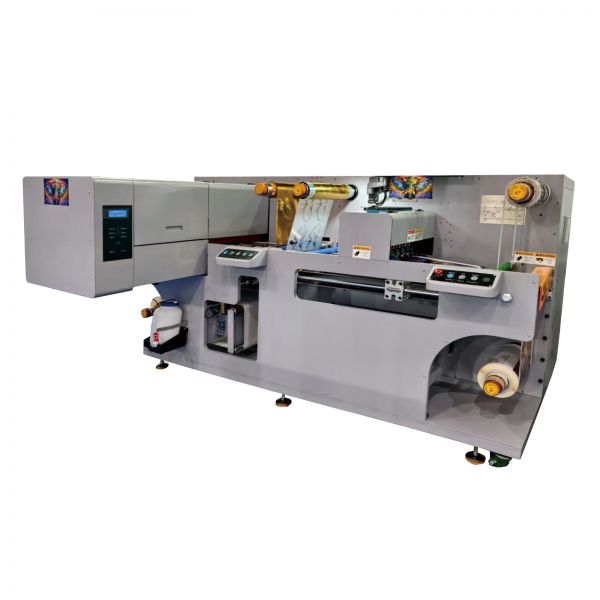

330mm All-in-One High Precision Digital UV Label Printer with Laminating Cutting and Slitting
UV330 all-in-one UV printer boasts exceptional performance and intelligent operation, integrating with post printing processes. It enables high - precision printing on diverse materials with high color fidelity, making it a flexible and highly efficient choice for revolutionary label
printing.
Features:
- Integrated Versatility: One Machine, lnfinite Possibilities. SH-MD UV330 combines printing, laminating, cutting, and slitting in one device, simplifying and enhancing your production process.
- Excellent Printing Performance: Whether it's white, varnish, or colored UV inks, the SH-MD UV330 provides excellent printing effects on various media, making your labels stand out on the shelf.
- High precision cutting: With ball screws and independent servo motors, it achieves +0.1mm cutting accuracy for flawless labels.
- Wide Range of Applications: From food packaging to electronic product identification,from cosmetic labels to industrial data encoding,the UV330 can easily handle it all.
Specification:
| Model |
UV330 |
| Maximum Roll Diameter |
350 mm |
| Maximum Media Width |
330 mm |
| Print head |
EPSON i3200-U1x4 |
| Ink Type |
UV Ink |
| Ink Colors |
CMYK+W+V, CMYK |
| Ink Bottle Capacity |
1L |
| Printing Speed |
4pass:56m/h |
| 6pass:40m/h |
| 8pass:28m/h |
| File Formats |
JPG PDF PNG |
| Cutting Length |
10-350 mm |
| Cutting Width |
10-320 mm |
| Repeat Die-cutting Accuracy |
士 0.1 mm |
| Number of Die-cutting Heads |
4 |
| Number of Slitting Knives |
standard 3 (optinal according to requirements) |
| Weight |
2000kg |
| Installed Power |
4kw 220V-240V 50Hz/60Hz |
| Dimensions(L*W*H) |
2500mm*1800mm*1700mm |
| Lining Specifications |
wide 330mm |
| Gold Foil Standard |
cold wave |
| Printing Resolution |
720*1200/ 720*1800/ 720*2400dpi |
| Maximum Printing Wight |
330*320mm |
| Minimum Printing Wight |
330*100mm |
| Maximum Printing Length |
10000mm |
| Minimum Printing Length |
0.5mm |
| Printing Accuracy |
accuracy |
| Thickness of Printing Materials |
less than 300g |

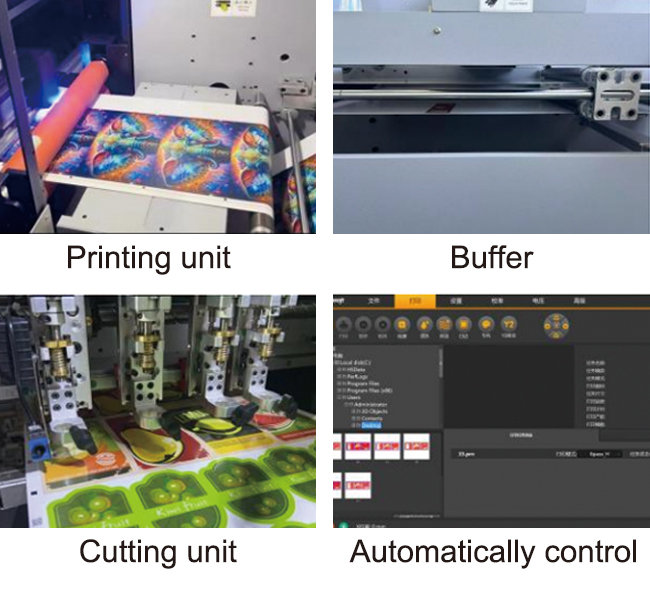

Details:
- Equipped with 4 EPSON i3200-U1 print-heads. it enables high -speed printing of four colors plus white and gloss varnish, enhancing label texture and visual appeal. It handles both small and large orders with.
- The buffer stores label design data in real time and auto compensates for speed differences between printing and cutting, preventing film stretching,deformation, or wrinkle formation.
- The cutting unit uses servo motors controlled pressure,eliminating manual adjustment. reducing downtime.and boosting production efficiency.
- Self-developed interface enables color, speed, and database integration, making the entire process easy to learn and operate.
Application:
