3220 Digital UV Flatbed Printer With 4 Rows of KONICA 1024a SHE Head (Industrial Model)
16-head
Precio unitario
COP 492.262.557
/set
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1
0%
COP 492.262.557
Opciones
Por Favor Eliga el Tipo Por Favor Eliga el Tipo
Costo total
COP 492.262.557
Cantidad
/set
1
3220 Digital UV Flatbed Printer With 4 Rows of Konica 1024i-6PL Head (Industrial Model)
Fetaure:
* Super high speed
* High-speed model

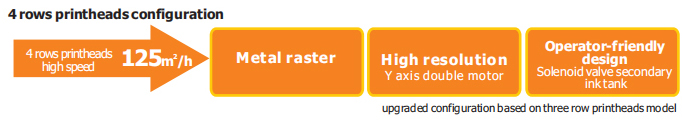

* 4 row printhead configuration
* weapon for mass productionof board materia
Specification:
| Machine model | UV3225(special order) |
| Printhead brand | KONICA1024I-6PL |
| Printhead arrangement | 4C+1W;4C+4C;4C+4C+2W;4C+4C+4C+4C(Optionalas required) |
| Color option | C/M/Y/K/LC/LM/W/V |
| Printing size | 3200mmx2500mm |
| Printing height | 100mm(Customized height to 450mm) |
| Printing media | Acrylic, wooden board, leather, phone shell, ceramic, glass, metal etc. |
| Negative pressure control system | Double negative pressure/positive&negative pressure alternative control |
| Printhead cleaning | Separate color purge ,automatic cleaning system |
| Platform type and resolution | Sectional aluminium alloy platform with scales, deviation less than 0.1mm |
| Ink circulation system | White ink circulation,automatic stirring system to avoid printhead clog |

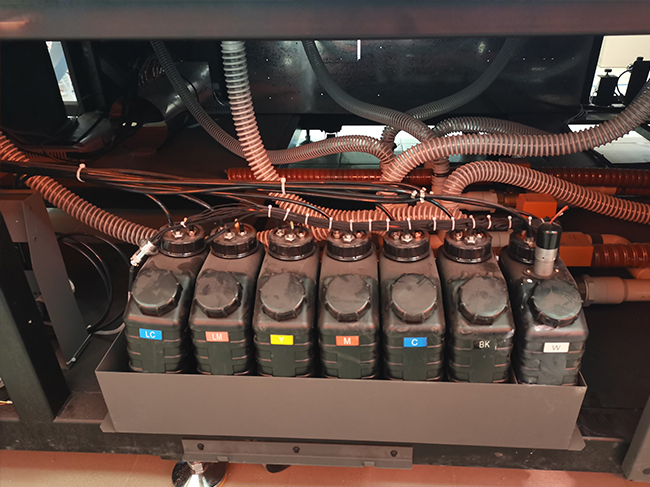

| Ink tank volume&ink level alarm | 4Link tank with ink level alarm equipment |
| Data transfer | USB3.0 standard port |
| Rated voltage and power | 220V/8000W |
| Curing lamp | LED |
| Servo motor | Imported motor |
| Guide rail | Famous brand muted double guide rail |
| Carriage height adjustment | Automatic |
| Printhead protection | Intelligent anti-crash equipment |
| Working environment | Temperature 20-35°C, humidity30%-70% |
| RIP software | PHTOPRINT, CALDERA |
| Picture format | Tiff, EPS, PSD, JPG, AI |
| Machine size | 5400(L)x2500(W)xH1400(H)mm |
| Package size | 5500(L)x2200(W)xH1800(H)mm |

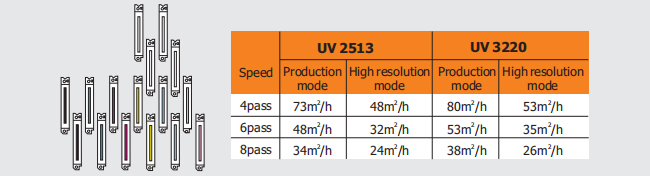

1.Double 6 color+ double rows of white configuration

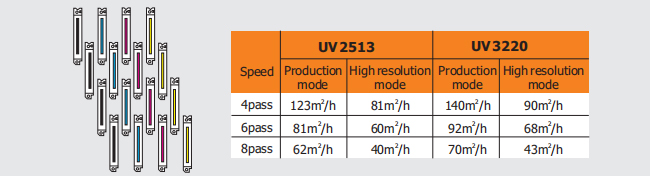

2. Four rows of CMYK
(Suitable for mass production, the industrial producers' preferred option)

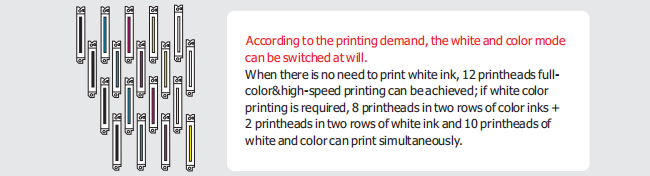

3.various color configuration between color and white
According to the printing demand, the white and color mode can be switched at will.
When there is no need to print white ink, 12 printheads full color & high-speed printing can be achieved; if white colorprinting is required, 8 printheads in two rows of color inks +2 printheads in two rows of white ink and 10 printheads of white and color can print simultaneously

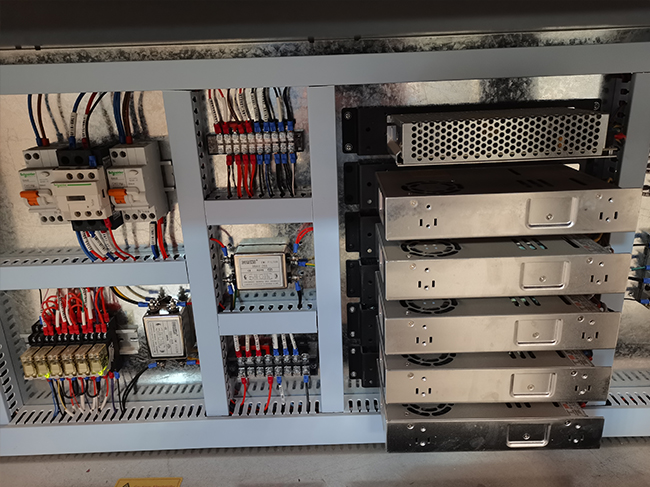

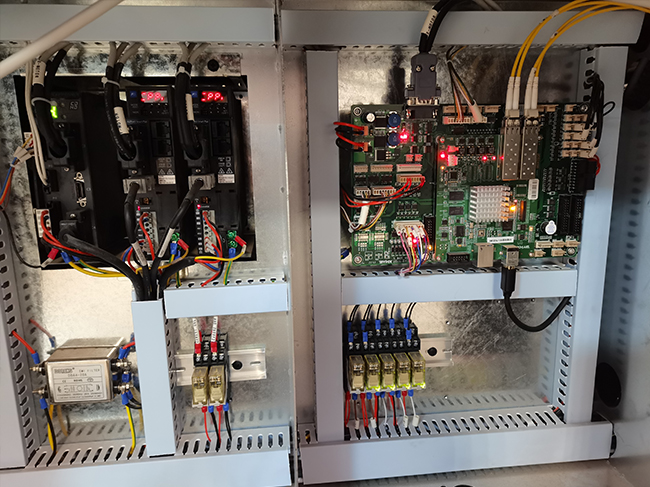

Details:
Application:
