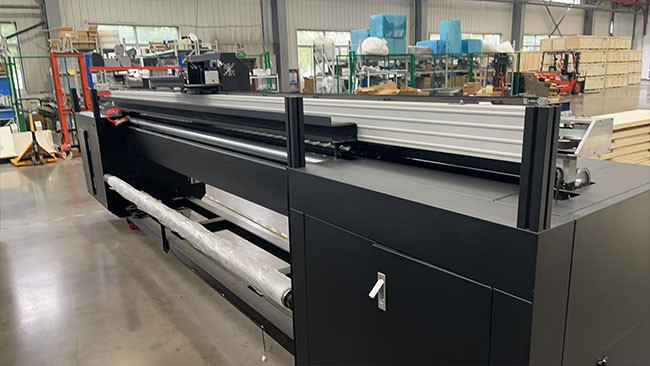

3.2m Roll to Roll UV Inkjet Printer With Ricoh Gen5 Printhead
3-head
Precio unitario
COP 141.464.958
/set
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1
0%
COP 141.464.958
Opciones
Por Favor Eliga el Tipo Por Favor Eliga el Tipo
Costo total
COP 141.464.958
Cantidad
/set
1
3.2m Roll to Roll UV Inkjet Printer With Ricoh Gen5 Printhead
Specification:
| Printhead | Industrial Piezoelectric Printhead AJ-3200uV Plus (4C*3) | |
| Print speed | External light speed mode 600*600dpi - 4pass | 67m²/h |
| External light quality mode 600*900dpi - 6pass | 45m²/h | |
| Internal light speed mode 600*900dpi - 6pass | 33m²/h | |
| Internal light quality mode 600*1200dpi - 8pass | 28.6m²/h | |
| Printing Resolution | 300dpi, 600dpi, 900dpi, 1200dpi | |
| Media | Width | 210–3250 mm |
| Thickness | 1 mm | |
| Material Diameter | Heavy-duty feed system: Unlimited ; Light-duty feeder: Supports material diameter of 210 mm | |
| Roll Weight | 80kg | |
| Printing Width | 210–3200 mm | |
| Ink | Type | LED UV |
| Capacity | Continuous ink supply system with 1.5L ink tanks | |
| Color | CMYK, CMYK+W, W+CMYK+V | |
| Curing Unit | Up to 1200 dpi | |
| Printing Precision | USB 2.0 | |
| Interface | AC 220V ±5%, 16A, 50Hz ±1 | |
| Voltage | 5410 x 1200 x 1570 mm | |
| Machine Dimensions | 1200 kg | |
| Machine Weight | 5530 x 1245 x 1870 mm | |
| Packaging | 1300 kg | |
| Weight | Operating :Temperature: 15°C–32°C / Humidity: 35–80% (non-condensing) | |
| Environment | Power off: Temperature: 5°C–40°C / Humidity: 20–80% (non-condensing) | |
| Accessories | Data cable, paper pressure clips, user manual, waste ink tank, ink cartridges, RIP software, etc. | |

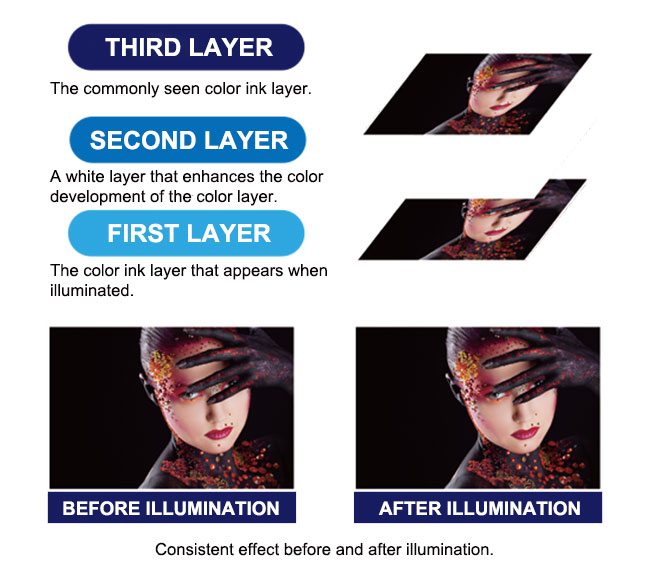

The AJ-320OUV Plus features a unique "Color + White + Color" soft film printing mode, achieving consistent color performance both when illuminated and non-illuminated. This innovation replaces traditional double-sided printing, making it suitable for various lightbox applications.

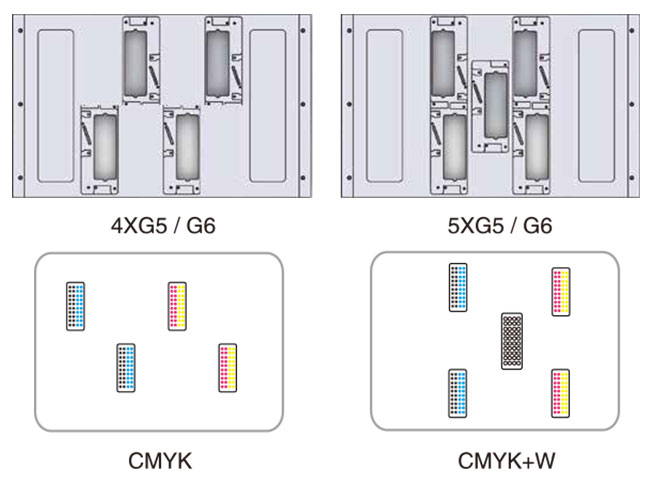

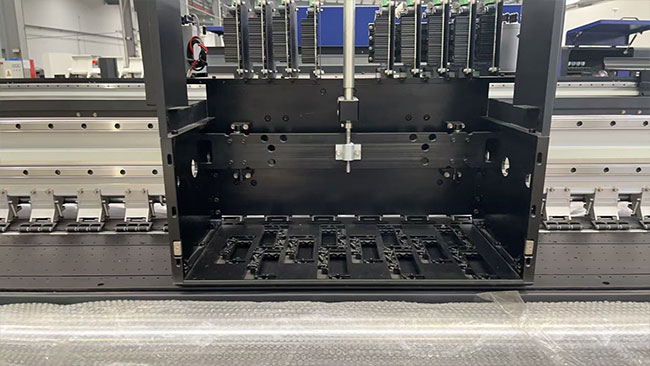

G6 Industrial Printhead Configuration
Equipped with 4/5 industrial-grade Ricoh G5 printheads (upgradable to G6), arranged in a tri-linear configuration. As an upgraded version of the Ricoh G5, the G6 offers higher productivity and faster printing speeds. It features next-generation variable droplet technology, supporting three-level greyscale and delivering ink droplets as small as 5 picoliters. This enables high-precision image quality even at high speeds or low resolutions, achieving a seamless print without visible dots. The result is more realistic and finely detailed graphics.

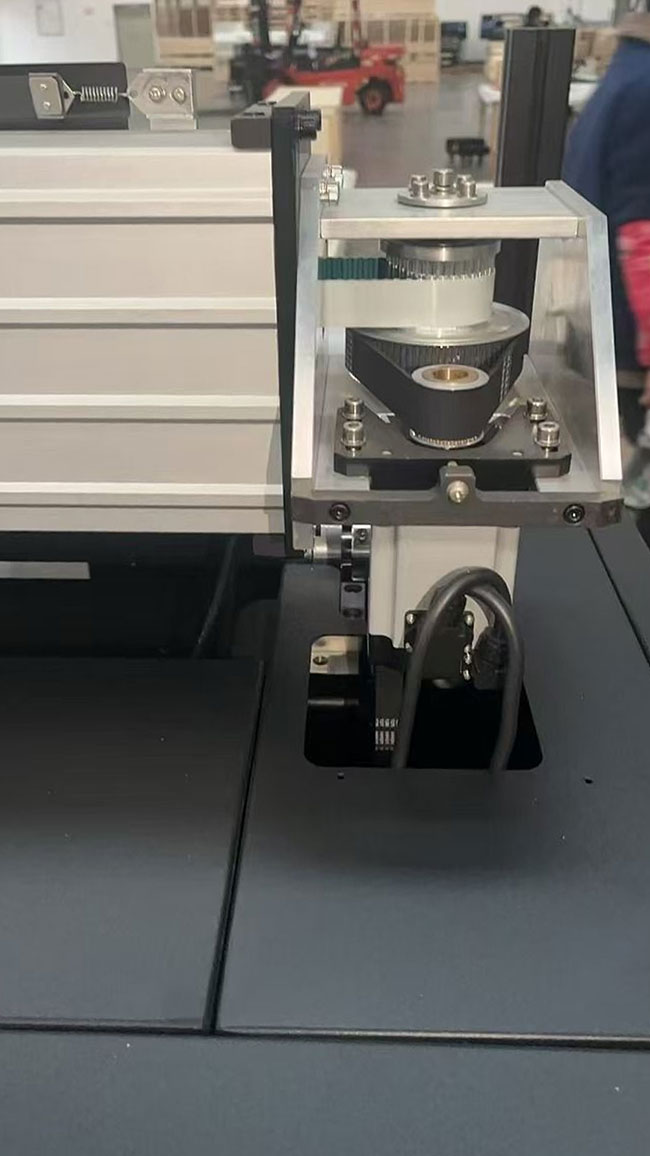

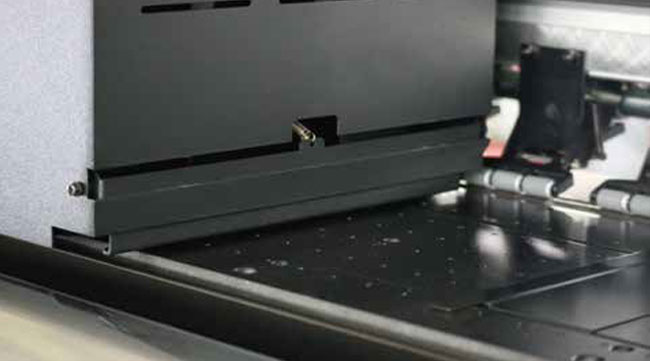

Printhead Anti-Collision Device: Protects the printheads from damage, ensuring durability and reliability.
