2512 1500W Laser Flat Mold Cutting Machine
Appliactions:
SIT-YT2512-1500W Flat die board laser machine is mainly for cutting various die board in color print industry, electronic products, and other light industry, sheet metal industry such as carbon steel, sheet, stainless steel sheet, aluminum alloy sheet; acrylic material, plastic material, and the other non-metal sheet.
Machine Components:
| Product name | Picture |

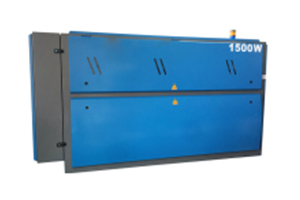

| 1500W Laser source Roots pump |
 |
| CNC Control system Germany (Power Automation) |
|

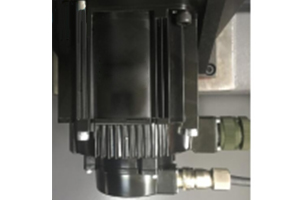

| Motor and driver (YASKAWA Servo Motor and driver) |
 |

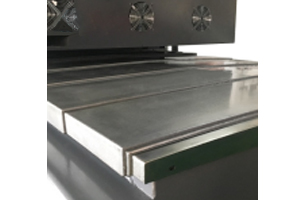

| Dust cover Stainless steel |
 |

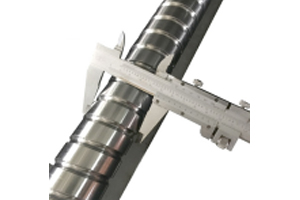

| 50mm Ball screw TAIWAN HIWIN |
 |

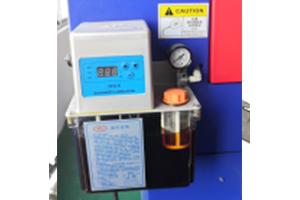

| Automatic refueling system |  |

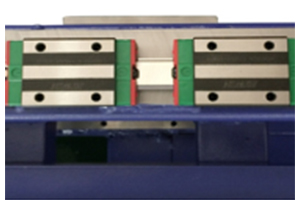

| Linear guide TAIWAN HIWIN |
 |

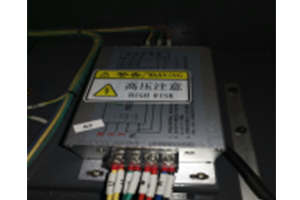

| Transformer |  |

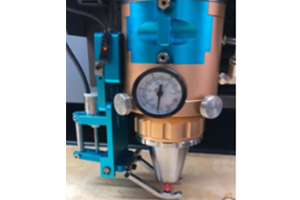

| Laser head (With magnetic anti-collision system) |
 |

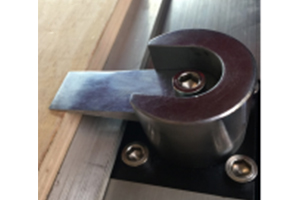

| Auto Clamp |  |
| Dust cover |  |
| Water chiller system Tongfei 100C L1m*W0.9m*H1.8m Weight: 500kgs. |
 |
Technical Parameters:
| Model No. | SIT-YT2512-1500W |
| Table size | 1280*2500mm |
| Power | 1500W |
| The table moving | Gantry construction |
| Laser output power | High power axial flow CO2 laser source |
| X-axis travel-length | 1220mm |
| Y-axis travel-length | 2440mm |
| Cutting speed | 90-120m/h |
| Rapid speed | 20m/min |
| Re-Positioning Precision | ≤0.02mm |
| Cutting width kerf | 0.45mm, 0.71mm, 1.05/1.07mm，1.42mm at one time (die board) |
| Controlling system | Germany PA |
| Transmission system | Ball screw & Linear guide (TAIWAN) |
| Driving system | Japan high-precision servo motors |
| Optical system | US |
| Moving structure | Gantry |
| Chiller system | Made in China |
| Overall dimensions (L x W x H) | 4800*2300*2300mm |
| G. Weight | 4200kg |
| Laser generator gas matched | He, N2, CO2 (99.999%) |
| Laser cutting thickness | 0.1-30mm（plywood, acrylic board, rubber, pvc board, leather, MDF board) |
| Metal cutting thickness | Carbon steel/Iron steel: 8mm Stainless steel: 3mm |
| Centrifugal blower | 1 set |
Consumption:
| Total rated Power | Electricity consumption | Gas consumption (He) | Gas consumption (N2) | Gas consumption (co2) |
| 18KW | 18 degree/H | 130hours/bottle | 130hours/bottle | 1bottle/year |
