2500mm 420mm Multi-functional Roller Heat Transfer Machine
Precio unitario
COP 82.486.804
/unidad
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1
0%
COP 82.486.804
Costo total
COP 82.486.804
Cantidad
/unidad
1

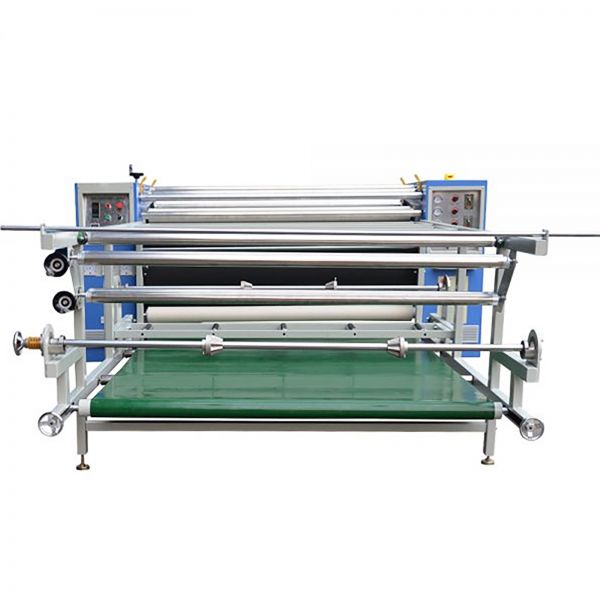

2500mm Multi-functional Roller Heat Transfer Machine
2500mm Printing Table Automatic Rotating Manual Feeding Oil Drum Roller Curtains Thermopress Sublimation Machine.
Features:
1. This SUS heating hose heats oil directly at the higher heating speed, reaching 200℃ within 45 minutes.
2. It is equipped with external oil box which makes it convenient to add heat conduction oil, it has high security performance with the unique advantage of anti-explosion through automatic turn off.
3. Blanket ad belt are separated. Adopt simultaneous shaft adjustment and pressure balancing shaft to make sure the pressure on the blanket is consistent with that on the heating roller, Thus completely solve the problem of cooling the blanket while turning off the machine or while power off, and give more protection to the blanket and extend its using life.
4. Use frequency conversion governor which can adjust the printing speed freely. And the transfer printing speed is more stable.
5. Automatic collecting and releasing cloth system is optionally equipped.
6. The electric components of the product are imported, and it separated structure of the electric box with the body machine makes the using life of the electrical equipment longer, the digital control brings higher accuracy.
7. The hardware is with high-tech configuration. The main wall panel and rollers are all reinforced and manufacture professionally.
8. The releasing-laying system is manufactured with the body machine as a while part, thus to deliver the paper or cloth exactly parallel without deviation. It only converts a small area but it is labor-saving with high overall efficiency.
 |
Teflon coating surface on oil drum 100% seamless roller. the outer roller linner roller is dealt with precislion work, and then plated Teflon,to ensure consistent temperature of each point. Seamless steel drum can provide more heat uniformity, no chrormatism, saving the power 20%-30%. Keep the performance printed no color difierence. |
| Intergrated intelligent controller panel Frequency convertor, Temp. control, roller speed adjustor. |
 |
 |
Air inflation expanding shaft for unwind/rewind |
| Imported Dupon material blanket/felt Up to 60% blanket coverage, High efficiency output and printing speed fast. Top quality blanket with high temperature resistence, it can be use lang life. |
 |
 |
External electric control box Fmous component part, heating sink linked together, it can be cooler soon. Lower power, power saving. Safety operation, money saving. |
Specification:
| Mode(CM) | Voltage(V) | Power(KW) | Temp.Range(°C) | Worktalbe Size(M) | Working Pressure(KG/CM²) | Packing size(CM) |
| 42x250 | 380 | 36 | 0-399 | 2.65 | 0-8 | 370x118x146 |
| Roll diameter | 200mm | 420mm | 600mm | 800mm |
| Speed | 30-50m/h | 80-120m/h | 160-220m/h | 280-350m/h |
Application:
