2.5x1.3m Acrylic Vacuum Forming Machine with Blow Press Suck Functions
Precio unitario
COP 48.988.249
/set
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1
0%
COP 48.988.249
Costo total
COP 48.988.249
Cantidad
/set
1
2.5x1.3m Acrylic Vacuum Forming Machine with Blow Press Suck Functions
Features:

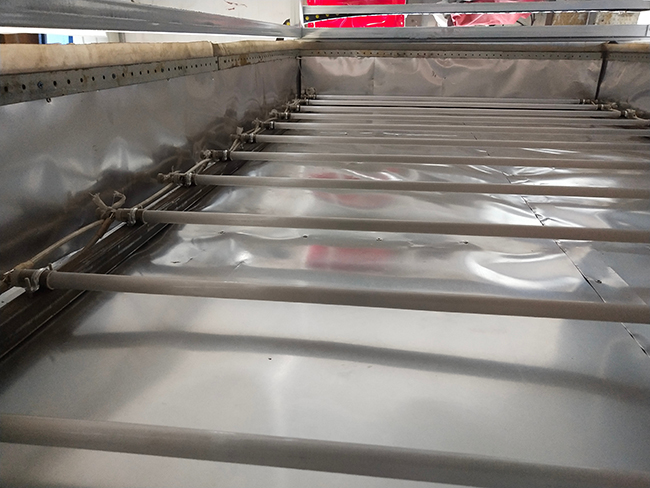

1.Customized heaters from factory which can run 24hours continuously, service life up to 8000-10000 hours, the working temperature difference is±5 degrees, which can ensure even softening temperature of plate.
2.Intelligent temperature control, heating box use the shaped reflector and thickened insulation layer, heating fast and with good insulation and safety performance.
3.Material heats, softens the acrylic to your shape in one time, no need to swift material. The machine automatically heats and softens the acrylic to your specified temperature, then engages the pump at the correct temperature and creates the mold all in 1 process.
Specification:
Model: SPB1325
Function: Suction, Press and Blow
Max Forming Height: 200mm
Working Area(mm): 1300*2500mm
Maximum size of acrylic: 1220x2440mm
Potencia: 25KW
Cover Open Mode: Hand-Push Sliding
Voltage: 380V 3-Phase
Pressure: Top-Press: 6T Bottom Puss: 6T
Vacuum Pump Model: XD100
Clamp: Adjustable
Temperature Set: Automatic
Air Put-in: 3 PCS(Can be independently control)
Machine Size: 3360*3350*1850mm
Weight: 1800KG
Packing Size: 3470*1900*1650mm
Packing Weight: 1900KGS
Remark:
The air pump is not included, please prepare it by yourself.The air pump should be 3KW.
Details：
