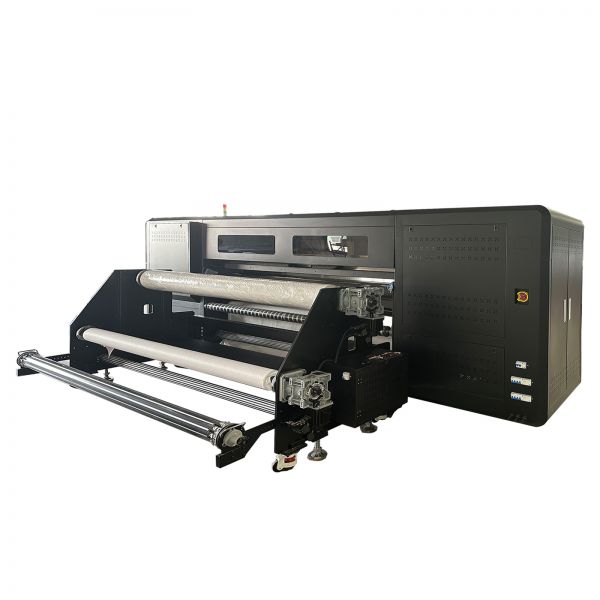

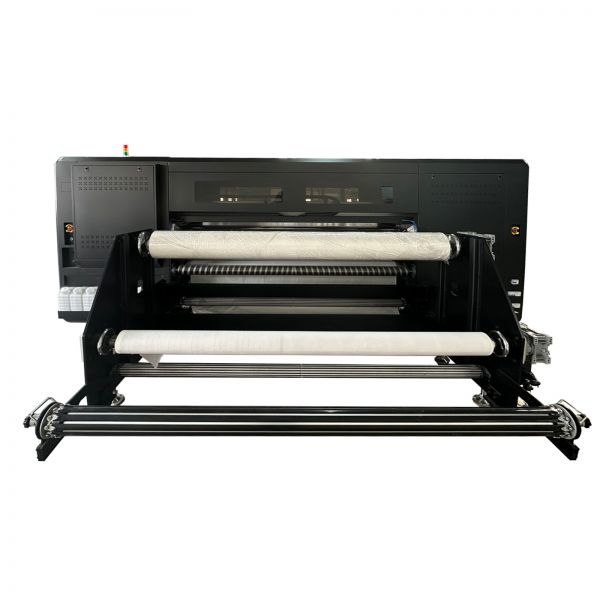

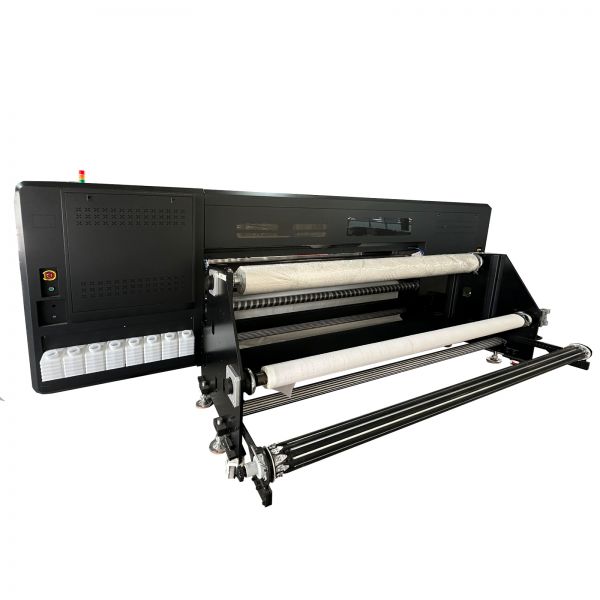

2.2m Industrial Sublimation Printer for Fiber Fabric with 30/36pcs Epson I3200A1 Heads
30-head
Precio unitario
COP 363.516.865
/set
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1
0%
COP 363.516.865
Opciones
Por Favor Eliga el Tipo Por Favor Eliga el Tipo
Costo total
COP 363.516.865
Cantidad
/set
1
2.2m Industrial Sublimation Printer for Fiber Fabric with 30/36pcs Epson I3200A1 Heads
Specification:
| Model | JC2330 | JC2336 | |
| Print Heads | 30PCS Epson i3200 printhead | 36PCS Epson i3200 printhead | |
| Print Resolution/Speed | Produce Mode/1 pass: 1300m²/h | ||
| Resolution Mode /2pass: 650m²/h | |||
| Maximum Print Width | 2280mm | ||
| Ink type | Sublimation lnk | ||
| Media | Width | 2300mm | |
| Thickness | 1.5mm to 8mm adjustable | ||
| Weight | 10000 Meters | ||
| Type | Heat transfer paper | ||
| High Printing Quality | VSD technology | ||
| Media feeding Device | 850Kg | ||
| Drying System | External air drying system | ||
| Guide Rail | THK (Japan) guide rail | ||
| Interface | 1000Mbit/s | ||
| RIP Software | MainTop7.0 ,FlexiPRINT DX 22 SaiTu Edition | ||
| Voltage | AC380V±10% 50/60±1Hz | ||
| Operation Environments | Temperature: 15°C-30°C, Humidity: 35%RH-65%RH | ||
| Power | 37KW printer:6000w;Jumbo roll system:29KW | ||
| Dimensions of Printer (install space) | LWH: 4340*2800*1950mm | ||
| Packing dimensions | Main body (LWH): | 5100*1640*2120mm(printer) | |
| Media feeding system (LWH): | 3150*1140*1250mm(jumbo roll system) | ||
| Net Weight | Main body | 1400kg | |
| Jumbo roll system | 400kg | ||
| Gross Weight | Main body | 1600kg | |
| Jumbo roll system | 520kg | ||
Features:
1.Thickened ink base plate,adjustable nozzle,more precise,integrated lifting ink station.
2.Multiple protection:A:Anti-collision on nozzle, more sensitive. B：Raster protection triggers the nozzle cart head to stop printing.
3.Using a textured printing platform with high precision, the paper feed is stable and less prone to wrinkling, ensuring high-quality output over extended periods.
4.THK Double guide rails (THK 2.0),nozzles running cart more smoothly,less noise.
5.Magnetic levitation linear motor, high quality metal magnetic grid, more accuracy and quieter.
6.Large diameter rubber roll (one in diameter of 240mm,the other diameter:120mm) transmission, smooth media feeding, stepping more accurately, and wear resistance.
7.Double support chain drive ensures stable ink delivery and continuous ink supply.
Application：
