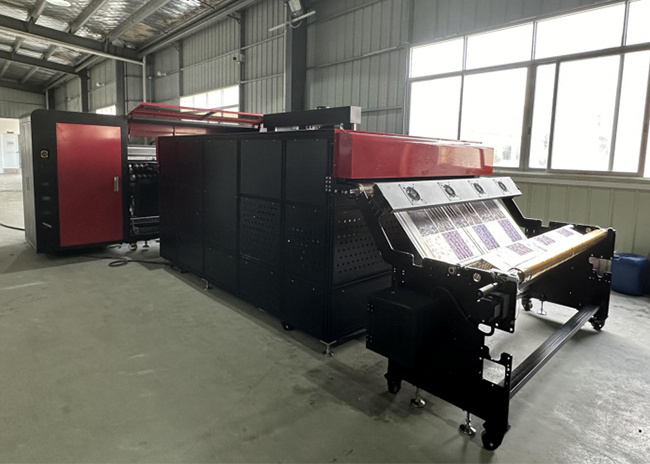

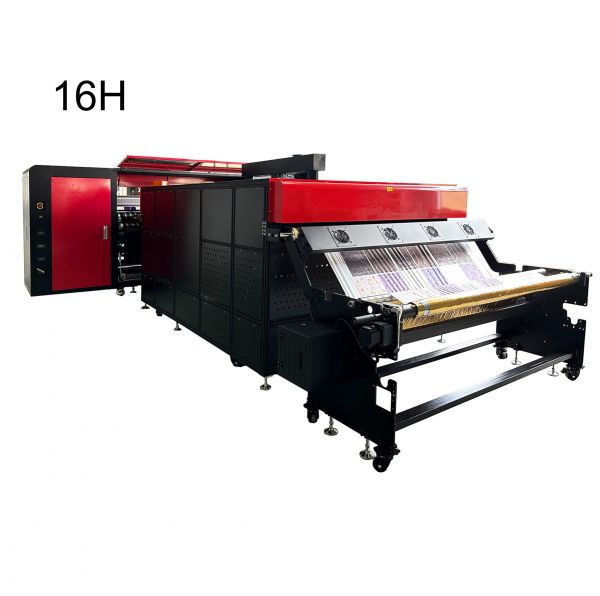

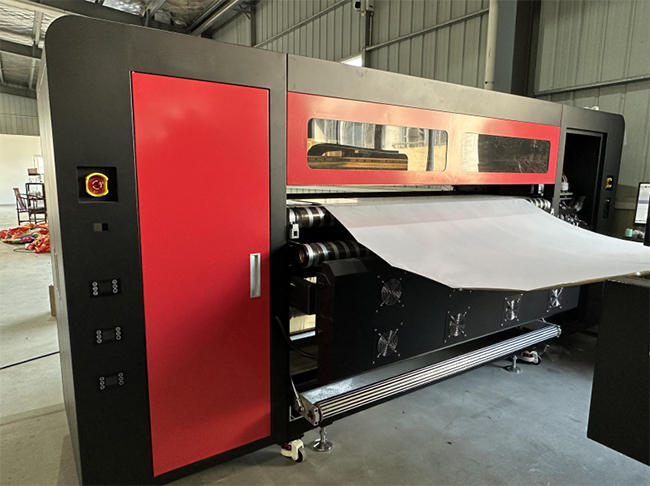

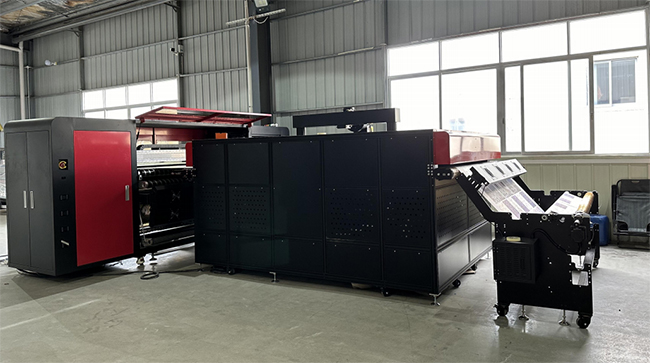

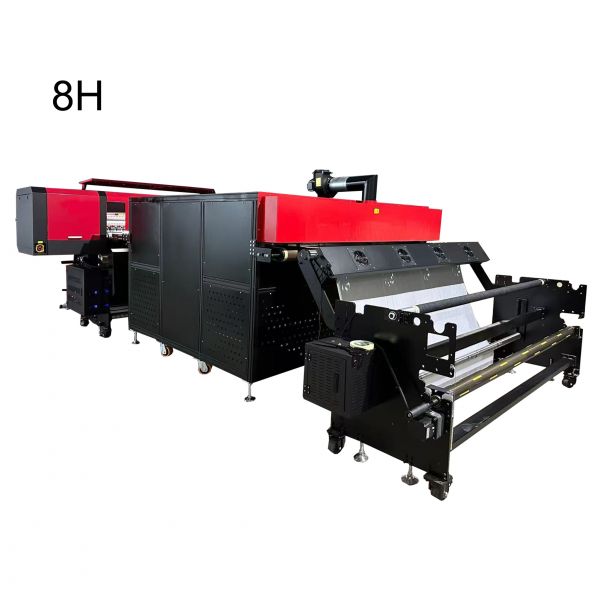

1.8m Gold Foil Film Sublimation Rubber Roll Printer with 8/16 Epson i3200A1 Printheads
Ideal for users who require golden prints on various polyester fabrics that are not frequently washed
Features:

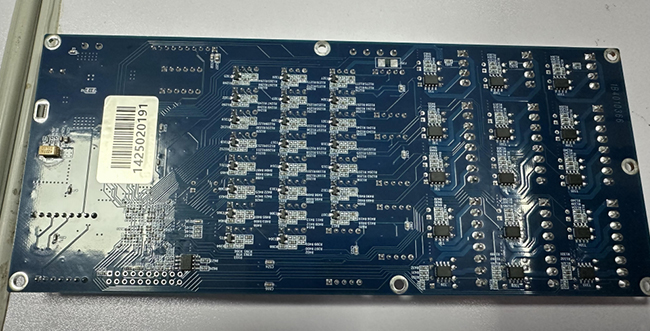

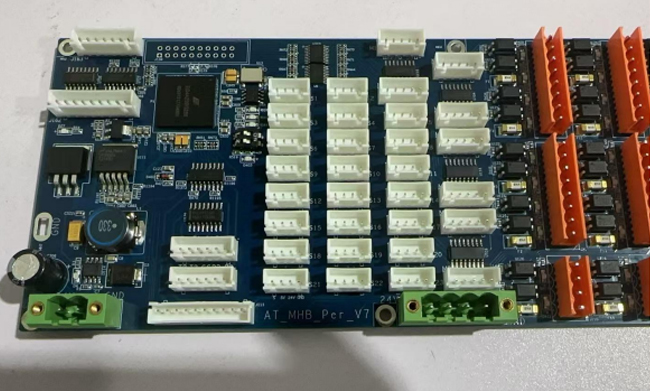

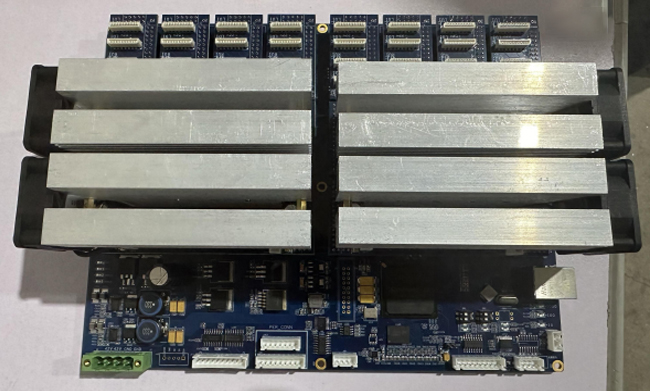

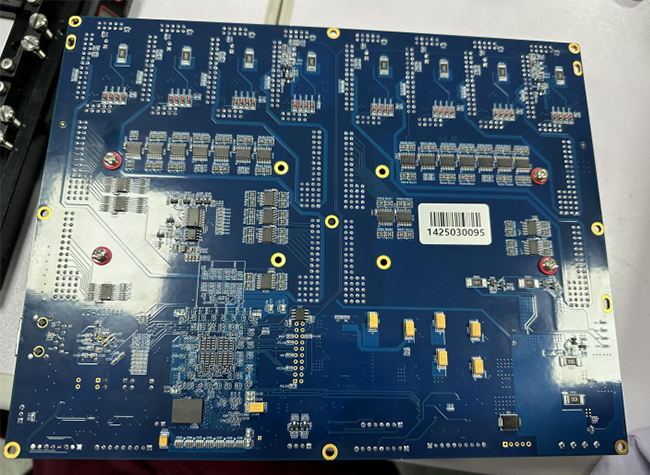

- AT Board
- Maglev configuration car high-speed running more quiet, stable

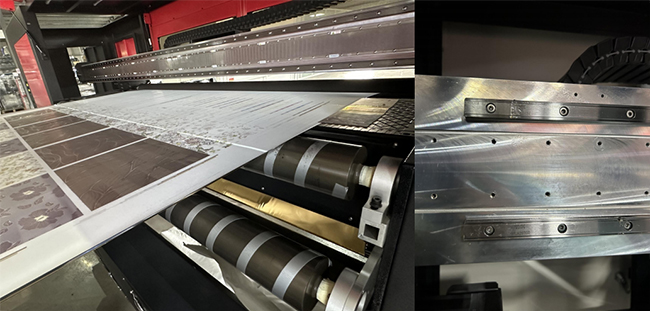

- The rubber roller feeds the material without damaging its coating
- Car anti-collision, both sides of the anti-collision pad

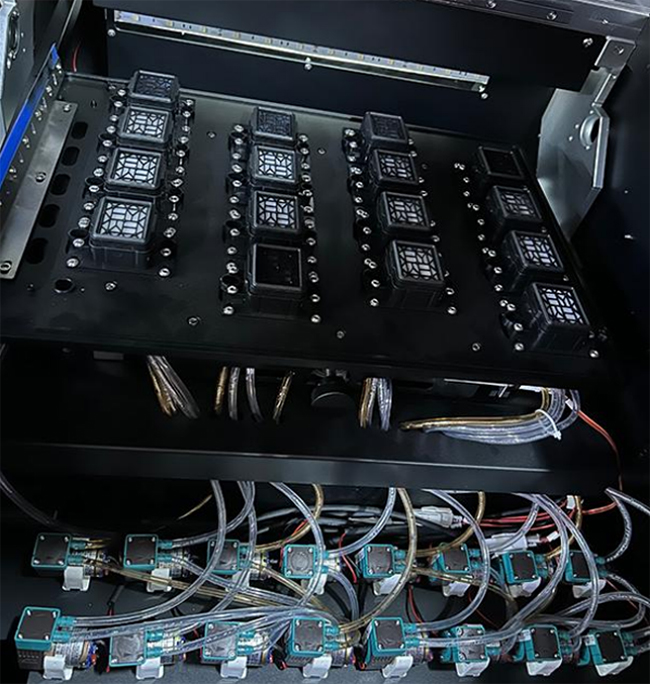

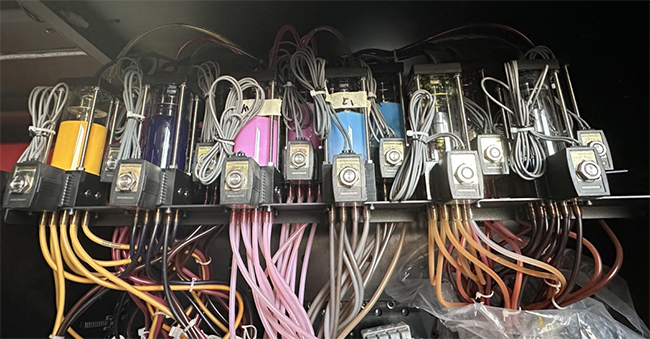

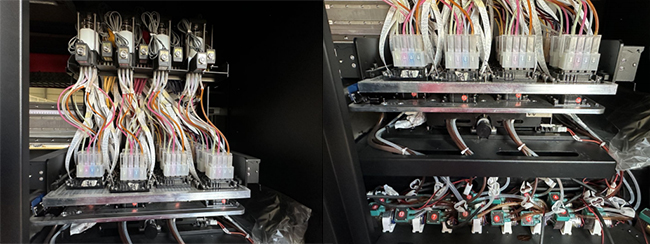

- New all-aluminum ink station, more stable up and down operation

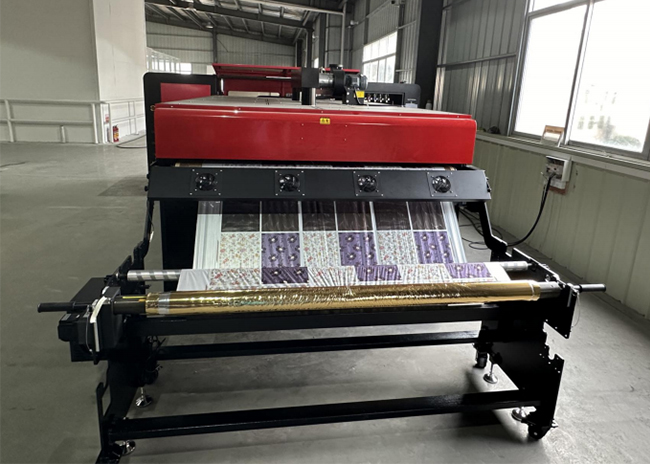

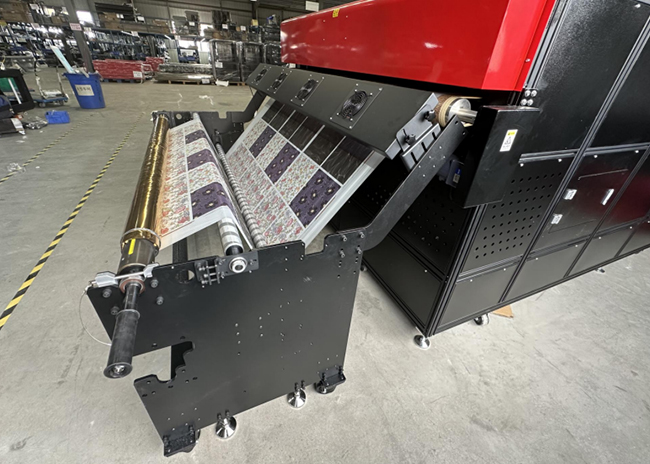

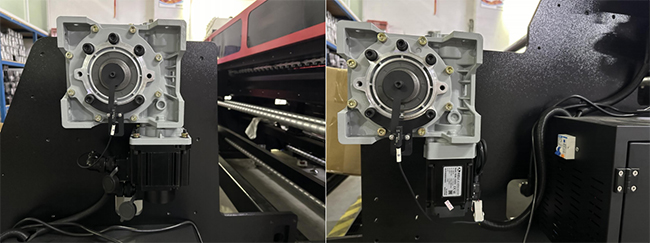

- 1000w high power driver feeding system, 150ow feed driver receiving system, better paper receiving

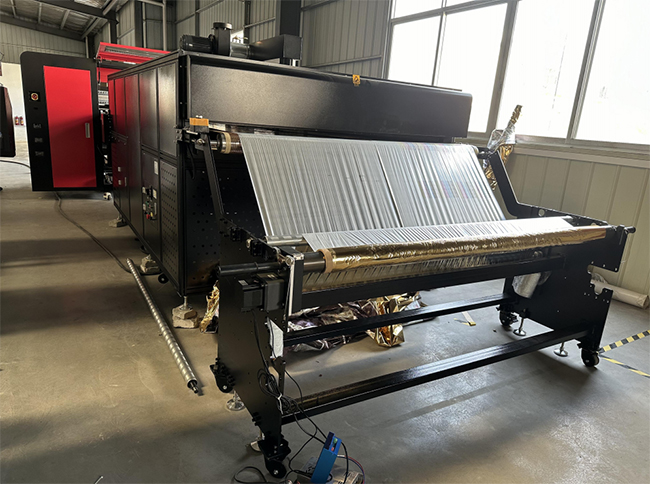

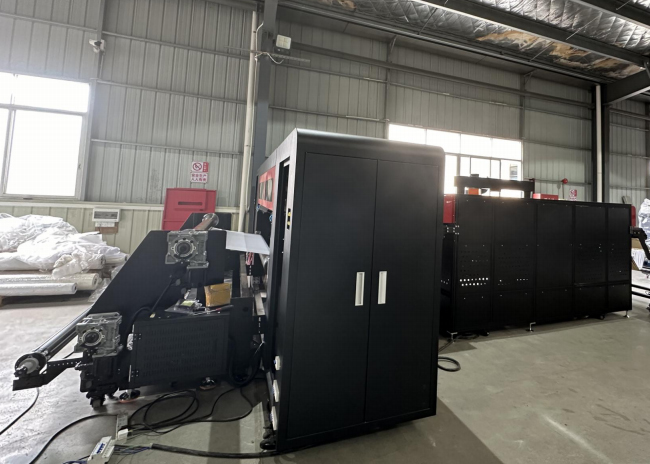

- Receiving and discharging system adopts imported sensors to ensure more stable receiving
- 10L large capacity ink drum, more suitable for long hours of uninterrupted work
Specification:
| Model | JM2008 | JM2016 | |
| Printhead | 8pcs Epson i3200 printheads (4 heads for cmyk; 4heads forglue) |
16pcs Epson i3200 printheads (8 heads for cmyk; 8heads forglue) |
|
| Print Resolution/Speed | Produce Mode | 130m²/h | 277m²/h |
| Resolution Mode | 60m²/h | 150m²/h | |
| High Resolution Mode | 45m²/h | 100m²/h | |
| Maximum Print Width | 1800mm | ||
| Ink | Sort | Sublimation lnk/ Glue | |
| Color | CMYK /Glue(5 color) | ||
| Materials | Thickness | 1.5- 8mm adjustable | |
| Can bear material weight | 150kg | 1000kg | |

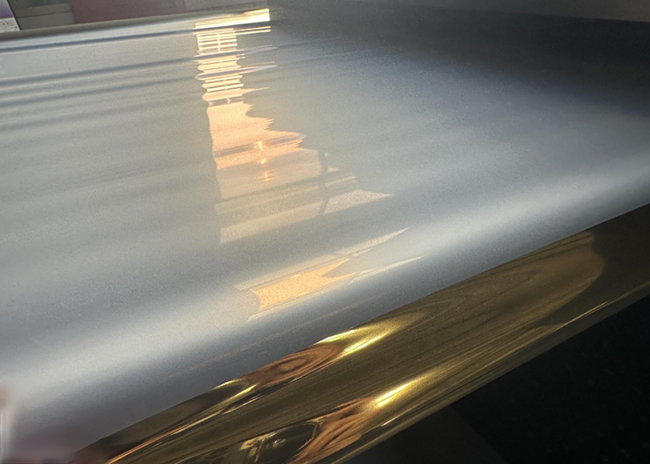

| Sort | Gold foil film | ||
| High Printing Quality | VSD technology | ||
| Media Take-up Device | 1000 meters of received paper | 10000 meters of received paper | |

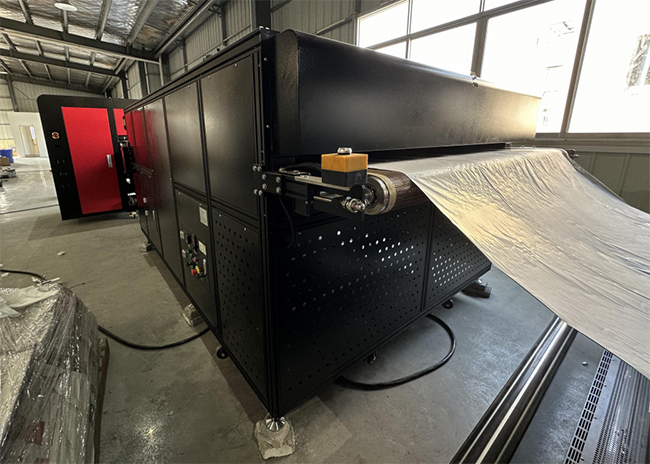

| Drying System | lnfrared Ray Drying System | ||
| Guide Rail | THK From Japan | ||
| Interface | Two Gigabit nics 1000Mbit/s | Three Gigabit nics 1000Mbit/s | |

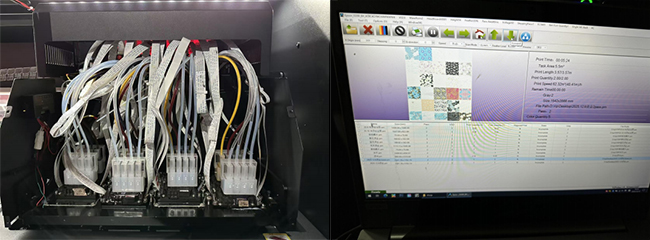

| RIP Software | Maintop, Photoprint | ||
| Voltage | AC220V±10% 50/60Hz | AC380V±10% 50/60Hz | |
| Operation Environments | Temperature: 15°C-30°C, Humidity: 35%RH-65%RH | ||
| Power | Printer: 3000W, Oven: 32KW | Printer: 3000W, Oven: 36KW | |
| Dimensions of Printer (L*W*H) | 5500*3500*2000mm | 7000*4000*2000mm | |
| Dimensions of Machine (L*W*H) | Machine: 3.52*1.38*1.74m (Including the feeding system) |
Machine: 3.93*1.257*2.145m | |
| Jumbo roll system: 2.696*l.257*1.207m | |||
| Oven: 2.7*2.1*1.8m | Oven: 3.55*2.15*2m | ||
| Take up system for filmin front of the machine: 2.554*1.042*1.219m | Take up system for filmin front of the machine: 2.554*1.042*1.219m | ||
| Dimensions of Packing(L*W*H) | Machine: 3.65*1.14*1.8m | Machine: 4.1*1.5*2.12m | |
| Jumbo roll system: 2. 85*l. 14*1.33m | |||
| Oven: 2.7*2.25*2m | Oven: 3.64*2.28*2.10m | ||
| Take up system for film in frontof the machine: 2.58*0.75*1. 03m | Take up system for film in frontof the machine: 2.58*0.75*1. 03m | ||
| Net Weight | Machine: 896kg | Machine: 960kg | |
| Jumbo roll system: 360kg | |||
| Oven: 800kg | Oven: 900kg | ||
| Take up system: 200kg | Take up system: 200kg | ||
| Gross Weight | Machine:976kg | Machine: 1275kg | |
| Jumbo roll system: 450kg | |||
| Oven: 950kg | Oven: 1400kg | ||
| Take up system: 280kg | Take up system: 280kg | ||
