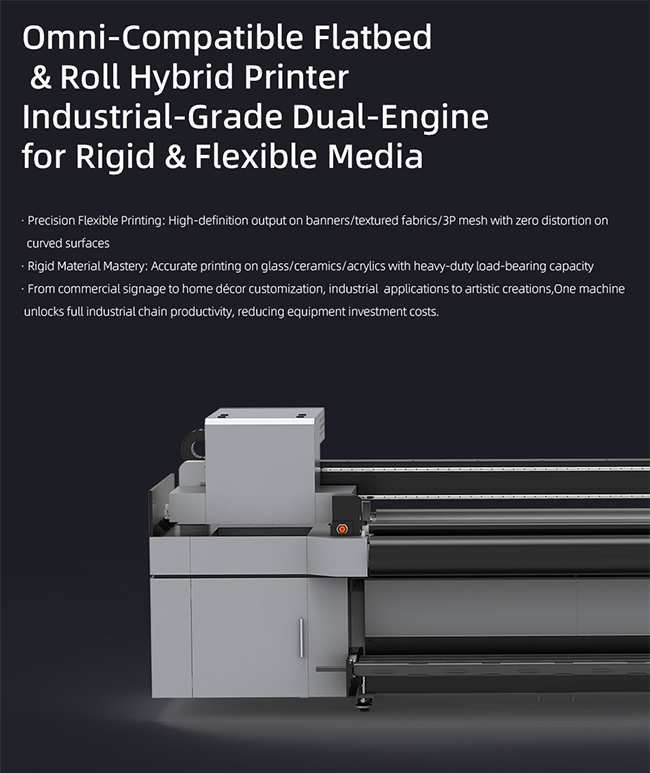

1.8m/2.2m/3.2m Hybrid UV Printer With Konica 1024A Printheads
2.2m KM1024A-8H
Precio unitario
COP 229.087.699
/set
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1
0%
COP 229.087.699
Opciones
Por Favor Eliga el Tipo Por Favor Eliga el Tipo
Costo total
COP 229.087.699
Cantidad
/set
1
| Model | H1800 | H2200 | H3300 |
| Printing Size | 1800m | 2200mm | 3250mm |
| Printhead | Konica 1024A | ||
| Printing Height | 0-50mm | ||
| Printhead quantitiy | 4-48 | ||
| Standard Solution | CMYKW | ||
| Printing Color | C\M\Y\K\Lc\Lm\Ly\Lk\w,Optional colors: fluorescent, gloss | ||

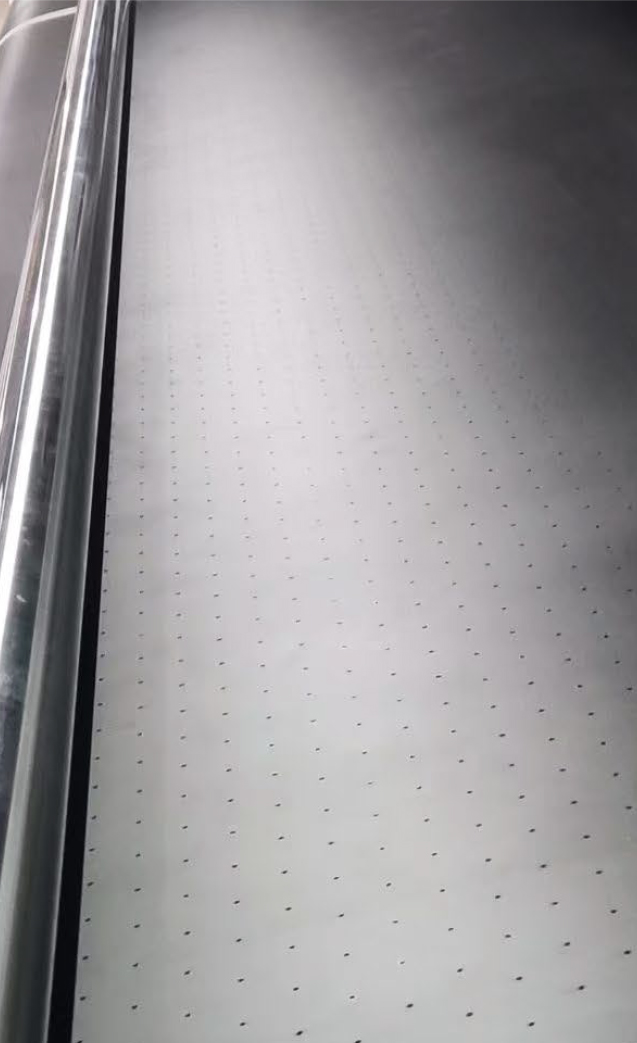

| Conveyor Method | wire mesh conveyor belt | ||
| Printing Precision | 1440DPI (max) | ||
| RIP Software | Printfactory/Caldera | ||
| Data Interface | High-speed USB Transfer Port / Gigabit Network Port | ||
| Lifting System | Automaticlifting of Print Head /automatic monitoring of print height | ||
| Curing system | UV lamp curing | ||
| Ink System | Continuous ink supply/ink tank 5000ml/subtank constanttemperature and pressure/white auto stirrer | ||
| Driver Software | Microsoft Windows 10 | ||
| File Format | TIFF(RGB CMYK)BMP、 PDF、EPS、JPEG、etc. | ||
| Voltage | AC220V(+10%);50Hz | ||
| Working Environment | Temperature:20°C-30°C/Humidity:40-70% | ||
| Data Interface | High speed USB transfer interface/Gigabit networkinterface | ||
| Power Requirements | 8000W | 9000W | 10000W |
| Printer Weight | 2300kg | 2800kg | 3000kg |
| Printer Dimension | 4500x1660x1550mm | 4900x1660x1600mm | 6300x1860x1670mm |
| Print Speed | High Speed Mode (4PASS) | Production Mode (6PASS) | High Quality Mode (8PASS) |
| Gradient Weak | 147m²/h | 97m²/h | 73m²/h |
| Gradient Medium | 117m²/h | 78m²/h | 59m²/h |
| Gradient Strong | 97m²/h | 64m²/h | 48m²/h |
| Uniform Weak | 78m²/h | 56m²/h | 43m²/h |
| Uniform Medium | 64m²/h | 48m²/h | 39m²/h |
| Uniform Strong | 56m²/h | 43m²/h | 33m²/h |
