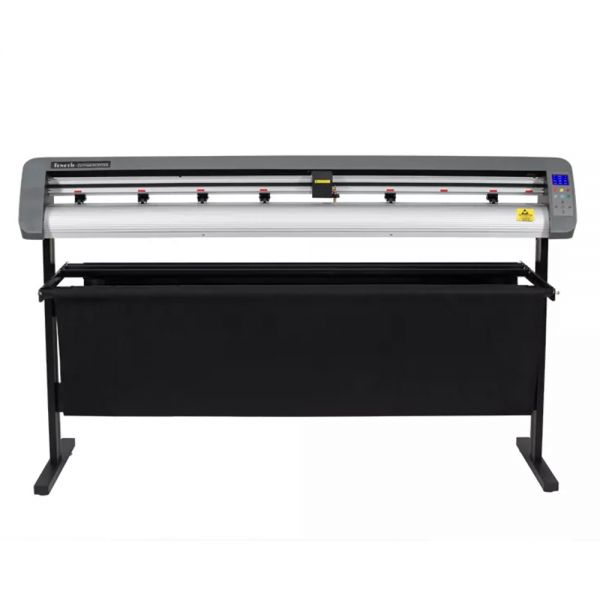

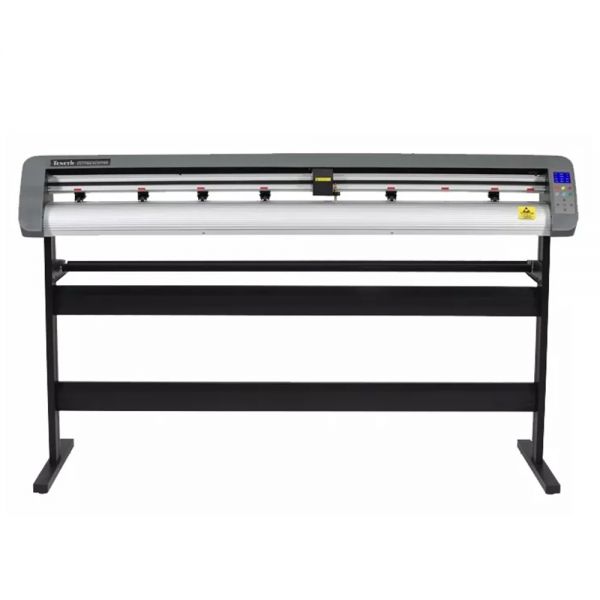

1.6m Vinyl Cutter with Full Auto Contour Cut Function
1600A
Precio unitario
COP 5.772.301
/set
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1
0%
COP 5.772.301
Opciones
Por Favor Eliga el Tipo Por Favor Eliga el Tipo
Costo total
COP 5.772.301
Cantidad
/set
1
1.6m Vinyl Cutter with Full Auto Contour Cut Function
Feature:
1. Repeat function: one-key operate repeatedly.
2. Multi-interfaces optional: USB/Udisk/WiFi/Serial port.
3. Low decibel, equal to normalvolume of people's voice.
4. Floor stand optional as you like.
5. Wide application fields: thermaltransfer, car sticker, reflective coating6. High precision steel axes, smoothand steady.

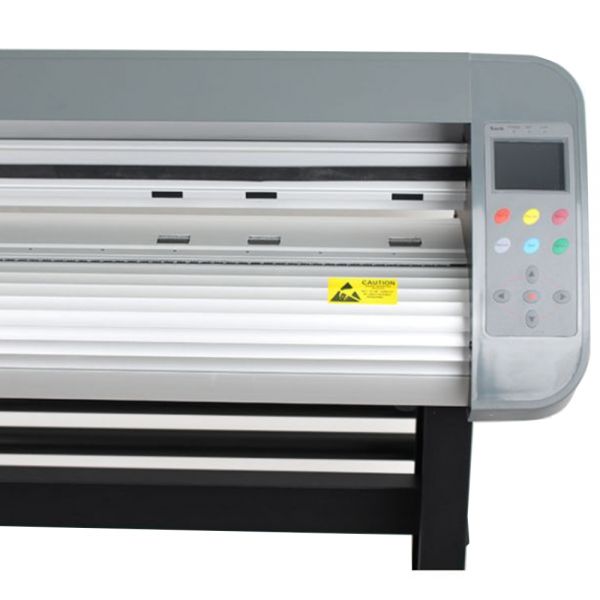

7. Membrane buttons+2.4 inch touchscreen,convenient and sensitive.
8. Basket optional, automatically intothe basket.
Advantages
1. High precision of cutting 2mm small fonts
3. 2.4inch industrial LCD display screen --- Longer service life
4. Membrane buttons --- Easier operation
5. Two languages selection: Chinese and English
6. Automatic contour cutting function: Four marks detection automatically, more convenient
7. Multiple interfaces: Serial port, USB, U disk (Bluetooth/ wifi optional)
8. U disk offline working: .plt format file can be copied to U disk, and work without PC connection
9. Various material can be cut: vinyl, PU, PVC, PET
10. Application: label cutting, T-shirt pattern heat transfer, wall / car sticker cutting.
Note: Plotter de Corte renova contraseña con gasto , cada vez cobramos Q200!
si necesita quitar permiso , por favor me manda la foto de cuenta y contraseña ,los manda a correo a [email protected]

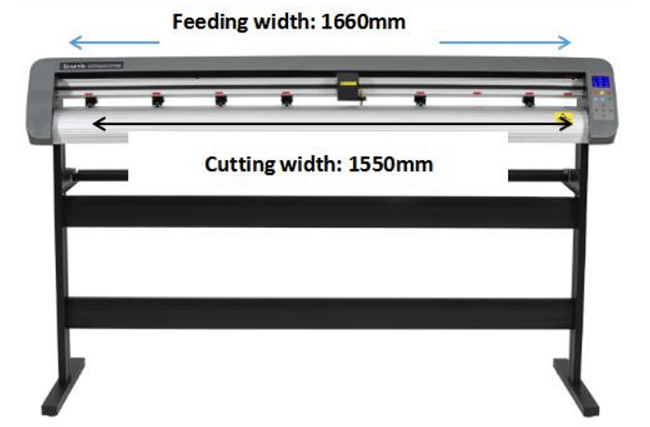

As shown in the picture below:
Specification:
| Model Name | TH1600L | TH1600A |

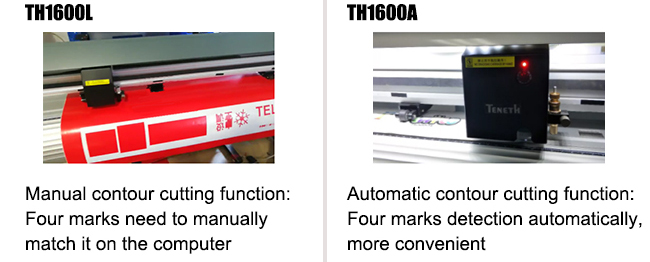

| Function | Manual contour cutting function | Automatic contour cutting function with sensor |
| Motor | High speed , big power step motor ,micro-step driver | |
| Control panel | 11 membrane buttons , 2.4 inch high definition LCD screen | |
| Interfaces | USB/ U disk / Serial port | |
| Plotter instruction | Compatible DM/PL , HP/GL | |
| Main board | 32-bit ARM7 CPU，128Mb, High-speed CACHE Memory | |
| Cutting force | 10-500g (digital adjustable) | 10-1000g (digital adjustable) |
| Cutting speed | 500mm/s | |
| Maximum cutting thickness | 1 mm | |
| Gross weight | 40kg | |
| 1900*340*400mm | ||
| Mechanical precision | 0.025mm | |
| Type of plotter pen | All types diameter 11.4 mm plotter pen | |
| Media way | With Floor stand | |

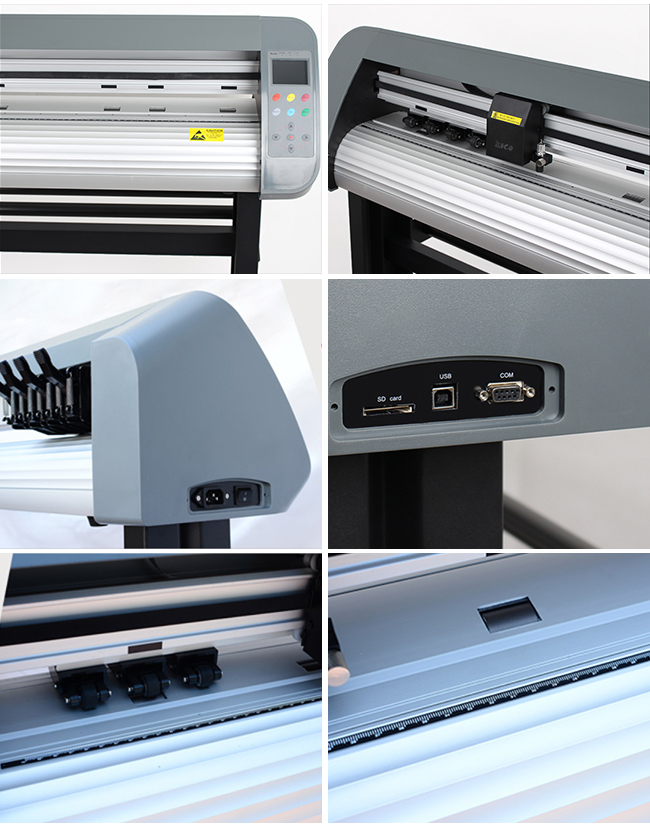

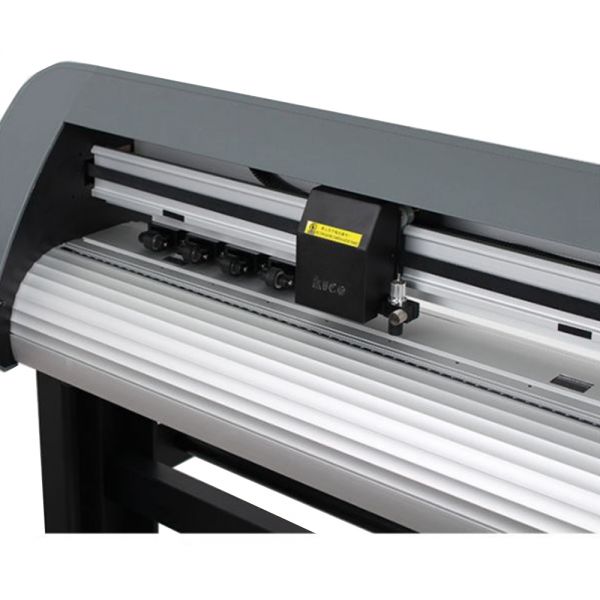

Details:
Appclication:
Function Show:
Process:
Certifiation:
