Universal 4-Edge AlCr Coated Carbide Milling Cutter
Unequal tooth pitch, Suitable for high and medium speed machining of alloy steel, Die steel and pre hardened steel below HRC50 degrees.
Material: Cemented Carbide(Tungsten Steel)
Coating: AlCr-based Coatings
Suitable for CNC Machining Centers, CNC Milling Machines, Not suitable for low-speed machines such as bench drills and hand drills.
Applicable Machining Range: Cast Iron, Carbon Steel, Stainless Steel, Alloy Steel.
Features:
1. The milling cutter is made of high-quality tungsten steel material, with high wear resistance and good corrosion resistance.
2. The milling cutter has an AlCr coating, which provides high temperature and wear resistance, reducing the need for tool changes and increasing its service life.
3. Sharp double-edged, anti-vibration designe, improving cuttingof the cuttingefficiency of the tool.
Remark: Please Choose the Model when ordering.

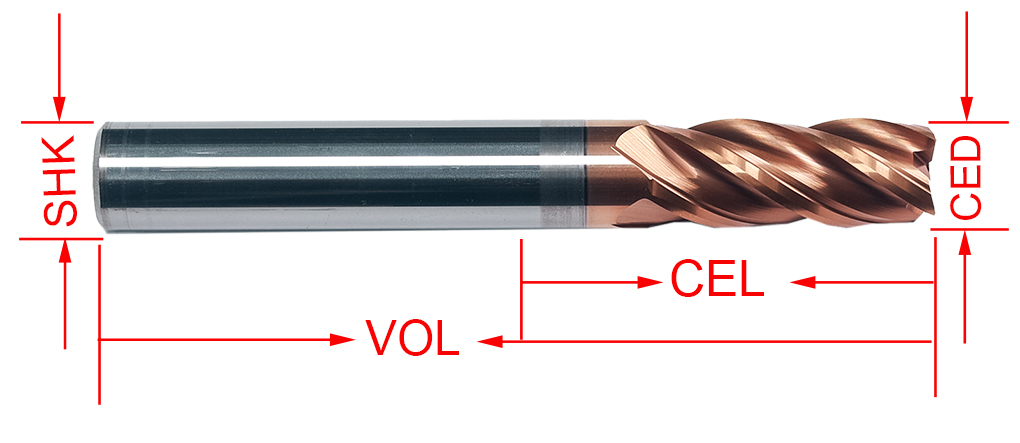

| Model | CED(mm) | CEL(mm) | SHK(mm) | OVL(mm) |
| DPE4-01 | 1 | 3 | 4 | 50 |
| DPE4-015 | 1.5 | 4 | 4 | 50 |
| DPE4-02 | 2 | 6 | 4 | 50 |
| DPE4-025 | 2.5 | 8 | 4 | 50 |
| DPE4-03 | 3 | 8 | 4 | 50 |
| DPE4-04 | 4 | 12 | 4 | 50 |
| DPE4-04A | 4 | 15 | 4 | 75 |
| DPE4-04B | 4 | 20 | 4 | 100 |
| DPE4-05T | 5 | 13 | 5 | 50 |
| DPE4-05 | 5 | 13 | 6 | 50 |
| DPE4-06 | 6 | 15 | 6 | 50 |
| DPE4-06A | 6 | 20 | 6 | 75 |
| DPE4-06B | 6 | 30 | 6 | 100 |
| DPE4-06C | 6 | 35 | 6 | 150 |
| DPE4-08 | 8 | 20 | 8 | 60 |
| DPE4-08A | 8 | 25 | 8 | 75 |
| DPE4-08B | 8 | 35 | 8 | 100 |
| DPE4-08C | 8 | 40 | 8 | 150 |
| DPE4-10 | 10 | 25 | 10 | 75 |
| DPE4-10B | 10 | 40 | 10 | 100 |
| DPE4-10C | 10 | 55 | 10 | 150 |
| DPE4-12 | 12 | 30 | 12 | 75 |
| DPE4-12B | 12 | 45 | 12 | 100 |
| DPE4-12C | 12 | 60 | 12 | 150 |
| DPE4-14 | 14 | 45 | 14 | 100 |
| DPE4-14C | 14 | 60 | 14 | 150 |
| DPE4-16 | 16 | 45 | 16 | 100 |
| DPE4-16C | 16 | 70 | 16 | 150 |
| DPE4-18 | 18 | 45 | 18 | 100 |
| DPE4-18C | 18 | 70 | 18 | 150 |
| DPE4-20 | 20 | 45 | 20 | 100 |
