RICOH TH6310F High Resolution and High Productivity Thin-film Piezo Inkjet Printhead for Wide Applications from Textile to Label
Unit cost
COP 12,207,886
/unit
Wholesale discounts
Quantity
Discount
Price per unit
1
0%
COP 12,207,886
Total Cost
COP 12,207,886
Amount
/unit
1
RICOH TH6310F High Resolution and High Productivity Thin-film Piezo Inkjet Printhead for Wide Applications from Textile to Label
High resolution and high productivity thin-film piezo inkjet head for wide applications from Textile to Label
Details:

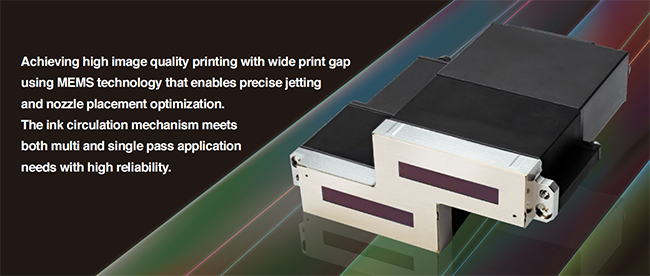

Precise control of an ink droplet landing position even with wide print gap

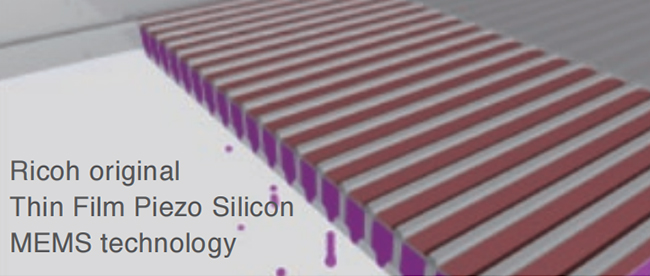

In addition to high precision jetting enabled by MEMS technology, that achieves a nozzle placement design that avoids air flow influencing adjacent drops and effecting the image quality, and also achieves a stable ink droplet landing on media with a wide print gap and results in high image quality printing.

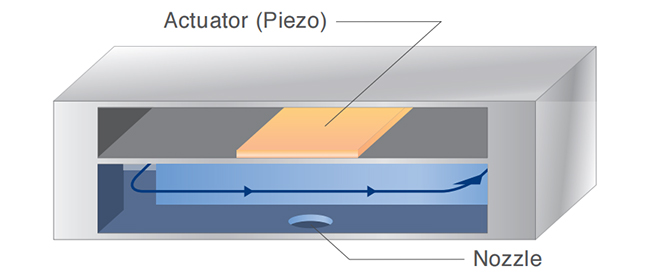

Improved printing reliability with the ink circulation mechanism
Reduces the risk of missing jets due to nozzle dryness and ink particle sedimentation by circulating ink behind the nozzles.
High productivity at 600dpi multi-drop jetting
It enables ink jetting at 80kHz at 5pl binary driving or 40kHz at 5/10/18pl multi-drop driving. It also achieves the high productivity of 100m+/minute print speed at 600 dpi.
Simple Design
One in/out ink tube connection enables a simple ink delivery system for designing a printer.
Ink Compatibility
It is compatible with all types of ink such as Aqueous, UV and Solvent for wide applications from Textile/Label to Corrugated/3D.

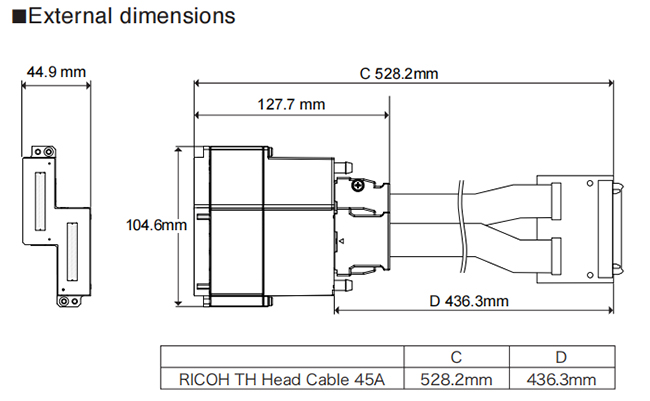

Size:
Specification:
| Method | Thin-film piezoelectric transducer with bend mode |
| Print Width | 66.7mm |
| Number of nozzles | 1,600 (8 x 100 channels x 2 Modules), staggered (Net: 1,576) |
| Nozzle Resolution | 600npi |

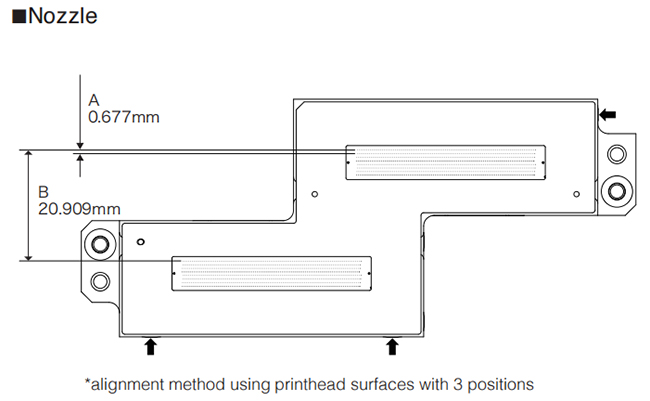

| Nozzle spacing (Row to row distance) | A: 0.677mm (8 pixels of 600npi) B: 20.909mm (494 pixels of 600npi) |
| Compatible ink | Aqueous, UV, Solvent, Others. |

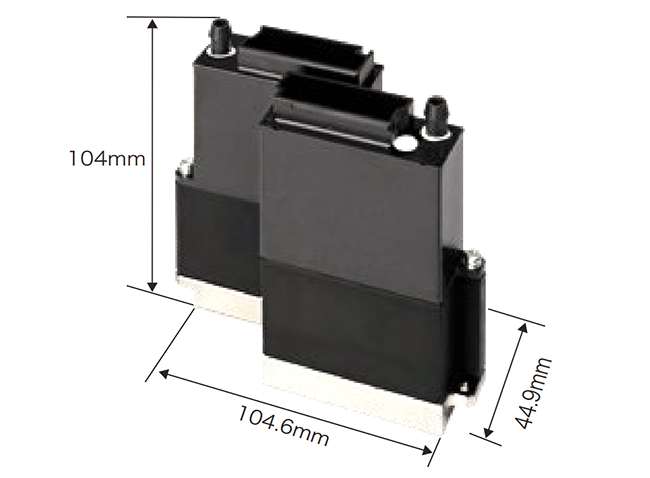

| Total printhead dimensions | W: 104.6mm D: 44.9mm H: 104mm |
| Weight | 374g |
| Max.number of color inks | 1 color |
| Operating temperature range | 60°C |
| Temperature control | Integrated thermistor, heater |
| Firing frequency | 80kHz (2 levels)60kHz (3 levels)40kHz (4 levels) |
| Grayscale | 4 levels |
| Drop volume | 5pL(Single drop)5 ~ 18pL (Multi drop) |
| Viscosity range | 5.5mPa·s |
| Surface tension | O |
| Ink circulation structure | 31.6±5mN/m |
| Separately sold parts | TH632OF dedicated cable |
-Product appearance and specifications may be changed without prior notice for improvement purpose.
-Please contact your sales representative for details on performance, specifications, and restricting conditions, etc
-Company and product names are trademarks or registered trademarks of their respective companies
