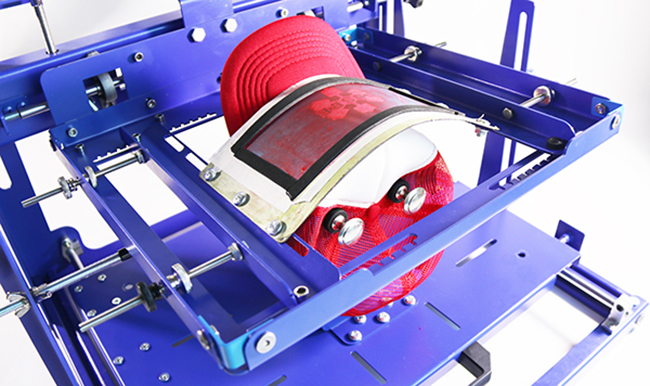

One Color Baseball Cap Soft Hat Mask Screen Printing Machine
This machine is mainly used for the printing of various soft materials cambered surface and irregular cap mask ,such as cotton fabric, chemical fiber fabric, sponge, etc. For example, baseball cap, sun cap, duck cap, fisherman cap, leifeng cap, Zhongshan cap, octagonal cap all kinds of soft material caps, as well as masks of various materials and so on, the use of this machine can effectively improve the printing quality, improve the printing efficiency.
Advantage:

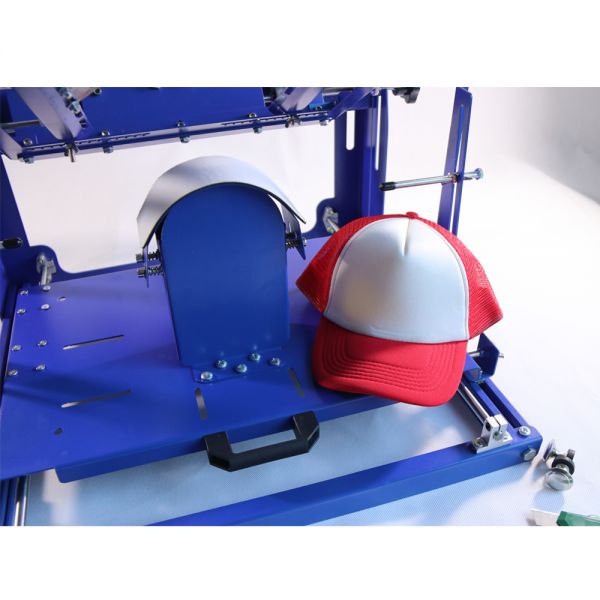

1. Positioning by adjusting the radian of the cap and mask: using the adjustable arc material; adjust the radian of the arc according to the need.

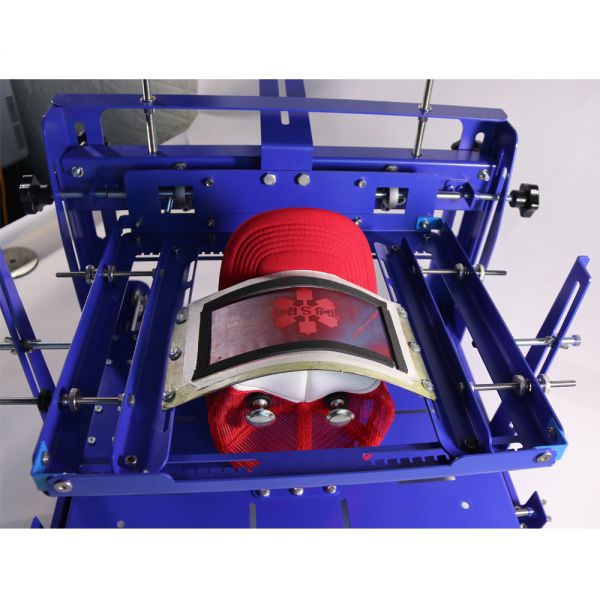

2. The Positioning of cap and mask: place the cap or mask on the tooling, and position the cap and mask on the tooling vertical board by 4-6 magnets on three or four sides; The hat or mask will not move; Take off the hat just take off the magnet, convenient and quick; Easy to set the hat, the hat does not deviate.

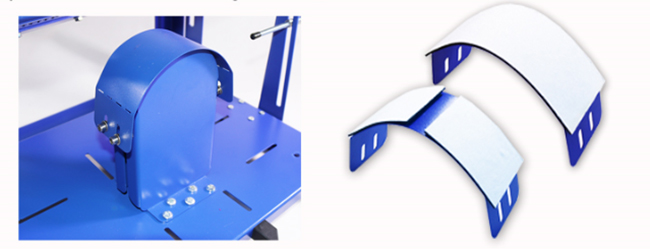

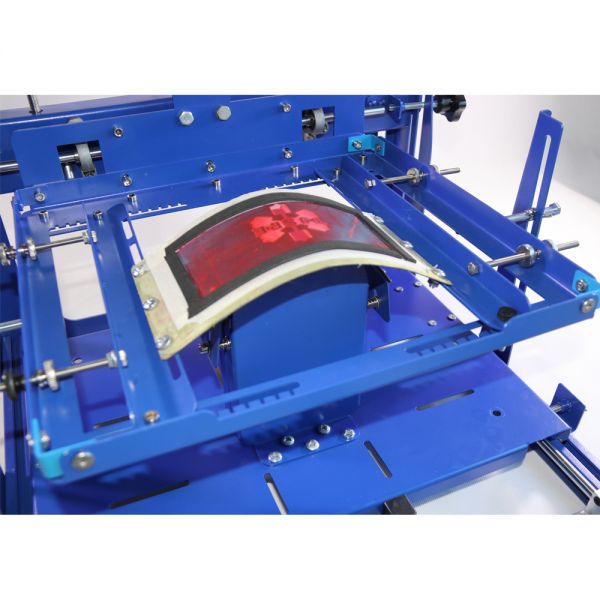

3. Stainless steel cambered plate can be bent a little from left to right in accordance with the arc of the hat; To meet the radian requirements of the cap printing surface, so as to ensure that the screen plate and printing surface arc as parallel as possible, to ensure accurate printing positioning and the quality of printing.
Functions:

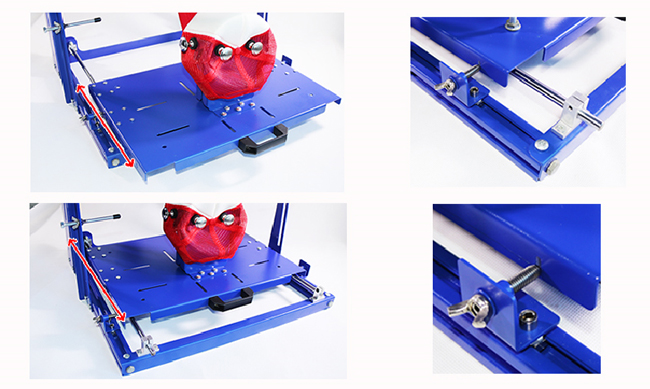

1. The bottom of the machine and the positioning platform can be moved back and forth, and a drag positioning device is set; Drag the platform out, cover with a hat or mask, and the magnet adsorbs to fix, push the machine to print; Pull out the platform, remove the magnet, remove the hat or mask; Pull out and push in can be accurately positioned by positioning ball screws on both sides of the platform.

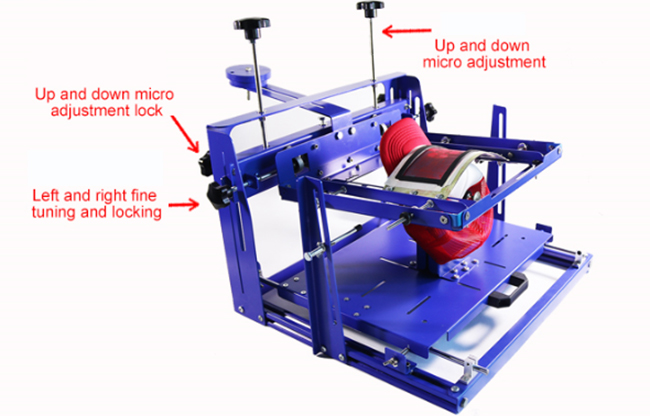

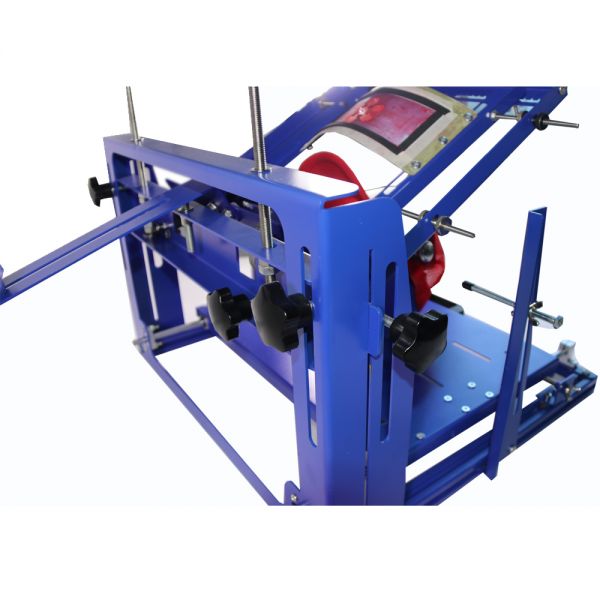

2. The main machine can be micro adjusted by manual knobs from left to right, up and down, up and down can move 6.7"(170 mm); There is with a handle lock; Left and right can adjust 20mm, tighten and lock.

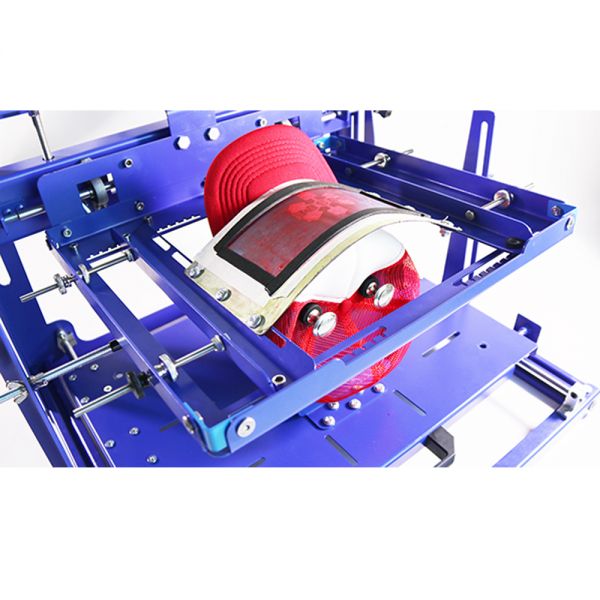

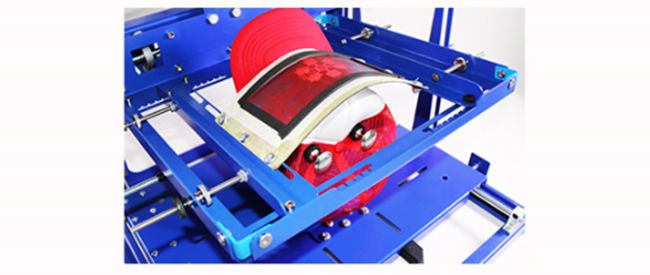

3. The machine adopts 0.04"(1 mm )stainless steel plate, the screen frame directly fixed on both sides of the frame beam; Screen plate can move 5" (130mm) front and rear; Screen plate installation beam can be finished by adjusting the screen radian by hand screw; After adjusting to the same radian as the printing surface, lock the screws at both ends of the two beams.

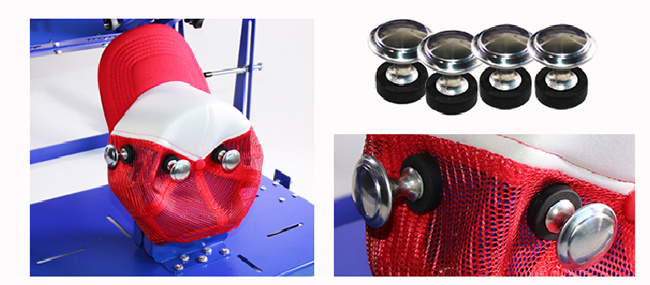

4. The whole magnet is covered with a rubber layer, adsorption force is large, at the same time it will not damage the hat or mask; Magnet with handle, easy to access, fast, labor-saving.
5. The machine is equipped with two flexible stainless steel frames; Inner size is 4"x 7.5" /100 x 190 mm (outer size is 5" x 7.9" /130 x 200 mm); 4" x 9.5"/100 x 240 mm (outer size 5"x 9.8"/130 x 250 mm); Suitable for most kinds of soft hat printing patterns.
6. All parts of the machine are advanced electrostatic spraying surface treatment, corrosion resistance, acid and alkali resistance, cleaning resistance, long - term use without rust.
Usage methods and procedures (for reference only):
1. Drag out the platform, cover the substrate on the tooling and fix it with a magnet.
2. Adjust the screws on both sides of the cambered settings according to the radian of the substrate to achieve the condition that the setting and the cambered surface of the substrate basically coincide;Push the platform into the machine for positioning.
3. Install the screen frame with a blank mesh on the frame rack.
4. Adjust the screen frame radian and cap printing cambered surface basically matched, and basically determine the printing pattern on the screen plate position.
5. Takedown the screen plate and make a plate according to the position of the pattern.
6. In order to prevent ink overflow, the screen plate around can be affixed with a sealing strip.
7. Install the finished screen plate and adjust it to the appropriate position, Install the fixed screws on both sides of the screen plate to lock and print.

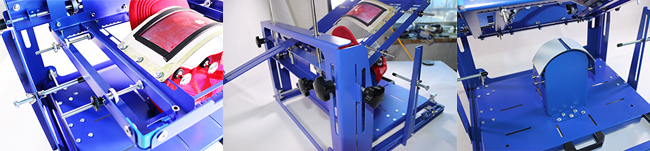

Details:

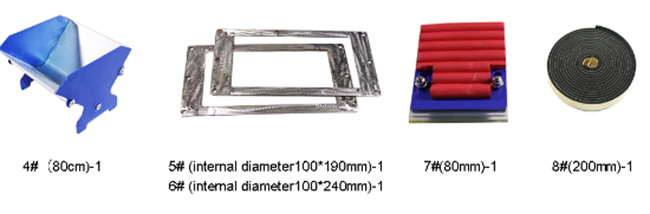

Configured with relevant tools and materials:
1.1 piece 8 cm scoop coater
2. One for each of the two stainless steel cambered screen plates
3. 1 piece 8cm metal scraper (including rubber strip)
4.1 roll screen plate edge sealing tape
Package:
Gross weight: 68.9 lb /31.3kg
Packing size: 25.6 x 22.5 x 20.9 inch /65 x 57 x 53 cm
