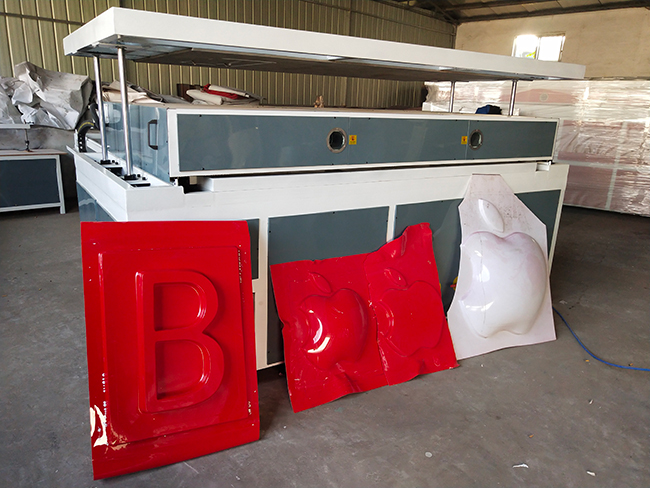

1.3x1.3m Acrylic Vacuum Forming Machine with Blow Press Suck Functions
Features:
1.Customized heaters from factory which can run 24hours continuously, service life up to 8000-10000 hours, the working temperature difference is±5 degrees, which can ensure even softening temperature of plate.
2.Intelligent temperature control, heating box use the shaped reflector and thickened insulation layer, heating fast and with good insulation and safety performance.
3.Material heats, softens the acrylic to your shape in one time, no need to swift material. The machine automatically heats and softens the acrylic to your specified temperature, then engages the pump at the correct temperature and creates the mold all in 1 process.
Specification:
Model: SPB1313
Function: Suction, Press and Blow
Max Forming Height: 200mm
Working Area(mm): 1300*1300mm
Maximum size of acrylic: 1200x1200mm
Power: 10KW/50A
Cover Open Mode: Hand-Push Sliding
Voltage: 380V 3-Phase(Default)/220V 2-Phase On Option
HZ: 50-60HZ
Pressure: Top-Press: 3T Bottom Puss: 3T
Vacuum Pump: Model 40
Clamp: Adjustable
Temperature Set: Automatic
Machine Size: 2000*3400*1900mm
Weight: 750KG
Packing Size: 2100*1800*1700mm
Packing Weight: 800KGS
Application Material: Acrylic, ABS, PS Board, PVC, etc.
Remark:
The air pump is not included, please prepare it by yourself.The air pump should be 3KW.
Details:
Application Material: Acrylic, ABS, PS Board, PVC, etc.
Application Industry:
1.Advertising Industry, Signage, Logo, Sign Box, Channel Letter, etc.
2.Food and beverage industry, like plastic food box, crisper, Cake&Snack Box, etc
3.Horticulture Industry, like plastic flowerpot.
4.Plastic Packaging Industry, like toys package, stationery package, gifts, hardware, home appliances, bags, high-class cosmetics packages and wine, plastic flocking box etc.
5.Medical Industry: pill and tablet package.
6.Decorative and decorating: plastic ceiling, auto materials, bath tub, etc.
