ZD350U Dual Head Servo Motor Cutting Machine Suitable for all kinds of Self-adhesive Stickers Copperplate Paper Box and Paper Cards
单件价格
COP 12,996,444
/set
批量折扣
数量
折扣
单价
1
0%
COP 12,996,444
总费用
COP 12,996,444
数量
/set
1

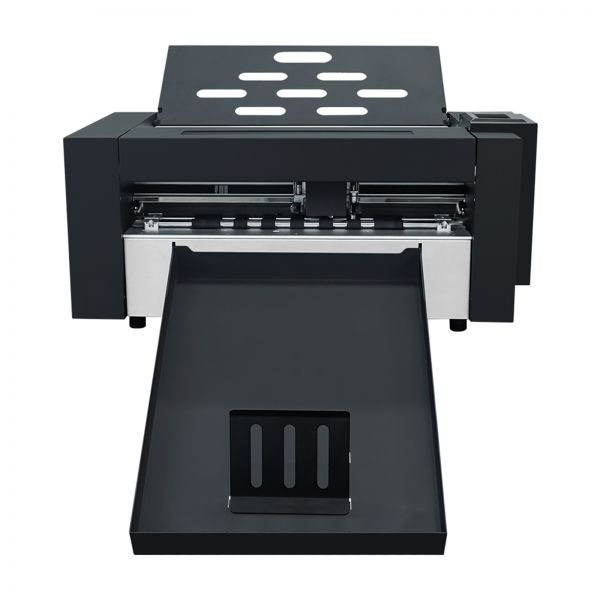

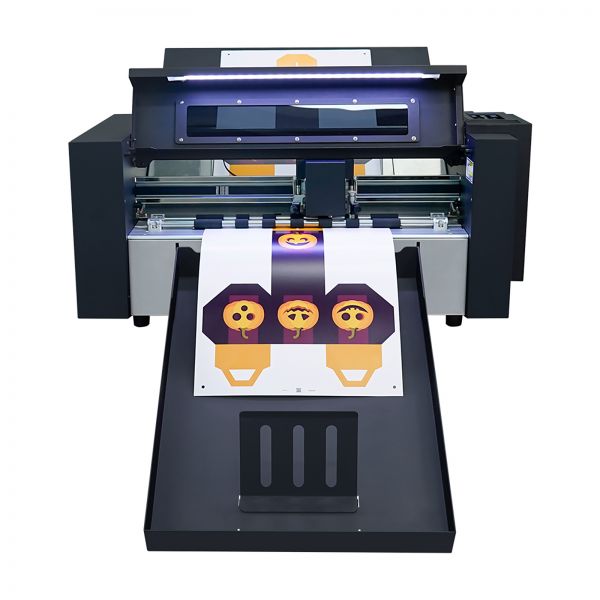

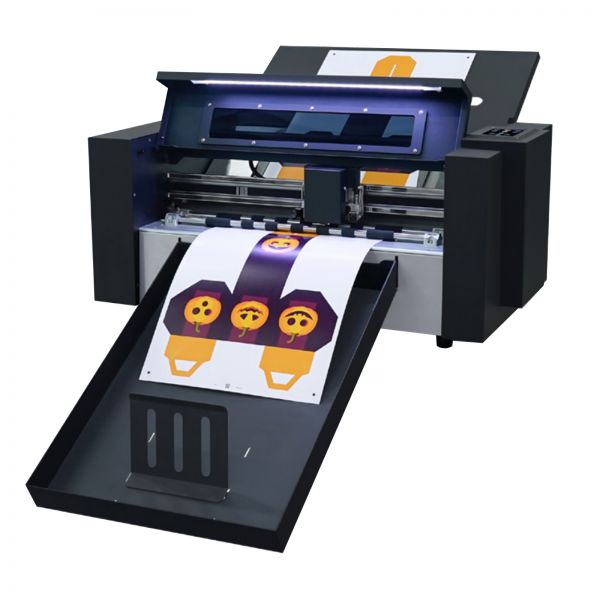

ZD350U Dual Head Servo Motor Cutting Machine Suitable for all kinds of self-adhesive stickers Copperplate paper box and paper cards
Features:
1.One key calibration machine offset value, save time proofreading machine, save paper.
2.Voice coil cutting system ensures stable and fast cutting, greatly improving productivity.

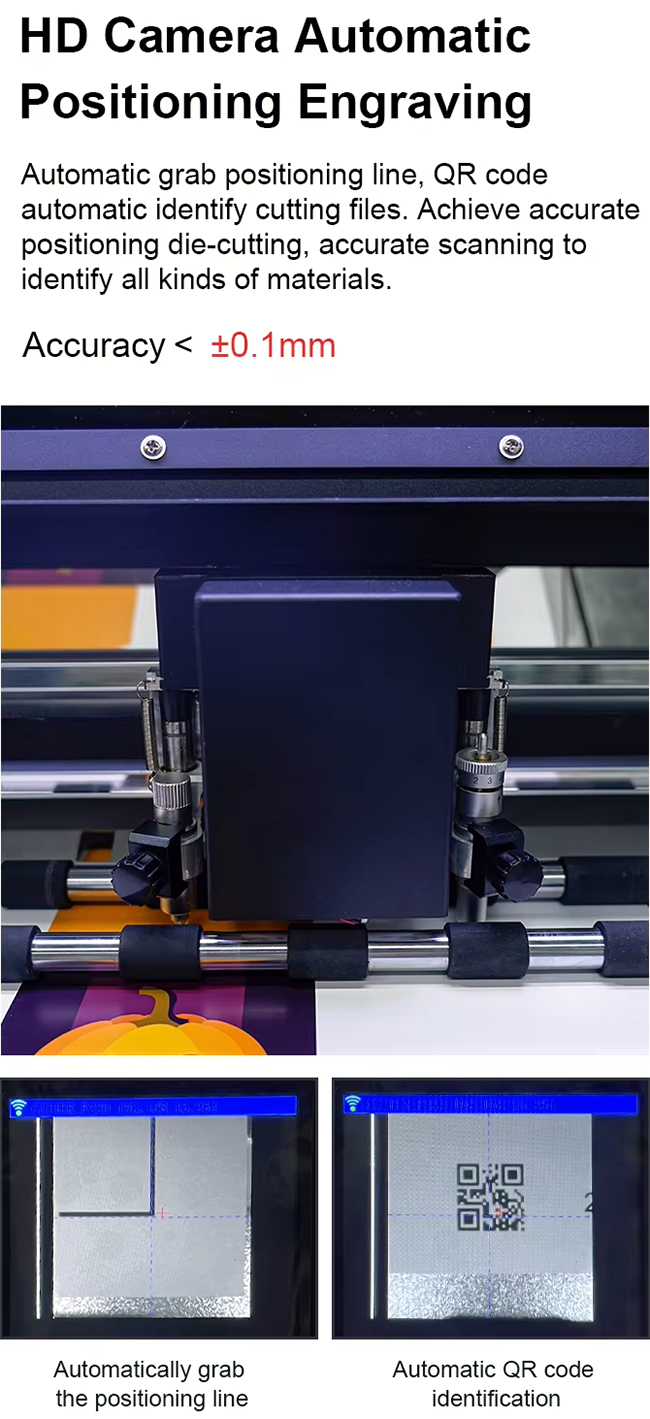

3.Quickly detect reference mark positioning and cutting patterns with the camera.

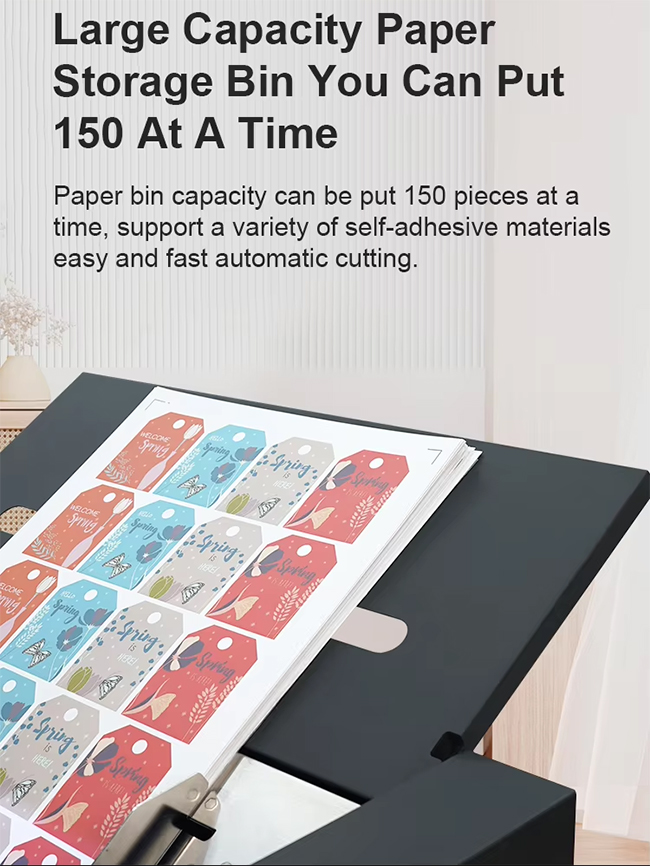

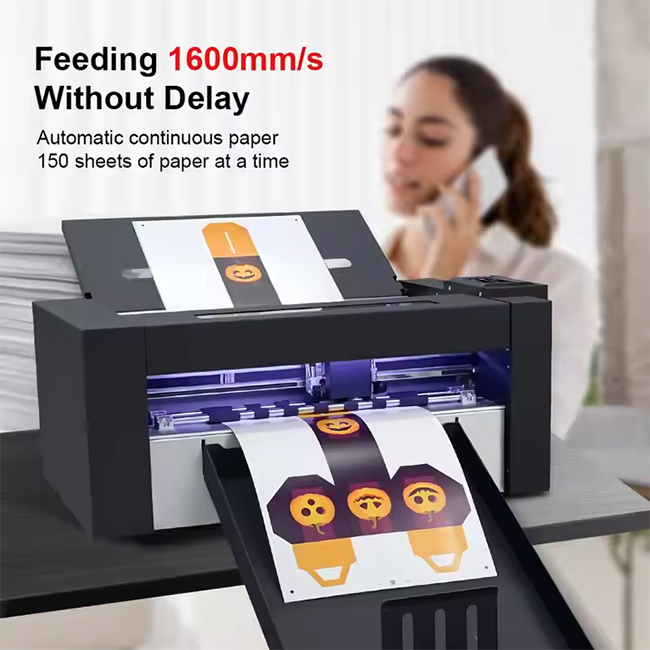

4.Automatic feeding system, save time and labor.

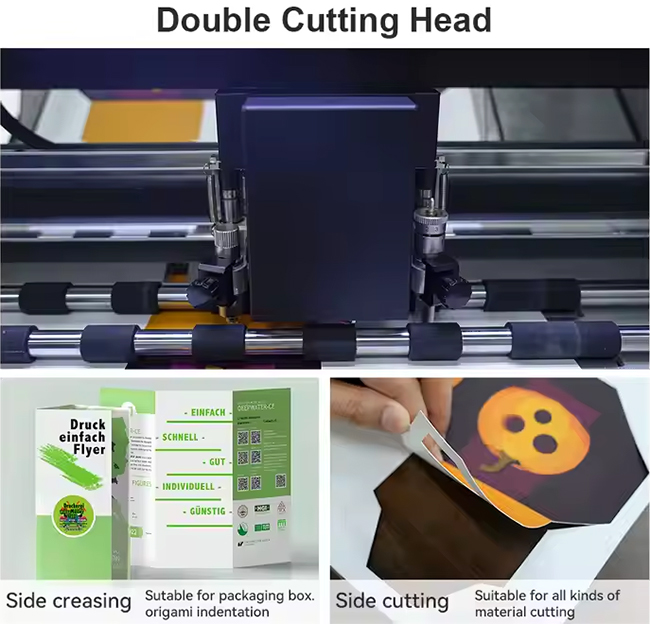

5.The two cutter heads work simultaneously, while indentation and cutting.
Specification:
| Model | ZD350U |
| Maximum media width | 360mm |
| Max cutting width | 350mm |
| Auto feeding quantity | 150PCS |
| Motor | Servo |
| Positioning mode | CCD camera |

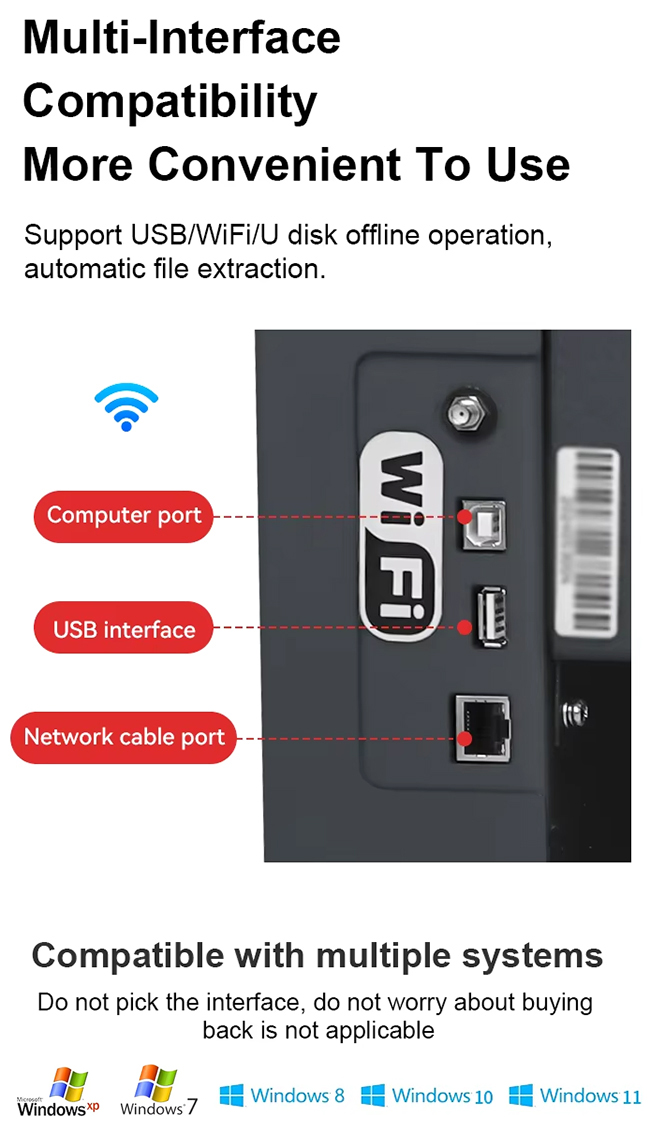

| Interface | U-disk/USB/WIF/LAN |
| Power | <100W |
| Maximum standby speed | 1600mm/s |
| Maximum cut speed | 1600mm/s |
| Max cutting thickness | 350g |
| Force | 2000g |
| Accuracy | ±0.1mm |
| Repeat &postioning accuracy | ±0.082mm |
| Power supply (V/A) | 220V 50A |
| Working environment | 5°C-35°C |
| Cuttable material | All kinds of self-adhesive labels, printing graphics, etc. |

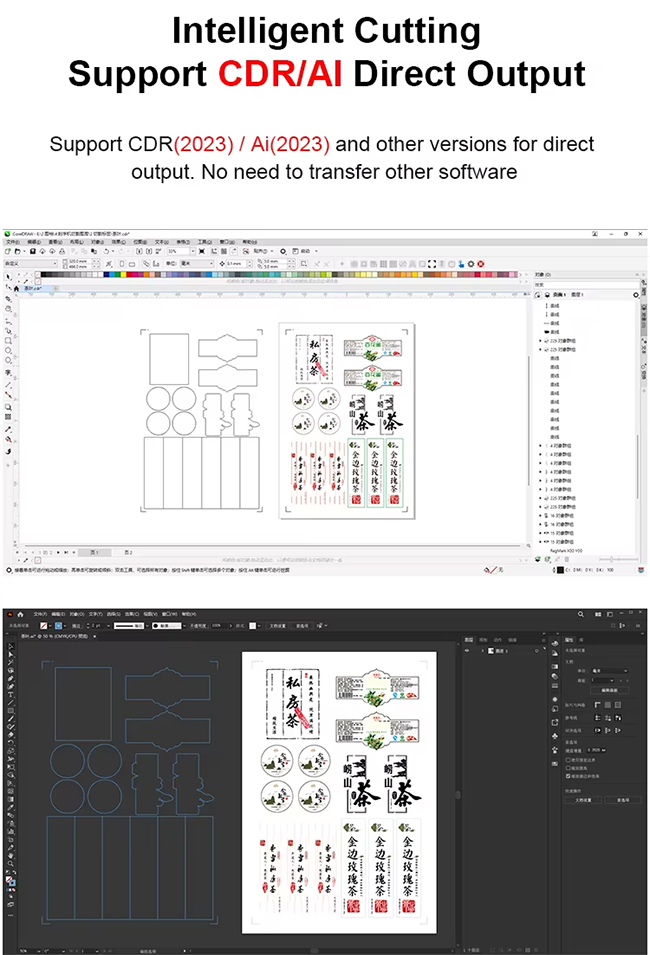

| OS/Software | Windows XP 7/8/10/11 CorelDRAW/AI Plug-in Camera Cut Contour edge patrol software |
| Product size | 770*455*350 (mm) |
| Packing size | 870*550*570 (mm) |
Application:
