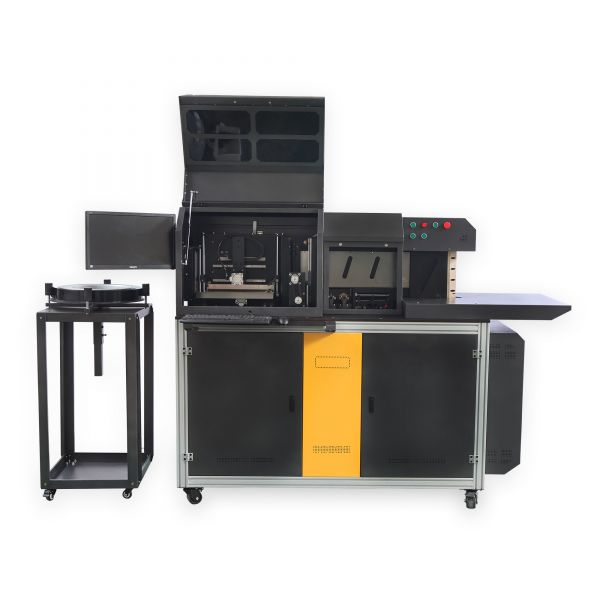

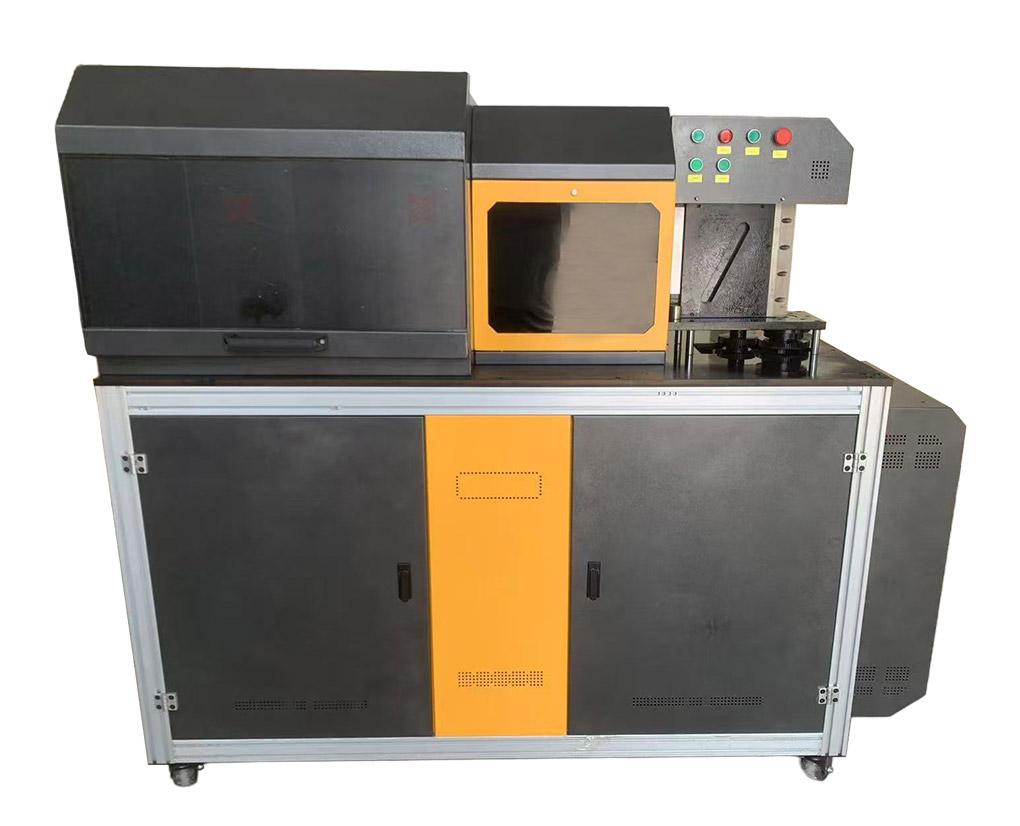

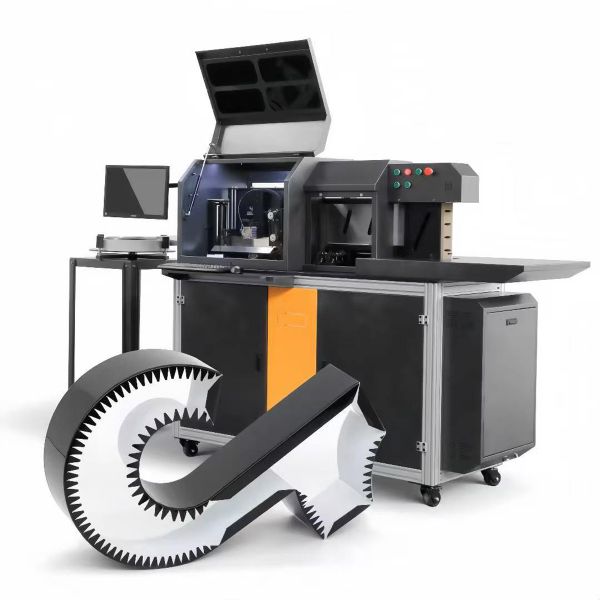

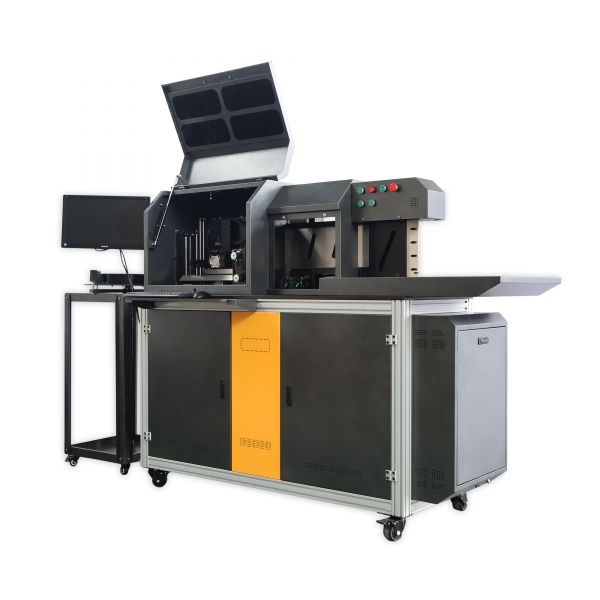

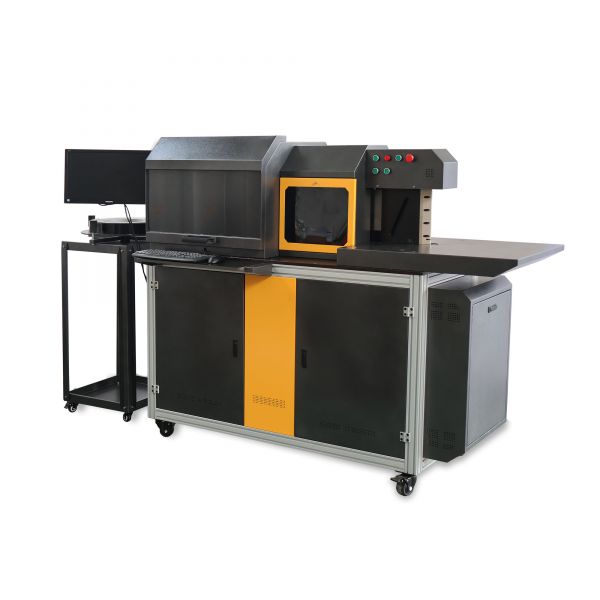

Multifunction Automatic CNC Metal Channel Letter Notching Flanging Bending Machine
单件价格
COP 93,922,798
/件
批量折扣
数量
折扣
单价
1
0%
COP 93,922,798
总费用
COP 93,922,798
数量
/件
1
春节快乐！
我们将在 2 月 1 日至 8 日期间休假，并将于2 月 9 日恢复办公。
Multifunction Automatic CNC Metal Channel Letter Notching Flanging Bending Machine
单件价格
COP 93,922,798
/件
批量折扣
数量
折扣
单价
1
0%
COP 93,922,798
总费用
COP 93,922,798
数量
/件
1
Remark:
The air pump and computer is not included, please prepare it by yourself.The air pump should be above 0.6Mpa and computer should be WIN7 WIN10 32-bit/64-bit with PCI slot, But win7 is better
Features:

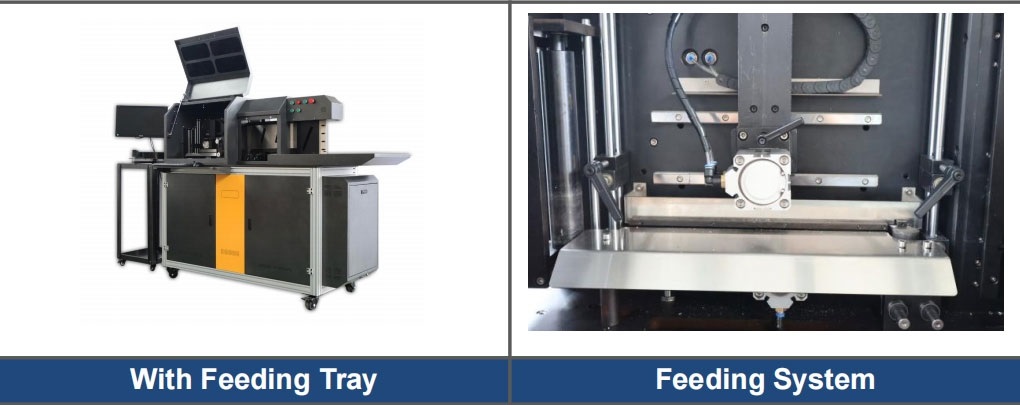

1. Feeding system:Precision screw transmission and mechanical arm alternatively feeding structure (closed loop self-test system)

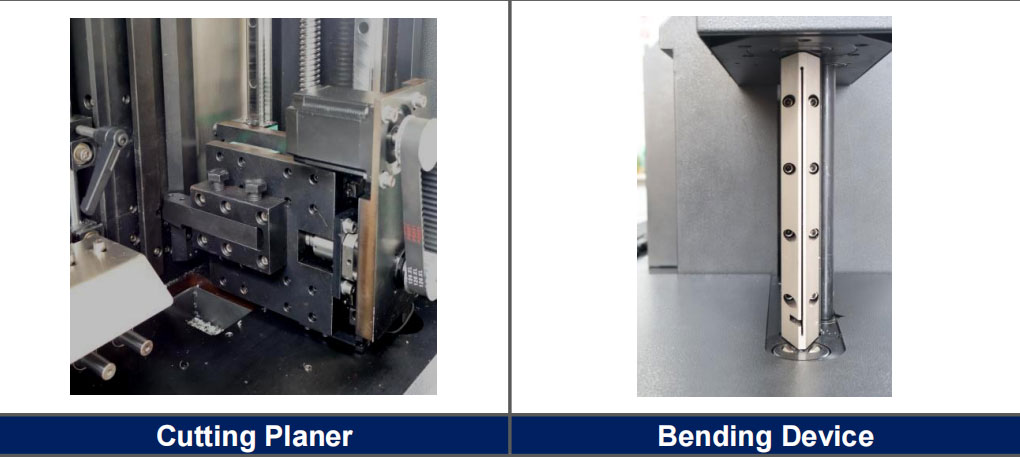

2. Slotting system:Hard alloy planer

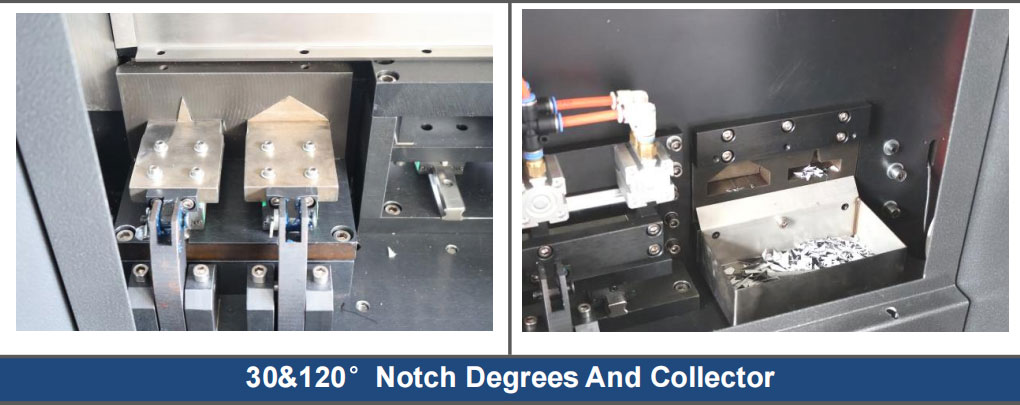

3. Notching structure:Notching by air cylinder

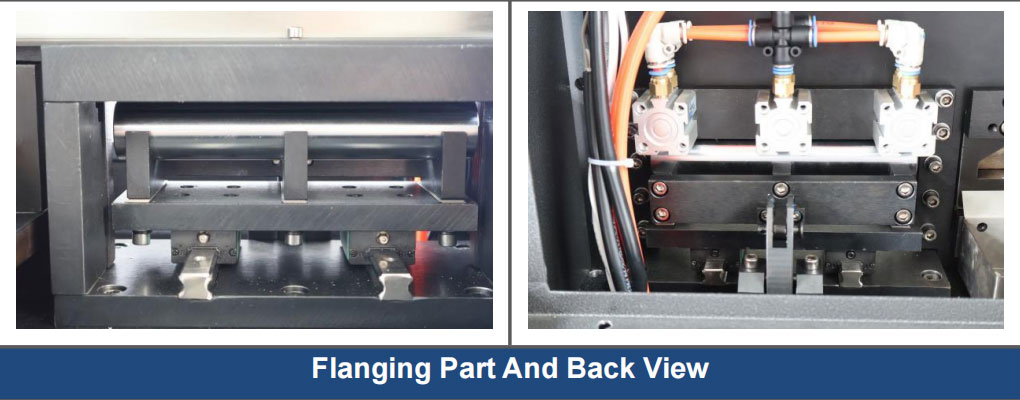

4. Flanging structure:Pneumatic flanging by air cylinder
5. Bending system:Double -pole alternate part-arc institution and patented alternative arc-extrusion structure
6. Driving motor:Servo motor 3 set; stepper motor 1 set

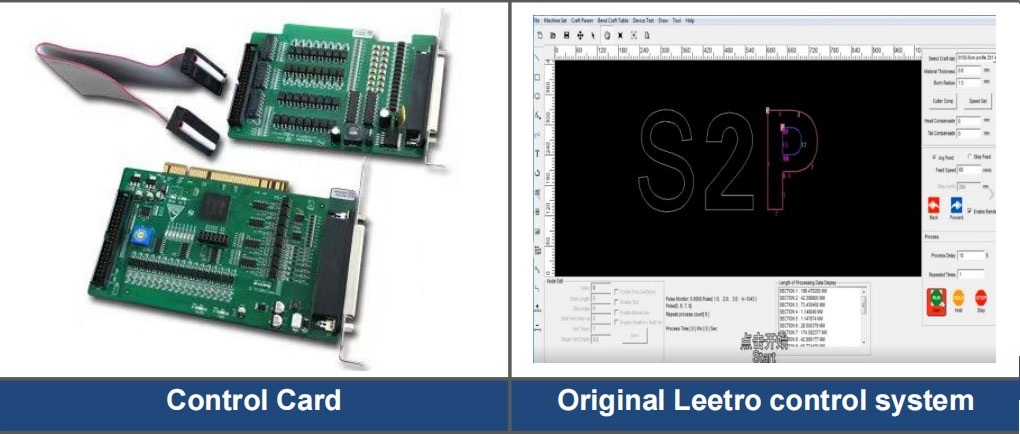

7. Software Control card Leetro Four -axis motion control card
8. Software system Auto drive / CBS4 auto bending system
9. Input voltage 220V 50Hz/60Hz 1P 4Kw
10. Air pressure 0.6-0.8Mpa
Application:

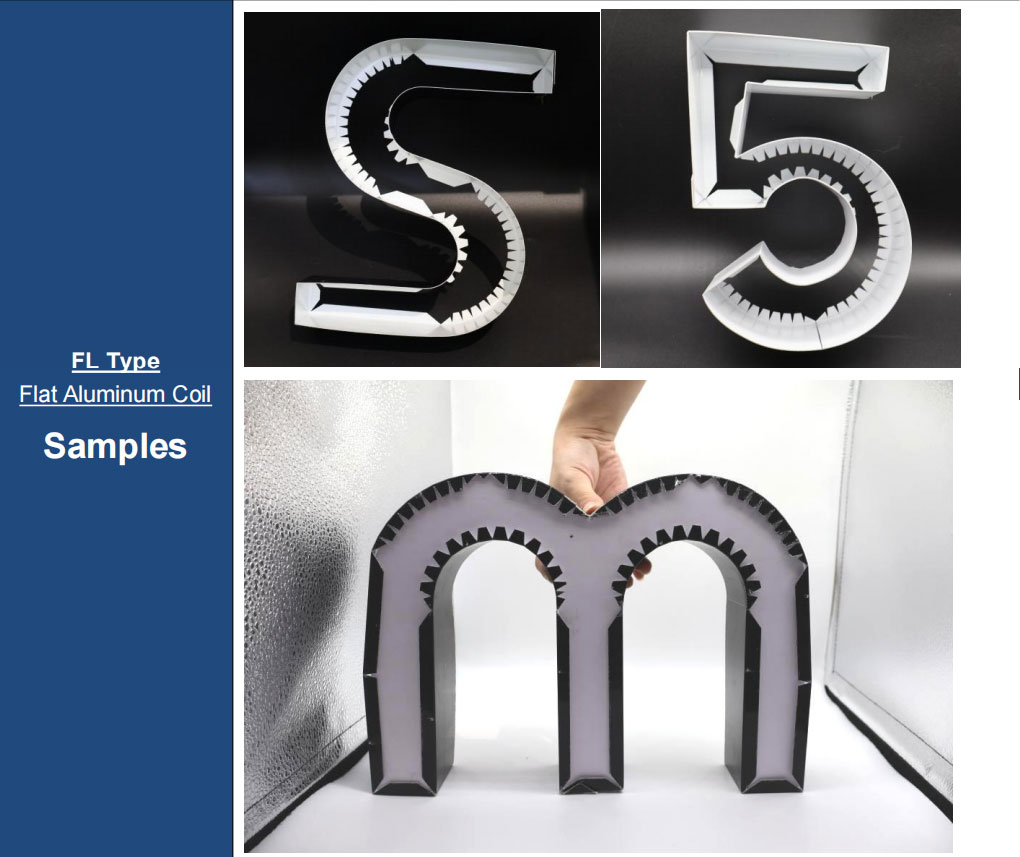

Industry: It is a fully automatic channel letter fabrication machine in sign making industry. Applicable in Channel Letters, Signboard, Resin Signs, Sign Box, etc.

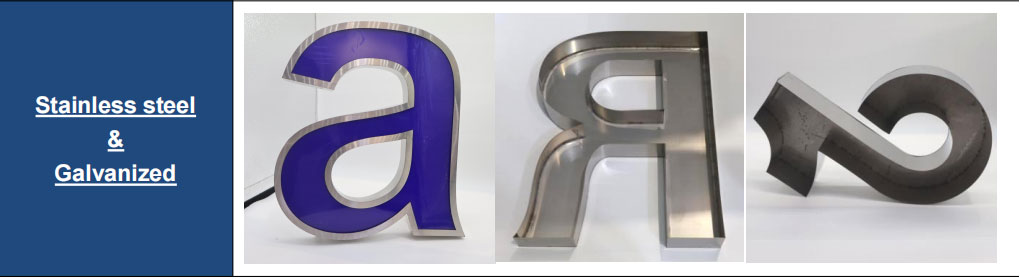

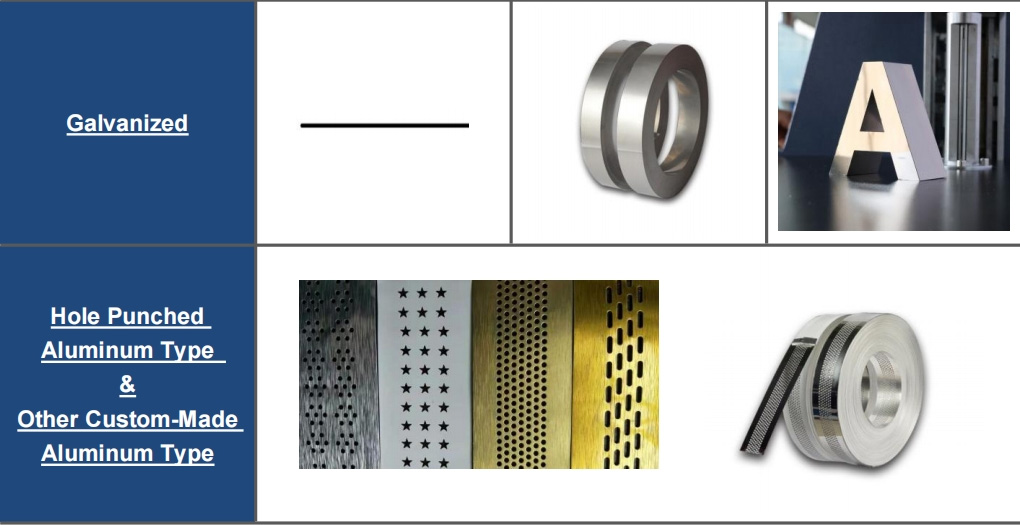

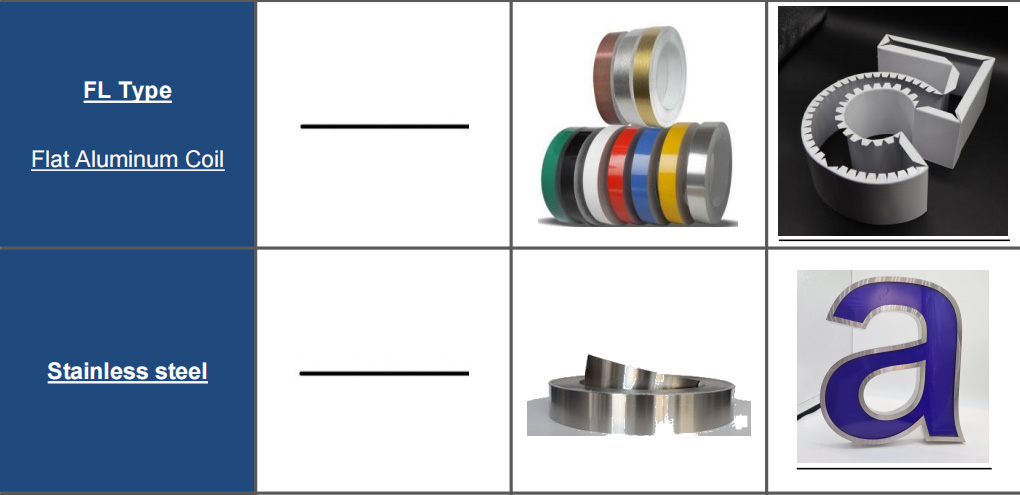

Materials: Flat Aluminum Coil,Stainless steel, galvanized plate
