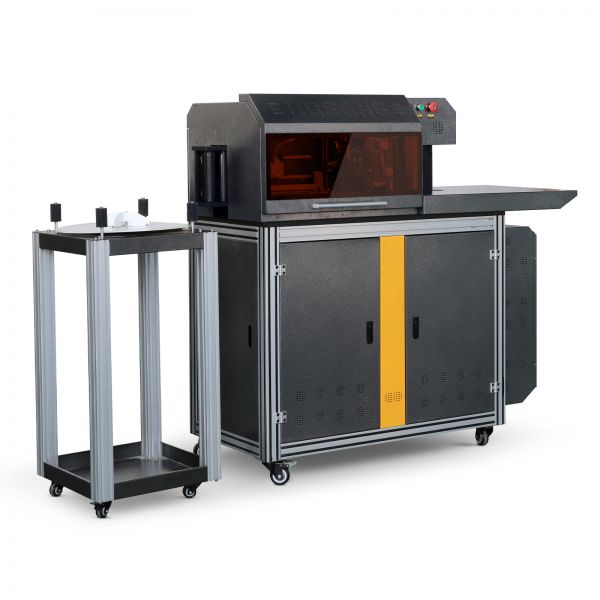

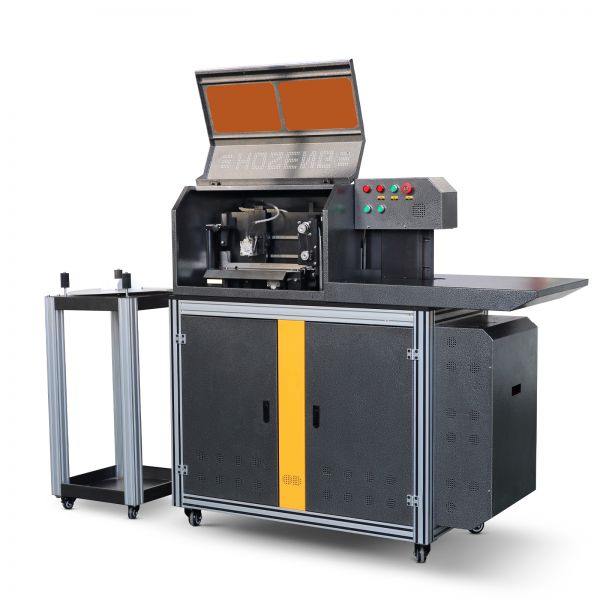

Automatic CNC Super Channel Letter Bender-All In One for Aluminum, SS, Copper, Iron
单件价格
COP 44,794,617
/件
批量折扣
数量
折扣
单价
1
0%
COP 44,794,617
总费用
COP 44,794,617
数量
/件
1
Remark:
Advantage:
Features
1.Feeding section, manipulator clamping alternating feeding way
2.Sloting section, equipped with a key switch type double cutting system
3.Bending parts, high-speed expansion shaft bending, curved shape degree can reach 90%.
4.Feeding closed-loop control, to interact with the encoder testing institutions, feeding error compensation.
5.Intelligent shift, the software automatically generate corresponding to cooperate the contour offset mode.
6.Cutting tool compensation, the software will automatically perfect coordination of numerical calculation and cutting panel, without user adjust the original file.
Specifications
1. Feeding System: Circulation Clamp Feeding System
2. Slotting System: Planner Slotting System
3. Bending System: Double Bending Shaft Alternate Bending System
5. Material Thickness: ≤1.5mm
7. Accuracy: ±0.1mm
8. File Format: PLT, DXF, AI
9. Voltage: 220V/50HZ
10. Air Pressure: 0.6 Mpa
11. Power: ≤3.5KW
12. Software: Leetro Software CBS4
13. Machine Size: 1880*820*1650mm
14. Weight: 550kgs
Machine Details:

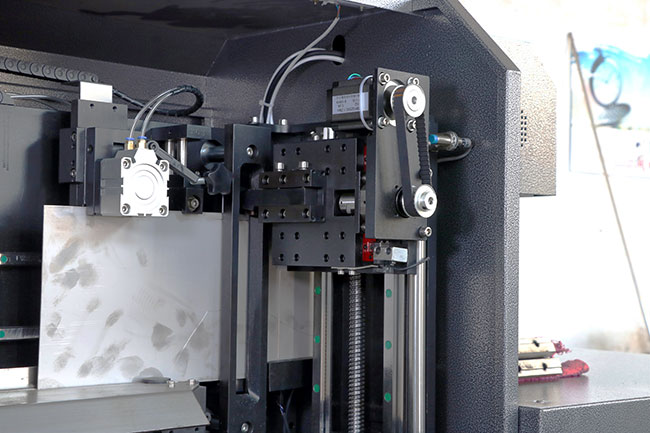

1. Feeding Part:
(1)Alternating feed clamping mechanism, accurate feeding, no indentation on the material surface.

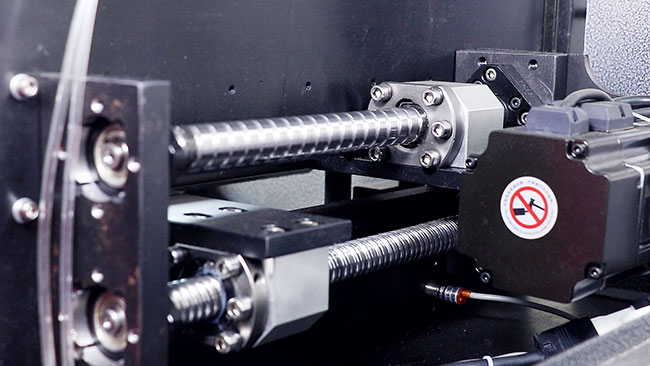

(2)The double ball screw of feeding design ensure the feeding speed and precision as well as stability

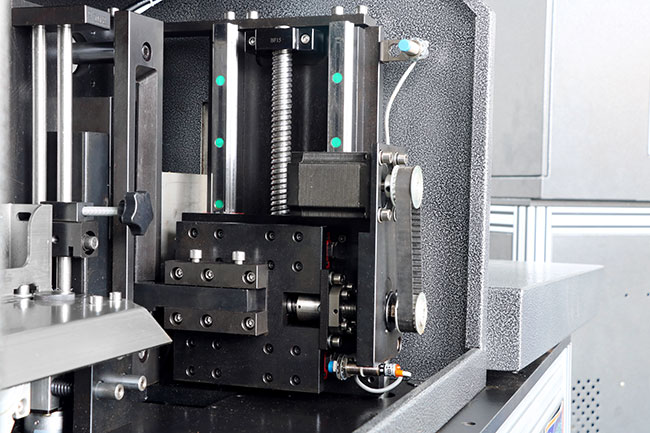

2. Slotting Part
Slotting method adopts high-precision guide rail & ball screw system, super-hard white steel blade slotting method, low cost and good effect.
3. Encoder
The encoder module is the key component of the the relation equipment
precision , and the precision casting is used to ensure the performance of the high precision encoder.

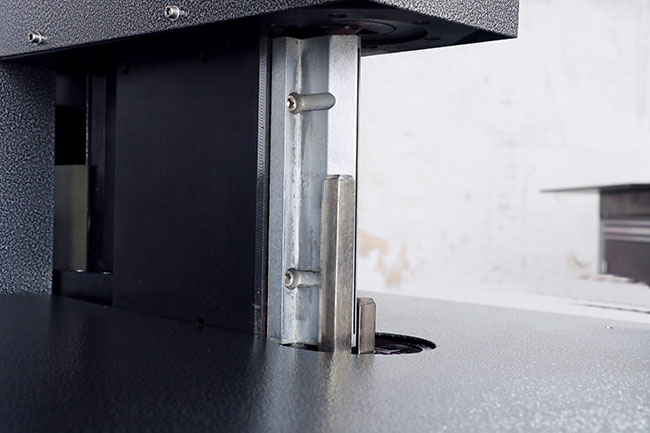

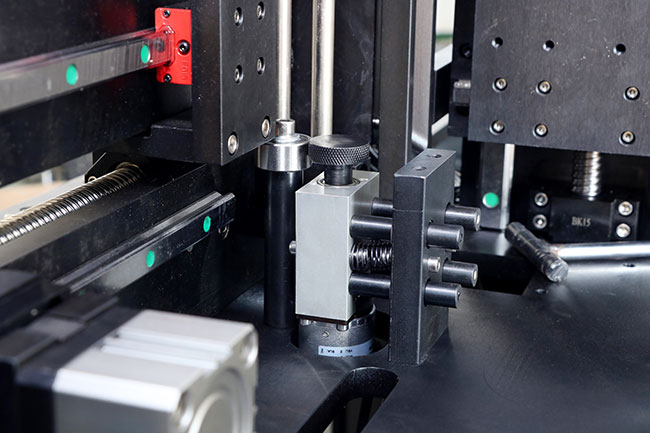

4. Bending Device:
The bending system uses a high-precision servo acceleration and deceleration system, which effectively solves the phenomenon of stainless steel bending and not moving
